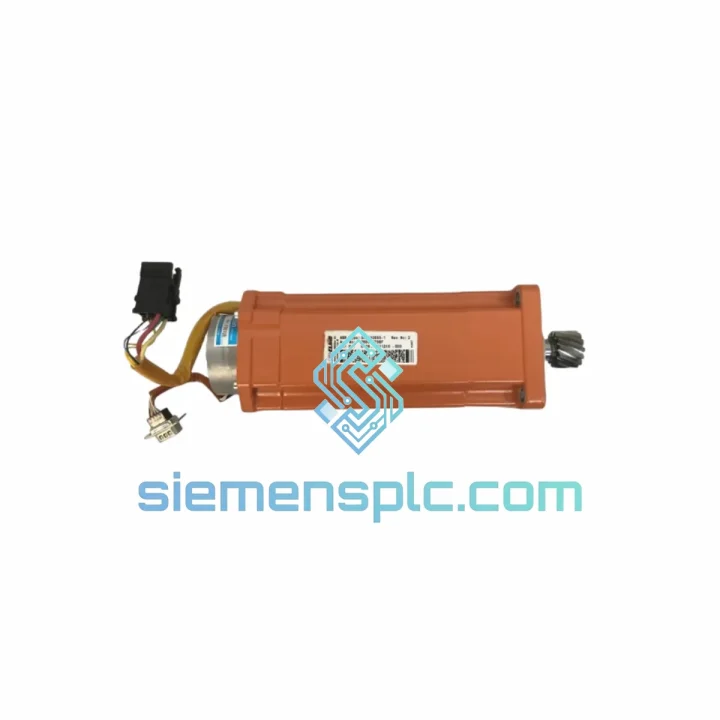

ABB 3HAC029864-001 AC Servo Motor – IRB Robot Series

ABB 3HAC029864-001 Motor M30 Type B — Precision Joint Drive for IRB Series Industrial Robots

The ABB 3HAC029864-001 is a factory-designated AC servo motor classified under the M30 Type B mechanical frame standard, engineered specifically for joint-axis drive applications within ABB’s IRB articulated robot platform. Cross-referenced as 3HAC157540-004 and 3HAC17330-1, this motor occupies a critical position in the robot’s kinematic chain — converting drive amplifier output into precise angular displacement at the joint level. Its role is not peripheral: in a six-axis IRB arm, the servo motor at each joint is the terminal actuator that determines positioning repeatability, path accuracy, and cycle-time consistency across the entire production cell.

Unlike general-purpose servo motors adapted for robotics, the 3HAC029864-001 is designed from the ground up to ABB’s internal mechanical and electrical interface specifications. The motor’s mounting flange geometry, shaft tolerances, encoder connector pinout, and thermal dissipation profile are all matched to the IRB gearbox and drive electronics without requiring field adaptation. This direct OEM compatibility eliminates the alignment errors and connector rework that arise when non-OEM replacements are used, and it preserves the robot controller’s closed-loop tuning parameters without recalibration.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The M30 Type B designation within ABB’s internal motor classification system refers to a specific combination of stator stack length, rotor pole count, and winding configuration that targets a defined torque-speed operating envelope. In the context of IRB joint drives, the motor must sustain peak torque during acceleration transients while maintaining thermal stability across continuous-duty cycles — a requirement that places simultaneous demands on the magnetic circuit design and the winding thermal path.

The stator winding of the 3HAC029864-001 uses a distributed lap configuration, which reduces harmonic content in the back-EMF waveform compared to concentrated windings. Lower harmonic distortion translates directly to smoother torque output at low speeds — a measurable advantage during precision path interpolation where the robot operates at reduced velocity near singularity points or during fine-positioning moves.

The rotor assembly uses high-energy rare-earth permanent magnets (NdFeB grade) bonded to a laminated core. The lamination stack minimizes eddy-current losses at the switching frequencies generated by the IRC5 drive amplifier (typically 4–8 kHz PWM carrier), which keeps rotor temperature rise within the Class F insulation margin even under sustained high-duty-cycle operation. The shaft is ground to h6 tolerance, ensuring interference-fit engagement with the gearbox input without fretting corrosion over service life.

The encoder interface is designed for direct connection to ABB’s Serial Measurement Board (SMB, 3HAC14550-1). The SMB aggregates position data from all six joint motors over a single serial bus and transmits it to the IRC5 main computer. The absolute multi-turn encoder eliminates the need for homing routines after power loss — the robot resumes from its last known joint position without a calibration cycle, reducing restart time in production environments where unplanned stops occur.

From an EMC standpoint, the motor housing provides a continuous conductive shield around the stator assembly. The encoder cable shield is terminated at the motor connector shell, creating a low-impedance return path for common-mode noise generated by the drive’s PWM output. This shielding architecture is consistent with ABB’s system-level EMC compliance testing under EN 61000-6-2 (industrial immunity) and EN 61000-6-4 (industrial emissions), ensuring that motor replacement does not invalidate the robot’s CE marking.

System Integration Benefits

• Zero-recalibration replacement: The absolute encoder retains joint position data across power cycles, allowing direct swap without running ABB’s fine calibration procedure in most maintenance scenarios — reducing robot downtime from hours to under 30 minutes.
• Preserved IRC5 drive tuning: Because the motor’s electrical parameters (Ke, Ld, Lq, Rs) match the original OEM specification, the IRC5 drive amplifier’s current-loop and velocity-loop gains remain valid after replacement, eliminating the need for drive recommissioning.
• Deterministic torque response: The PMSM topology with field-oriented control (FOC) in the IRC5 delivers torque response times under 1 ms, supporting the robot’s real-time path planner without introducing latency at the actuator level.
• Thermal headroom for high-duty cycles: Class F insulation rated to 155°C provides a substantial margin above the motor’s continuous operating temperature, extending winding life in applications with short cycle times and minimal idle periods.
• Diagnostic transparency via SMB: The SMB continuously monitors encoder signal integrity and reports resolver/encoder faults to the IRC5 event log with specific error codes (e.g., 50052, 50054), enabling maintenance teams to distinguish motor faults from cable or SMB faults without disassembly.
• Mechanical interchangeability: The M30 Type B flange and shaft geometry are dimensionally identical to the original, ensuring correct gearbox preload and bearing alignment without shimming or machining.
• Reduced spare-parts complexity: The 3HAC029864-001 covers multiple IRB models and axis positions (verify axis compatibility), allowing maintenance departments to consolidate spare-motor inventory rather than stocking separate part numbers per robot model.
• Compliance with ABB’s predictive maintenance framework: When used with ABB Ability™ Connected Services, the motor’s operating hours and thermal history logged by the IRC5 remain continuous across replacements, preserving the predictive maintenance baseline without data reset.

Quality Assurance & Global Logistics

Every unit of the ABB 3HAC029864-001 supplied through siemensplc.com is sourced from ABB-authorized distribution channels or verified OEM surplus with full traceability documentation. Prior to dispatch, each motor undergoes a structured inspection protocol: visual examination of the housing, shaft, and connector for transport damage; insulation resistance measurement between winding phases and frame (minimum 100 MΩ at 500 VDC); encoder connector pin-out verification against ABB’s wiring diagram; and serial number cross-check against ABB’s part database to confirm the unit has not been reported as counterfeit or recalled.

Packaging follows ABB’s original anti-static and mechanical protection standards. Motors are shipped in foam-lined cartons with desiccant packs to prevent moisture ingress during transit — a critical precaution for encoder electronics sensitive to condensation.

Logistics operations are managed from Xiamen, China, with access to DHL Express, FedEx International Priority, and UPS Worldwide Expedited services. In-stock units ship within 1–2 business days of order confirmation. Full export documentation — commercial invoice, packing list, certificate of origin, and HS code declaration (HS 8501.52 for AC servo motors) — is prepared for each shipment to support customs clearance in the EU, USA, Southeast Asia, Middle East, and other major markets. Bulk orders can be consolidated for sea freight with LCL or FCL options depending on volume.

A 12-month warranty covers all supplied units against manufacturing defects and premature failure under normal operating conditions. Warranty claims are processed with replacement dispatch within 5 business days of fault confirmation.
