ABB 3HAC031683-001 AC Servo Motor – IRB7600 Series

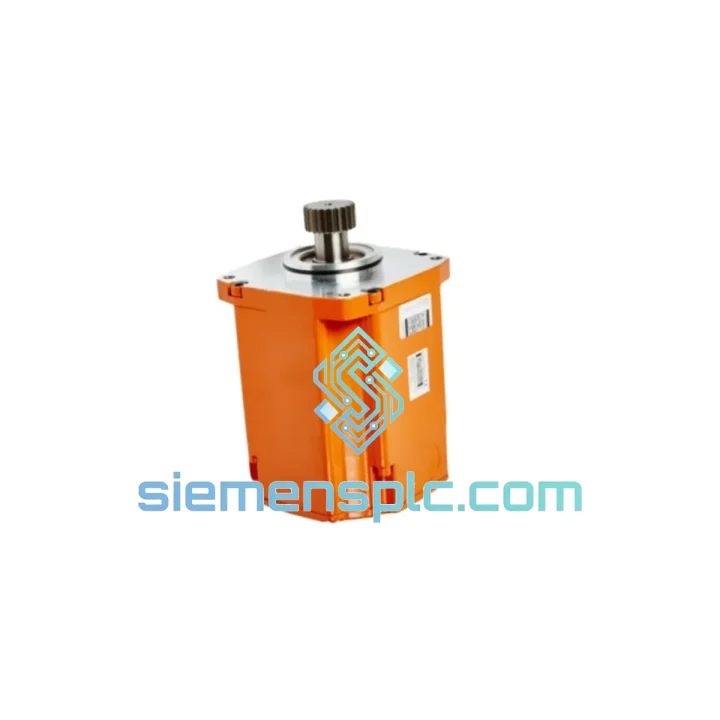

ABB 3HAC031683-001 — M2 Axis AC Servo Motor for IRB7600 Heavy-Payload Robots

The ABB 3HAC031683-001 is the OEM-designated rotational AC servo motor assigned to Axis 2 (M2) of the IRB7600 robot family — ABB’s highest-payload articulated arm platform, rated from 150 kg to 500 kg at the wrist. Axis 2 governs the primary arm elevation sweep, the kinematic joint with the highest static torque demand in the entire manipulator chain. This motor is not a generic servo unit; it is a purpose-engineered drive element whose mechanical interface, encoder protocol, and thermal class are matched to the IRB7600 structural frame and the IRC5 motion controller’s axis-specific firmware parameters.

In continuous-duty production environments — automotive body-in-white lines, heavy press tending, foundry extraction, and large-format palletizing — Axis 2 operates under sustained radial and axial load profiles that exceed those of any other joint in the kinematic chain. The 3HAC031683-001 is designed to maintain positional repeatability within ±0.05 mm under these conditions across multi-shift production schedules.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 3HAC031683-001 operates within a closed-loop torque-control architecture managed by the DSQC679 axis drive module. The drive receives velocity and torque set-points from the IRC5 motion computer via the internal robot controller bus (SREA board → axis computer → DSQC679), executing field-oriented control (FOC) at a current-loop update rate of approximately 4 kHz. This ensures that transient torque disturbances — such as those generated by sudden payload shifts during press-tending cycles — are corrected within a single servo scan cycle without propagating position error to the TCP.

Electromagnetic Compatibility (EMC) Design: The motor windings are wound with a distributed lap configuration that minimizes cogging torque harmonics, reducing torque ripple to levels below the IRC5 position-loop noise floor. The motor housing is constructed from die-cast aluminium with a continuous conductive shield path to the robot arm structure, providing a low-impedance ground return that suppresses common-mode noise injection into the encoder signal lines. This is particularly relevant in welding cells where high-frequency inverter switching from welding power sources generates broadband EMI in the 150 kHz–30 MHz range.

Thermal Management Architecture: The stator winding uses Class F insulation (rated to 155°C), while the integrated PTC thermistor provides a continuous temperature signal to the IRC5 axis board. The IRC5 firmware implements a two-stage thermal derating algorithm: at 130°C winding temperature, peak torque is reduced by 15%; at 145°C, the axis is brought to a controlled stop with fault code 38304. This prevents insulation degradation without triggering an uncontrolled e-stop that could damage tooling or workpieces.

Encoder Signal Integrity: The resolver-based feedback system used in the 3HAC031683-001 is inherently immune to the power supply noise that affects incremental optical encoders. The resolver outputs a continuous sinusoidal signal pair (sin/cos) that the IRC5 resolver-to-digital converter (RDC) samples at 16-bit resolution, yielding an effective angular resolution of approximately 0.005° per count. This resolution is maintained across the full operating temperature range without the thermal drift that affects optical encoder disc expansion.

Mechanical Interface Precision: The motor shaft and flange are machined to ABB’s internal tolerance class, with a shaft runout specification of ≤0.01 mm TIR. This ensures that the motor-to-gearbox coupling (mating with the 3HAC17484-2 gearbox unit) maintains the backlash specification of the IRB7600 Axis 2 joint across the full service life of the gearbox.

System Integration Benefits

• Zero re-parameterization on IRC5: The 3HAC031683-001 carries factory-matched motor data parameters (motor type file) that are pre-loaded in the IRC5 system software for the IRB7600. Replacement requires only a revolution counter update (SMB reset), not a full motor calibration sequence, reducing commissioning time from hours to under 30 minutes.
• Direct mechanical drop-in: Identical bolt pattern, shaft diameter, and keyway geometry to all IRB7600 production variants manufactured from 2004 onward. No adapter plates, shimming, or machining required at the installation site.
• DSQC679 drive pre-matching: The motor’s electrical parameters (back-EMF constant, winding resistance, inductance) are within the DSQC679’s auto-tuning capture range, enabling the drive to complete current-loop auto-tuning in a single power cycle without manual parameter entry.
• SafeMove / SIS compatibility: The resolver feedback signal is routed to both the DSQC679 and the IRC5 safety board (DSQC400/DSQC643), enabling dual-channel position monitoring required for ABB SafeMove speed and position supervision functions. Replacement with a non-OEM motor that lacks this dual-routing capability would disable SafeMove certification.
• Predictive maintenance integration: The PTC thermistor output is logged by the IRC5 event system, allowing integration with ABB Ability™ Connected Services or third-party OPC-UA SCADA systems for thermal trend analysis and predictive replacement scheduling.
• Reduced unplanned downtime: OEM-matched components eliminate the commissioning variability associated with aftermarket alternatives. In high-OEE environments (≥85% target), a failed motor replacement that requires extended re-tuning can cost more in lost production than the price differential between OEM and non-OEM parts.
• Warranty chain preservation: Use of the OEM 3HAC031683-001 preserves the robot’s service contract eligibility under ABB’s standard maintenance agreements. Non-OEM motor substitutions may void axis-level warranty coverage on the gearbox and drive module.
• Fault code diagnostic alignment: ABB service manual 3HAC028284-001 references fault codes 38304, 50024, and 71019 specifically in the context of the OEM motor’s thermal and encoder characteristics. Diagnostic procedures and threshold values in the manual are calibrated to this motor’s specifications, ensuring accurate fault isolation without empirical adjustment.

Quality Assurance & Global Logistics

Every 3HAC031683-001 unit dispatched from our Xiamen, China facility is sourced exclusively through verified ABB authorized distribution channels and certified industrial surplus networks with full traceability documentation. Pre-shipment inspection protocol includes: visual and dimensional verification against ABB OEM drawings; encoder/resolver signal continuity check; insulation resistance measurement (≥100 MΩ at 500 VDC per IEC 60034-1); and photographic documentation of the serial number plate, connector condition, and shaft surface prior to packaging.

Units are packed in anti-static foam-lined export cartons with desiccant sachets and shock-indicator labels. Export documentation — commercial invoice, packing list, certificate of origin, and HS code declaration (HS 8501.52) — is prepared in-house and submitted to customs within 24 hours of order confirmation. Shipping is executed via DHL Express or FedEx International Priority from Xiamen Gaoqi International Airport, with typical transit times of 3–5 business days to Europe and North America, and 2–4 business days to Southeast Asia. All shipments carry full cargo insurance. A 12-month warranty covers manufacturing defects and premature failure under normal operating conditions, with advance replacement available for verified production-critical situations.
