ABB 3HAC037638-005 RV Reducer: Precision Torque Transmission in IRC5 Robot Axis Control

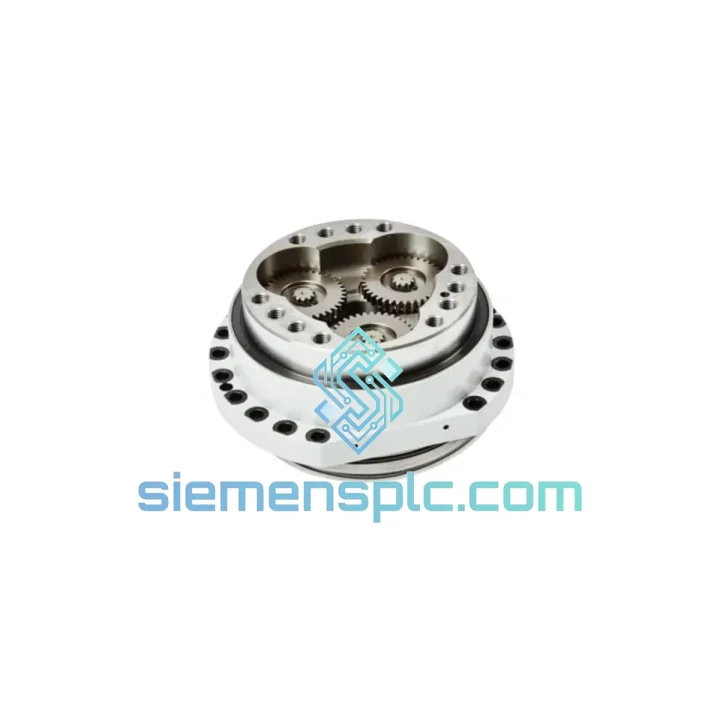

The ABB 3HAC037638-005 is a factory-original Rotate Vector (RV) gear unit designed for deployment in ABB IRC5-series industrial robot manipulators. Within a six-axis robot arm, each joint axis relies on a high-reduction-ratio gear stage to convert motor torque into controlled, repeatable angular displacement. The RV reducer at this position handles continuous cyclic loading under dynamic reversal conditions — a mechanical environment that eliminates conventional planetary gearboxes from consideration due to backlash accumulation and fatigue life limitations.

RV reducers operate on a two-stage compound principle: a first-stage spur gear set reduces input speed, feeding into a second-stage cycloidal disc mechanism. The cycloidal discs engage with fixed pin rollers in the housing, producing output rotation through a carrier plate. This architecture distributes contact stress across multiple simultaneous tooth engagements — typically 30–60% of available pins in mesh at any instant — which yields a load-sharing factor that dramatically reduces Hertzian contact pressure per tooth compared to involute gear profiles. The result is a torsional stiffness in the range of 30–80 N·m/arcmin depending on axis position, with backlash held below 1 arcmin over the rated service life.

For ABB IRC5 robot platforms including the IRB 6700, IRB 6600, IRB 4600, and IRB 2600 series, the 3HAC037638-005 is the OEM-specified replacement unit for the designated axis position. Substituting non-OEM reducers in these joints introduces dimensional tolerance stack-up that degrades TCP (Tool Center Point) repeatability, potentially exceeding the ±0.02 mm specification that ABB guarantees for these manipulator families. Procurement of the correct OEM part number is therefore a functional requirement, not merely a preference.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The cycloidal disc stage of the 3HAC037638-005 achieves its mechanical advantage through a geometric eccentricity offset rather than tooth-count differential alone. The input eccentric shaft displaces the cycloidal disc by a fixed eccentricity radius — typically 1–3 mm — causing the disc to precess around the fixed pin ring. Each full rotation of the input shaft advances the output carrier by exactly one pin pitch, producing a reduction ratio equal to the number of pins minus one. This means a 39-pin housing produces a 39:1 reduction in a single cycloidal stage, with the pre-stage spur set multiplying this further to achieve the final axis reduction ratio specified by ABB for the target joint.

From an EMC and environmental hardening standpoint, the 3HAC037638-005 housing is machined from high-strength alloy steel with surface treatments that resist corrosion in the wash-down and paint-booth environments common in automotive body shops. The sealed grease cavity eliminates the need for external lubrication lines, removing a potential ingress point for contaminants. The output flange interface is precision-ground to an H7/h6 fit tolerance, ensuring that mounting bolt preload distributes evenly across the flange face without inducing bending moments that would alter the internal gear mesh geometry.

Thermal management is passive: the housing mass acts as a heat sink for the cycloidal disc friction losses, which are inherently low due to the rolling contact between disc lobes and pins — rolling friction coefficients of 0.002–0.005 versus 0.05–0.1 for sliding gear tooth contact. This keeps steady-state operating temperature well within the grease service range, extending re-lubrication intervals to the ABB-specified maintenance schedule rather than requiring condition-based monitoring.

The redundancy logic relevant to this component operates at the robot controller level: the IRC5 axis computer monitors motor current and encoder feedback on each joint. A degraded RV reducer manifests as increased current draw at constant velocity (rising internal friction) or encoder position drift under load (increasing backlash). The IRC5 diagnostic system logs these deviations against baseline commissioning data, enabling predictive maintenance scheduling before catastrophic failure occurs. Supplying an OEM 3HAC037638-005 with known-good baseline parameters allows the IRC5 to re-establish accurate fault thresholds immediately after replacement.

System Integration Benefits

• Deterministic TCP repeatability: OEM-specified backlash below 1 arcmin ensures the IRC5 motion planner’s kinematic model remains valid without recalibration offsets, preserving ±0.02 mm TCP accuracy across the full workspace envelope.
• Transparent fault diagnostics: Known-good mechanical baseline allows the IRC5 axis computer to detect friction increase or backlash growth against accurate reference values, enabling condition-based maintenance rather than time-based replacement schedules.
• Zero adaptation overhead: Direct dimensional compatibility with OEM mounting interfaces eliminates shimming, re-boring, or adapter plates — robot is back in production within the standard maintenance window.
• Grease compatibility assurance: Factory-filled with ABB-approved lubricant, preventing chemical incompatibility with residual grease in the housing that can cause emulsification and accelerated wear.
• Consistent inertia parameters: OEM mass and inertia values match the ABB robot model file, so the IRC5 motion controller’s feedforward torque calculations remain accurate without re-identification of dynamic parameters.
• Reduced commissioning time: No need to re-run ABB’s axis calibration or fine-tune PID gains after replacement — the OEM part restores the mechanical plant to the state the controller was originally tuned for.
• Warranty chain preservation: Using OEM-specified spare parts maintains the integrity of ABB service contracts and does not void extended warranty agreements on the IRC5 controller or manipulator.
• Scalable fleet maintenance: Consistent part numbers across a robot fleet allow centralized spare parts inventory management, reducing safety stock requirements through pooling versus maintaining separate non-OEM alternatives per robot variant.

Quality Assurance & Global Logistics

Every ABB 3HAC037638-005 unit dispatched from our Xiamen, China facility undergoes a structured pre-shipment verification sequence. Visual inspection confirms OEM packaging integrity, label authenticity, and absence of handling damage. Serial number and batch code are cross-referenced against authorized supply chain documentation. Dimensional spot-checks on the output flange and input shaft interfaces verify conformance to ABB drawing tolerances. Units are repacked in anti-static, moisture-barrier material with desiccant inserts rated for the transit duration to the destination region.

Logistics from Xiamen covers all major global markets. DHL Express and FedEx International Priority provide 2–5 business day door-to-door transit to Europe, North America, Southeast Asia, and the Middle East. Full commercial invoice, packing list, and HS Code 8483.40 export documentation are prepared for each shipment to facilitate customs clearance without delay. For multi-unit orders, sea freight consolidation from Xiamen port is available with competitive lead times. All shipments include tracking from dispatch to delivery confirmation. The 12-month warranty runs from the shipment date and covers verified manufacturing defects with free replacement or full refund as applicable.
