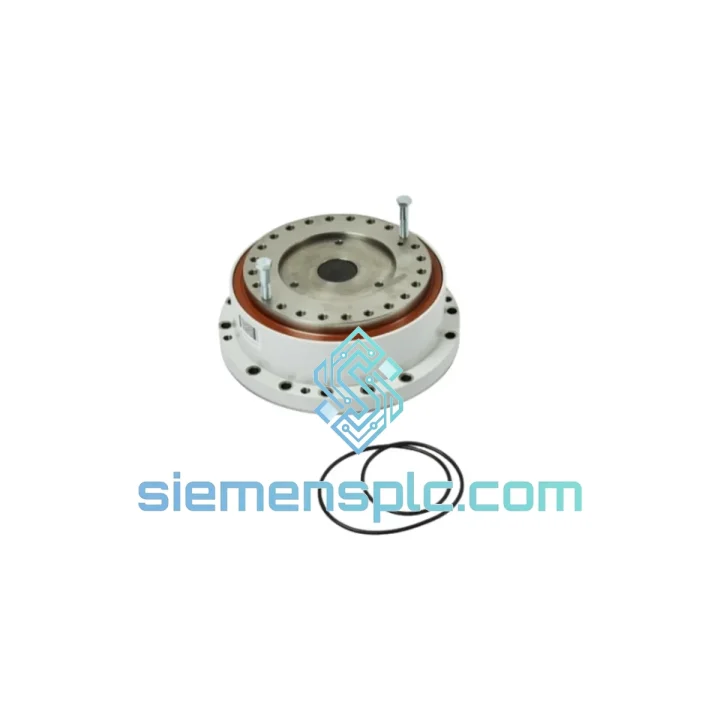

ABB 3HAC046163-001 Reduction Gear RV-320ES i=201

3HAC046163-001 RV-320ES i=201 — Stop the Clock on Your IRB6700 Downtime

Every minute your IRB6700 sits idle costs real money. A failed axis gearbox doesn’t just halt one robot — it freezes the entire cell, backs up your line, and puts your delivery commitments at risk. The ABB 3HAC046163-001 Reduction Gear RV-320ES i=201 is the exact OEM drivetrain component your robot needs to get back to rated payload and repeatability. We stock it in Xiamen. We ship it today.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Common failure signatures for the 3HAC046163-001 gearbox:

• Error 50056 / 50057 (Joint Torque Overload): Axis 1 torque spikes beyond threshold during normal moves. Often the first sign of internal RV gear wear — pitting on the cycloidal disc or crankshaft bearing fatigue. Don’t reset and ignore; the gear is telling you it’s done.
• Error 50024 (Position Deviation Too Large): The motor encoder says one thing, the resolver says another. If the deviation is consistent on Axis 1 and not caused by a load collision, suspect gearbox backlash growth from worn output bearings.
• Abnormal noise during slow-speed moves: A grinding or clicking sound at low TCP speeds (under 200 mm/s) on Axis 1 is a classic RV gear symptom. High-speed moves mask it. Run a slow diagnostic path and listen.
• Oil leakage at the gearbox flange: The RV-320ES uses a sealed lubrication system. Any visible oil at the mounting face means the internal seal has failed — replacement is the only fix, not re-sealing.

Replacement procedure — key checkpoints:

• Zero-point calibration is mandatory after replacement. The IRB6700 uses resolver-based absolute position feedback. After installing the 3HAC046163-001, you must run the fine calibration routine in RobotStudio or via the FlexPendant (Calibration > Fine Calibration > Axis 1). Skipping this will cause path deviation errors immediately on the first program run.
• Torque the mounting bolts in a star pattern. The gearbox flange has 12 mounting points. Uneven torque causes micro-misalignment that accelerates bearing wear. Use the ABB-specified torque value from the IRB6700 Product Manual (typically 70–90 Nm for M10 class 12.9 bolts — verify against your robot variant).
• Check the SIB-01 (3HNA006146-001) before assuming the gearbox is the fault. The Safety Interface Board monitors axis brake and motor feedback. A failing SIB-01 can generate false gearbox fault codes. Swap the SIB-01 first if the robot is showing faults without mechanical symptoms — it’s a cheaper diagnostic step.
• Lubrication at installation: The RV-320ES ships factory-filled. Do not add additional grease. Over-lubrication causes internal pressure buildup and premature seal failure.
• Firmware compatibility: The 3HAC046163-001 is a mechanical component with no embedded firmware. However, confirm your IRC5 controller RobotWare version supports the IRB6700 variant you’re servicing. RobotWare 6.x and 7.x have different calibration data structures — use the correct backup before proceeding.
• Brake release during installation: Use the brake release buttons on the IRC5 drive module to hold Axis 1 in position during gearbox removal. Never rely on the mechanical stop alone with a 150+ kg arm configuration.

Reliability in Harsh Conditions

The IRB6700 is built for the worst environments in manufacturing — foundry cells running at 45°C ambient, automotive press shops with constant vibration, and die-casting lines where coolant mist is unavoidable. The RV-320ES gearbox architecture is engineered to match that operating envelope.

The cycloidal disc design distributes load across multiple contact points simultaneously, unlike a standard planetary gear where only 2–3 teeth engage at any time. This means shock loads from press-tending or heavy part drops are absorbed across the full gear face rather than concentrated on individual teeth. The result is a gearbox that survives the kind of collision events that would destroy a conventional helical gear unit.

The sealed lubrication system eliminates the contamination risk that kills open-gear designs in foundry and machining environments. Coolant, metal swarf, and casting flash cannot enter the gear chamber. The internal bearing preload is set at the factory and does not drift under thermal cycling — a critical advantage in applications where the robot runs three shifts and the ambient temperature swings 20°C between day and night.

Vibration resistance is inherent to the RV architecture. The eccentric crankshaft motion self-balances at operating speed, producing lower vibration output than equivalent planetary designs. For high-precision welding or assembly applications where TCP repeatability is measured in tenths of a millimeter, this matters. The 3HAC046163-001 maintains ABB’s specified ±0.05 mm repeatability for the IRB6700 throughout its service life when properly maintained.

Units supplied from our Xiamen warehouse are stored in climate-controlled conditions at 15–25°C with humidity control below 60% RH. Long-term storage in improper conditions degrades the internal grease and pre-loads the bearings unevenly — we don’t let that happen to stock we’re going to put in your robot.

Global Express Logistics

Our dispatch hub is in Xiamen, Fujian — one of China’s primary export ports with direct DHL, FedEx, and UPS gateway access. When you confirm an order before 14:00 CST, the unit ships same day. No exceptions for in-stock items.

Typical transit times from Xiamen:

• Southeast Asia (Thailand, Vietnam, Indonesia, Malaysia): DHL Express — 1–2 business days
• Europe (Germany, Italy, Spain, Poland): FedEx International Priority — 3–4 business days
• North America (USA, Canada, Mexico): DHL Express Worldwide — 3–5 business days
• Middle East (UAE, Saudi Arabia, Turkey): FedEx International Priority — 2–4 business days
• South America (Brazil, Chile, Argentina): DHL Express — 4–6 business days
• Australia / New Zealand: DHL Express — 2–3 business days

Every shipment includes a commercial invoice, packing list, and certificate of conformity. For customs clearance in the EU, we provide the correct HS code (8483.40) and country of origin documentation. For customers in countries with import duty exemptions on industrial automation components, we can structure the documentation accordingly — ask your sales contact.

Tracking numbers are issued within 2 hours of dispatch. We monitor every shipment through to delivery and proactively contact you if a customs hold or carrier delay occurs. You will not be chasing us for updates.
