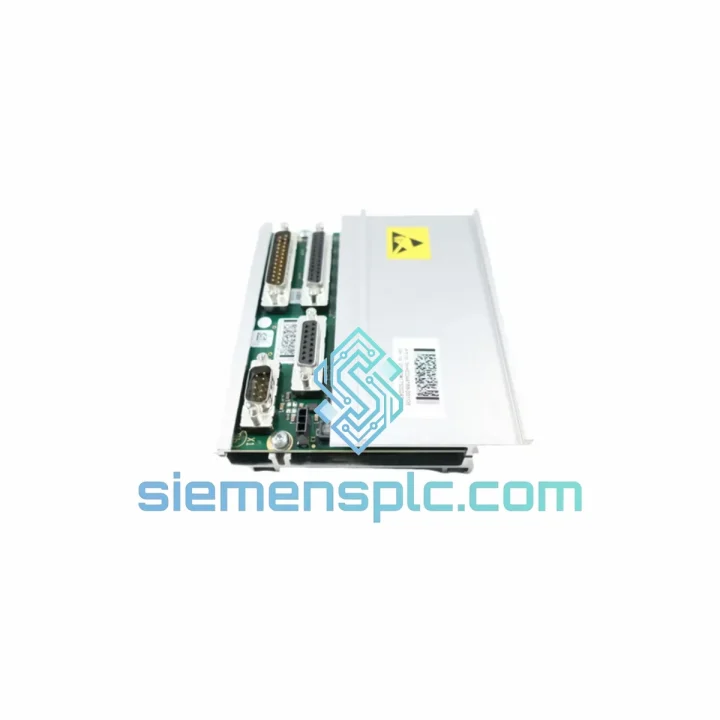

ABB 3HAC046686-001 Robotic Controller Board – IRC5

ABB 3HAC046686-001 IRC5 Main Computer Board: Central Processing Architecture in Multi-Axis Robot Control

The ABB 3HAC046686-001 is the primary computational module within the IRC5 robot controller cabinet, responsible for coordinating motion trajectory calculation, real-time I/O arbitration, fieldbus communication, and system-level diagnostics across all connected robot axes. Deployed in high-throughput manufacturing environments — automotive body-in-white welding, precision electronics assembly, palletizing, and CNC machine tending — this board operates as the deterministic core of the IRC5 control architecture, executing RobotWare task scheduling with cycle-accurate timing.

Unlike peripheral interface cards, the 3HAC046686-001 sits at the top of the IRC5 hardware hierarchy. It manages the internal RAPID program execution engine, handles SafeMove safety processor handshaking, and maintains Ethernet-based communication with FlexPendant teach pendants and RobotStudio offline programming environments. Its role is not supplementary — it is the functional center of the entire controller cabinet.

📩 Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 3HAC046686-001 implements a layered hardware architecture that separates real-time motion control from supervisory task management. At the lowest layer, a dedicated motion co-processor handles interpolation cycle execution — typically at 4 ms path update intervals — independent of the main CPU load. This separation ensures that RAPID program execution, HMI communication, and fieldbus polling do not introduce jitter into the servo loop, a critical requirement in applications where positional repeatability is specified at ±0.02 mm or tighter.

The board’s EMC design follows a multi-layer PCB topology with dedicated ground planes for analog signal paths and digital logic domains. Opto-isolation is applied at all external I/O interface boundaries, preventing ground loop currents from propagating into the processor subsystem. Transient voltage suppression (TVS) diodes are placed at each communication port entry point, rated to clamp ESD events up to ±8 kV contact discharge per IEC 61000-4-2 Level 4.

Flash memory architecture uses a dual-bank scheme: one bank holds the active RobotWare image, the second holds a validated fallback image. On boot failure detection, the firmware automatically rolls back to the secondary image without operator intervention, reducing unplanned downtime in lights-out manufacturing cells. The DRAM subsystem uses ECC (Error Correcting Code) memory to detect and correct single-bit errors in real time, a design choice that reflects the board’s deployment in safety-rated robot cells where memory integrity is a functional safety prerequisite.

The backplane connector interfaces with IRC5 axis computers via a proprietary high-speed serial link operating at deterministic latency. This link carries both motion reference data (position setpoints, velocity profiles) and diagnostic telemetry (motor temperature, resolver feedback status, drive fault codes) in a single multiplexed channel, eliminating the need for separate diagnostic wiring harnesses.

System Integration Benefits

• Deterministic Motion Cycle Execution: The board’s co-processor architecture maintains a fixed 4 ms interpolation cycle regardless of RAPID program complexity, ensuring servo loop timing is decoupled from application-layer processing load.
• Native RobotStudio Compatibility: Full support for ABB RobotStudio offline programming and virtual commissioning, enabling engineers to validate robot programs against a digital twin before physical deployment — reducing on-site commissioning time by 30–50% in documented ABB case studies.
• SafeMove Integration: The board provides the hardware handshake interface for ABB SafeMove safety processor modules, enabling certified speed monitoring, safe standstill, and safe zone supervision without external safety relays.
• Fieldbus Flexibility: Simultaneous support for PROFIBUS-DP, DeviceNet, and EtherNet/IP allows the IRC5 to integrate into existing PLC-controlled production lines without gateway hardware, reducing network latency and eliminating protocol translation errors.
• Diagnostic Transparency: The board exposes structured fault data via the FlexPendant event log and RobotStudio event analyzer, with fault codes mapped to specific hardware subsystems — enabling maintenance engineers to isolate faults to board, cable, or drive level within minutes rather than hours.
• MultiMove Coordination: In IRC5M (MultiMove) configurations, the main computer board manages coordinated motion across up to four robot arms sharing a common work object, with synchronized path execution at the interpolation level — not at the PLC scan level — eliminating coordination lag.
• Hot-Swap Preparation: The board supports controlled shutdown sequencing, allowing maintenance personnel to power down the controller in a defined state that preserves RAPID program position data and I/O status, reducing restart time after board replacement.
• Long-Term Firmware Support: ABB’s RobotWare lifecycle policy provides firmware updates and security patches for IRC5 hardware for a minimum of 10 years post-production, protecting capital investment in installed robot cells.

Quality Assurance & Global Logistics

Every 3HAC046686-001 unit supplied by siemensplc.com is sourced as genuine ABB OEM hardware, carrying full ABB part traceability through the manufacturer’s serial number database. Prior to shipment, each board undergoes a structured functional verification protocol: 24 VDC power-on test, Ethernet port link negotiation check, backplane connector continuity verification, and firmware version confirmation against ABB’s current release matrix.

Packaging follows IEC 61340-5-1 ESD protection standards: boards are sealed in conductive anti-static bags, placed in foam-lined rigid cartons with corner protection, and labeled with handling instructions in English and Chinese. For international shipments, cartons are double-boxed with desiccant packs to protect against humidity during transit.

Logistics operations are based in Xiamen, China, with direct access to Xiamen Gaoqi International Airport cargo terminals and Xiamen Port container services. Standard international shipments are dispatched via DHL Express, FedEx International Priority, or UPS Worldwide Expedited, with typical transit times of 3–7 business days to Europe, North America, Southeast Asia, and the Middle East. Expedited same-day dispatch is available for orders confirmed before 14:00 CST. All shipments include full commercial invoice documentation, packing list, and certificate of origin for customs clearance.

A 12-month warranty covers all units against manufacturing defects and functional failure under normal operating conditions. Warranty claims are processed within 5 business days of receipt of the returned unit, with replacement dispatch or credit note issued upon fault confirmation.
