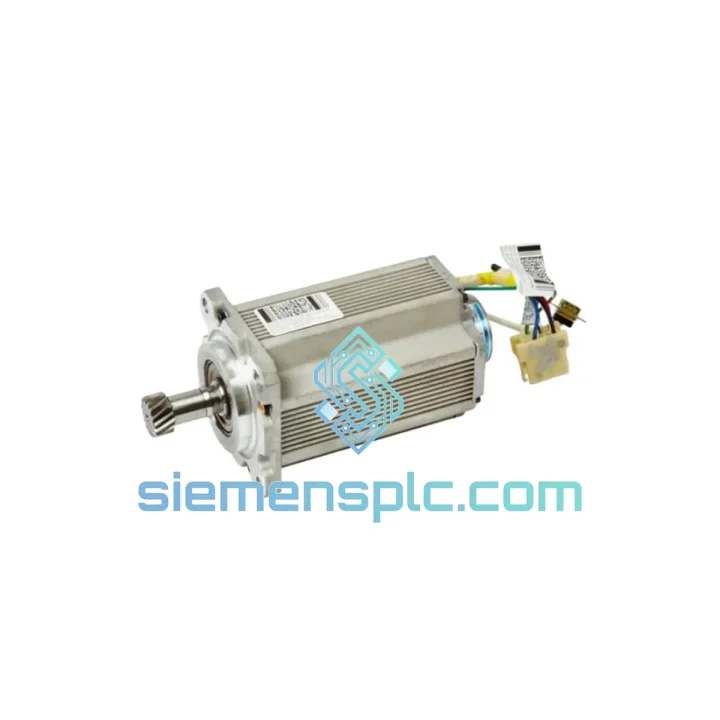

ABB 3HAC051384-003 Servo Motor – IRB6700 Series

ABB 3HAC051384-003 — Axis Servo Drive Assembly for IRB6700-300/2.75 Heavy-Payload Robotic Cells

The ABB 3HAC051384-003 is the OEM-designated AC brushless servo motor assembly for the IRB6700-300/2.75 robot platform — a six-axis industrial manipulator rated at 300 kg payload capacity and 2,750 mm reach. Within the IRC5 distributed drive architecture, this unit occupies the final power-conversion stage of the motion control chain: it receives PWM-modulated three-phase current from the DSQC522 (3HNP04378-1) drive module and converts it to mechanical torque at the axis gearbox input shaft. The absolute position resolver module 3HAC8848-1 closes the feedback loop, returning angular data to the drive at update rates sufficient to sustain ±0.05 mm axis repeatability under rated load. For maintenance engineers managing production-critical robot cells in automotive, foundry, or aerospace environments, this assembly is a direct drop-in replacement requiring no axis parameter file modification — only the standard ABB fine calibration procedure via FlexPendant or RobotStudio.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 3HAC051384-003 is designed around ABB’s IRC5 distributed servo topology, where each axis motor operates as an independent closed-loop node rather than a centrally polled device. This architecture has three direct consequences for system behavior:

Resolver-Based Absolute Feedback: The paired 3HAC8848-1 module uses a multi-pole resolver — not an incremental optical encoder — to determine rotor position. A resolver generates analog sine/cosine signals whose ratio encodes absolute angular position within one electrical cycle. The IRC5 drive’s R/D (resolver-to-digital) converter samples these signals at high frequency and reconstructs absolute position without requiring a homing sequence after power loss. This is particularly relevant in press-tending and palletizing cells where unplanned power interruptions must not trigger a full axis re-reference cycle before production can resume.

EMC Design and Shielding: The motor housing is constructed from die-cast aluminum with a continuous conductive shield path from the motor body through the cable connector backshell to the DSQC522 drive chassis. This provides a low-impedance return path for high-frequency common-mode currents induced by the PWM switching edges of the drive output stage (typical switching frequency: 4–8 kHz). In environments with dense variable-frequency drive installations — common in automotive body shops — this shielding architecture prevents resolver signal corruption that would otherwise manifest as axis position jitter or fault code 50056 (resolver signal loss).

Thermal Management: The stator windings are wound with Class F insulation (155 °C thermal rating), providing a substantial margin above the 45 °C ambient operating limit. At full duty cycle in a 45 °C enclosure, the winding temperature rise under rated torque remains within the Class F envelope, eliminating the need for forced-air cooling or derating of the duty cycle. The motor frame acts as a passive heat sink, with the mounting flange providing a conductive thermal path to the robot arm casting.

Gearbox Interface Integrity: The output shaft is machined to ABB’s IRB6700 axis flange tolerance specification, with a keyed interface that prevents fretting corrosion under the oscillating torque reversals typical of spot-welding gun actuation cycles. The shaft seal is rated for the grease compounds used in ABB’s standard axis gearbox fills, preventing cross-contamination between motor bearing lubricant and gearbox oil.

System Integration Benefits

• Zero-Homing Restart: Absolute resolver feedback eliminates axis re-reference after power loss, reducing unplanned downtime in high-cycle production cells by removing the homing cycle from the restart sequence.
• Direct IRC5 Firmware Compatibility: The motor’s electrical interface is validated against all IRC5 firmware revisions from RobotWare 5.x through 7.x. No parameter file edits or drive configuration changes are required for a standard axis replacement.
• Deterministic Torque Response: The DSQC522 drive closes the current loop at a fixed 62.5 µs cycle time. The 3HAC051384-003’s low rotor inertia allows the drive to track torque setpoints with minimal lag, supporting the high-acceleration profiles required in automotive spot-welding path segments.
• Fault Transparency: The IRC5 system logs resolver signal quality metrics (amplitude, phase error, temperature) as structured diagnostic data accessible via RobotStudio’s event log. Degradation trends are visible before a hard fault occurs, enabling condition-based maintenance scheduling.
• IP67 Sealed Construction: The motor body withstands wash-down with water jets at standard industrial pressures, making it suitable for food-adjacent and foundry environments without additional protective enclosures.
• Reduced Spare Parts Complexity: A single 3HAC051384-003 unit covers all axis positions on the IRB6700-300/2.75 that share this motor specification, reducing the number of distinct line items in a maintenance spare parts inventory.
• OEM Dimensional Compliance: Shaft diameter, flange bolt pattern, and cable connector pinout are identical to the factory-installed unit. No adapter plates, re-pinning, or mechanical modification is required during installation.
• Traceability Documentation: Each unit ships with a serialized inspection record. The serial number can be cross-referenced against ABB’s part revision history to confirm the correct hardware revision for the target robot’s manufacturing date range.

Quality Assurance & Global Logistics

Every ABB 3HAC051384-003 unit offered through siemensplc.com is sourced from verified ABB Robotics distribution channels or authenticated OEM surplus stock with full traceability documentation. Prior to listing, each unit undergoes a structured incoming inspection protocol: visual examination for mechanical damage, dimensional verification of the shaft and flange interface, electrical continuity and insulation resistance checks on the motor windings, and resolver signal amplitude verification using a calibrated R/D test fixture. Units that do not meet ABB’s published acceptance criteria are quarantined and not offered for sale.

Packaging follows anti-static and shock-protection standards: the motor assembly is placed in a conductive foam insert inside a moisture-barrier poly bag, sealed with a desiccant pack, and placed in a double-wall corrugated outer carton fitted with calibrated shock indicators. This packaging specification is designed to survive the handling conditions of international air freight and express courier services.

Shipments originate from our warehouse in Xiamen, China. In-stock orders are dispatched within 1–3 business days of payment confirmation. We work with DHL Express, FedEx International Priority, and UPS Worldwide Express for time-critical shipments, with typical transit times of 3–5 business days to Europe and North America. For bulk orders or project-based procurement, sea freight consolidation is available with lead times confirmed at order placement. Export documentation — commercial invoice, packing list, and certificate of origin — is prepared to the importing country’s customs requirements. HS code classification and CITES/dual-use export control screening are completed prior to shipment.

A 12-month warranty is provided from the invoice date. Warranty claims are processed with a replacement-first policy: a replacement unit is dispatched upon receipt of the defective unit and confirmation of the fault condition. Extended warranty and on-site technical support contracts are available for fleet maintenance programs managing multiple IRB6700 cells.
