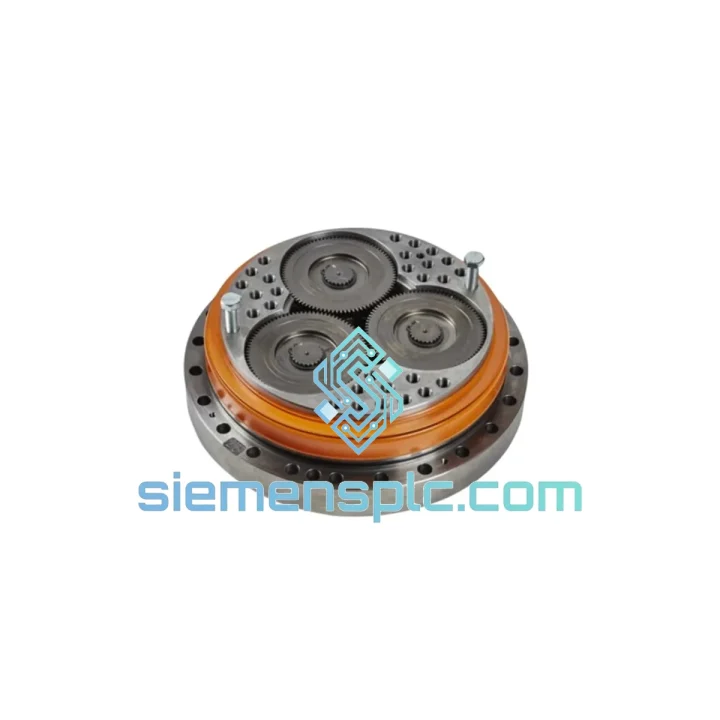

ABB 3HAC055445-001 Axis Reducer IRB6700 IRB760

ABB 3HAC055445-001 — Your Robot Line Is Down. Every Minute Costs Money. We Ship Today.

Joint position error on Axis 1. Grinding at the gearbox. The IRB6700 is locked out and production is bleeding. You’ve already pulled the fault log — now you need the reducer in your hands, not a lead-time quote. We stock 3HAC055445-001 (and its sister parts 3HAC045066-001, 3HAC037474-001, 3HAC051323-001) in Xiamen, confirmed available, and we cut the shipping label the same afternoon you confirm the order. No broker chain. No warehouse transfer delays. Direct from our stock to your dock.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Step 1 — Confirm the reducer is actually the fault source. Before you order, spend 10 minutes ruling out the servo motor and encoder. The classic IRB6700 reducer failure presents as alarm 38317 – Joint position error too large combined with abnormal vibration or audible grinding at the joint under load. Swap the drive parameters to a known-good axis and jog at 10% speed with no payload. If the fault follows the motor, you need a motor — not a reducer. If the fault stays at the joint regardless of which motor drives it, the gearbox is condemned. Order now.

Step 2 — Select the correct ratio before you confirm. All four part numbers fit the IRB6700/IRB760 platform but are not interchangeable:

• 3HAC055445-001 (200:1) — Axis 1 on IRB6700-150/200/235 kg. Highest torque axis; most frequently damaged in collision events and overload cycles.
• 3HAC045066-001 (150:1) — Axis 2 on IRB6700. High wear rate in press-tending and spot-welding applications due to sustained high-load cycling.
• 3HAC037474-001 (245:1) — Axis 3 / IRB760 primary axis. Highest reduction ratio; critical for smooth deceleration in palletizing and heavy-transfer cycles.
• 3HAC051323-001 (30:1) — Wrist axes (4/5/6 depending on configuration). Lower torque, higher speed; wear signature is TCP drift rather than hard fault codes.

Step 3 — Field replacement procedure (proven sequence):

1. LOTO the robot cell. Verify zero energy state at the IRC5 or OmniCore controller — do not rely on software e-stop alone.
2. Mechanically support the arm segment before removing fasteners. The brake holds position but will not support the arm weight once the reducer is extracted.
3. Drain gearbox lubricant completely. Record the volume drained — it is your refill reference. Deviation from spec volume is the single most common post-installation failure cause.
4. Disconnect and protect the servo motor encoder connector. Contamination at this connector causes intermittent resolver faults that are extremely difficult to diagnose post-reassembly.
5. Extract the servo motor, then remove the reducer. Inspect the housing bore for fretting marks or scoring. Photograph any damage before installing the new unit — this is your warranty documentation if the root cause was a structural issue rather than wear.
6. Install the new 3HAC055445-001. Torque all fasteners to ABB service manual specification. Under-torque is a field epidemic — it causes micro-movement at the flange interface and accelerates wear on the new unit within weeks.
7. Refill with ABB-specified grease (LGFP 2 or the grade specified in your robot’s maintenance manual for this axis). Overfilling is as damaging as under-filling — excess grease pressurizes the seal and causes ejection at operating temperature.
8. Reinstall the servo motor. Verify coupling alignment with a dial indicator before final torque — misalignment at this interface loads the reducer input bearing asymmetrically.
9. Power up and run axis calibration using ABB CalibWare or the Levelmeter tool. This step is mandatory even for a direct OEM replacement. The new reducer’s mechanical zero will not match the previous unit’s wear-adjusted position. Skipping calibration will result in TCP error exceeding your process tolerance within the first production shift.
10. Jog at 10% speed for 15 minutes. Monitor joint temperature and motor current draw. Both should stabilize within normal operating range before you return to production speed. A current spike that does not decay indicates a coupling or alignment issue — stop and investigate before running at full speed.

Post-installation fault codes you will likely see — and what they mean:

• 50296 – Axis calibration required — Expected. Complete the CalibWare procedure before dismissing.
• 38315 – Joint speed error — Check motor coupling torque and encoder connector seating. Usually a mechanical issue, not a software one.
• 20223 – SMB battery low — Unrelated to the reducer but surfaces after any power cycle during maintenance. Replace the SMB battery if flagged — a dead SMB battery will cause you to lose axis calibration data on the next power loss.
• 50024 – Motor current too high persisting after replacement — Recheck lubricant fill volume and coupling alignment. Excess drag at the input shaft is the most common cause.

Reliability in Harsh Conditions

The 3HAC055445-001 is not a catalog gearbox. It is an OEM-engineered component designed to survive the full dynamic load envelope of the IRB6700 platform: 235 kg payload at 2.65 m/s TCP speed, continuous duty, in environments that include foundry radiant heat, die-casting metal splash, automotive paint booth chemical exposure, and food-grade wash-down cycles. The sealed IP67 construction keeps abrasive particulate and process fluids out of the gear mesh regardless of orientation or mounting angle.

Bearing steel grade and gear surface finish are specified to ABB’s internal fatigue life targets — not to a generic industrial standard. The result is a component that maintains ±0.05 mm TCP repeatability across tens of thousands of operating hours under rated load, which is why automotive OEMs and tier-1 suppliers specify ABB OEM parts rather than aftermarket alternatives when uptime is non-negotiable.

Every unit in our Xiamen warehouse is stored in climate-controlled, ESD-safe conditions. Factory lubricant fill is intact from the original seal date. We inspect packaging for seal integrity before every dispatch — a compromised seal on a precision gearbox is a contamination event, and we treat it as a rejection, not a cosmetic issue. What arrives at your facility is the same unit that left the ABB factory.

Global Express Logistics

Our warehouse is in Xiamen, Fujian — a primary export gateway with direct DHL and FedEx hub access. The logistics chain from your order confirmation to your receiving dock:

• Order confirmed before 15:00 CST: Same-day pick, pack, and courier handover. No next-day processing delays.
• Export documentation: Commercial invoice and packing list prepared with correct HS code (8483.40) and accurate declared value. Documentation errors are the leading cause of customs holds — we have zero tolerance for them.
• DHL Express Worldwide transit times: Europe 2–3 business days | Southeast Asia 1–2 business days | North America 3–4 business days | Middle East 2–3 business days.
• FedEx International Priority: Available for destinations where FedEx provides stronger last-mile coverage or where your facility has an existing FedEx account preference.
• AWB tracking: Sent within 2 hours of dispatch. Real-time tracking from Xiamen to your door — no status chasing required.
• Multi-unit orders: 5+ units or multi-line orders are consolidated to reduce per-unit freight cost without extending transit time.

We have shipped ABB mechanical spares to automotive assembly plants in Germany, semiconductor fabs in Malaysia, food processing lines in Australia, and steel mills in Turkey. The process is identical every time: documented, traceable, and fast.
