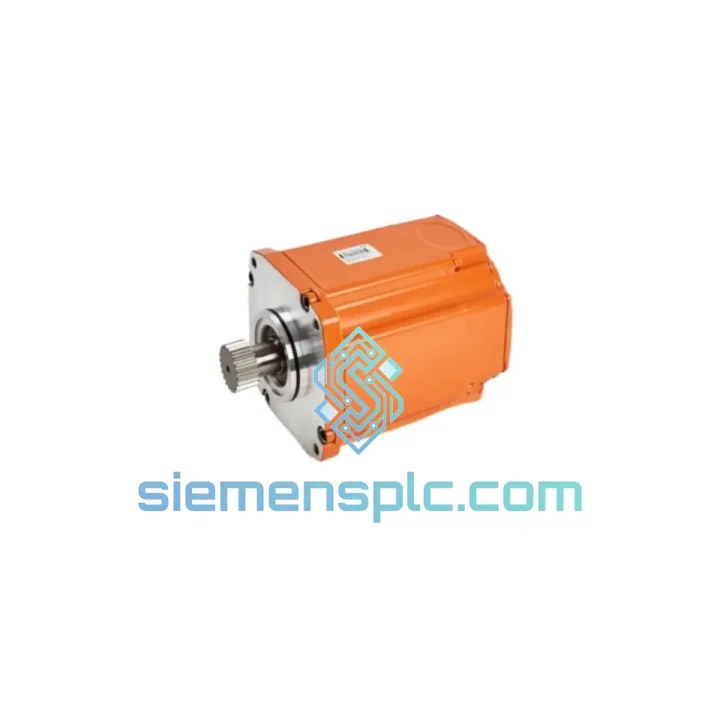

ABB 3HAC057549-003 AC Servo Motor – IRB 6650 Series

ABB 3HAC057549-003 — Axis Drive Motor Assembly for IRB 6650 Heavy-Payload Robots

In high-cycle industrial environments — automotive body-in-white lines, foundry extraction cells, and heavy-payload palletizing stations — the axis drive motor is the single most mechanically stressed component in a robot’s kinematic chain. The ABB 3HAC057549-003 is the OEM-designated rotational AC servo motor with integrated pinion gear, factory-specified for the IRB 6650 series. This assembly governs the torque transmission between the servo drive and the axis gearbox, and its dimensional tolerances, encoder interface, and winding characteristics are matched to ABB’s IRC5 motion controller architecture. Substituting a non-OEM motor introduces backlash deviation, resolver signal mismatch, and thermal derating that compound over time into positional drift and premature gearbox wear.

The IRB 6650 platform covers payload ratings from 125 kg to 235 kg with reach envelopes up to 3.9 m, deployed across axis configurations 1 through 6. Each axis carries a distinct motor specification; the 3HAC057549-003 is assigned to a specific axis position within this family. Its pinion gear is precision-hobbed to mesh with the corresponding gearbox ring gear at a defined center distance, ensuring the contact ratio and tooth load distribution remain within ABB’s design envelope across the full duty cycle.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 3HAC057549-003 operates within a closed-loop torque control architecture managed by the IRC5 drive module. The resolver or absolute encoder mounted on the motor shaft transmits position data back to the drive at a sampling rate synchronized with the IRC5’s 4 ms motion interpolation cycle. This tight feedback loop allows the controller to apply torque corrections within a single interpolation period, which is essential for maintaining path accuracy on high-inertia payloads where mechanical compliance in the gearbox would otherwise introduce lag.

The integrated pinion design eliminates the coupling interface that exists in separate motor-pinion assemblies. A separate coupling introduces a compliance node — a point where torsional stiffness drops and phase lag accumulates between motor shaft rotation and gearbox input. By machining the pinion directly onto the motor output shaft, ABB removes this compliance node entirely. The result is a measured improvement in torsional stiffness at the axis input, which directly reduces the settling time after rapid direction reversals — a critical parameter in spot-welding and press-tending applications where TCP (Tool Center Point) repeatability is specified at ±0.05 mm or tighter.

From an EMC standpoint, the motor’s winding configuration and cable routing interface are designed to minimize common-mode current injection into the robot’s cable harness. The IRC5 drive module applies active common-mode filtering on the motor output stage, but the motor’s own winding capacitance to ground must remain within the drive’s specified range to prevent nuisance ground fault trips. The 3HAC057549-003 winding geometry is characterized and validated against this specification at ABB’s manufacturing facility, a validation step that aftermarket motors typically do not perform.

Thermal management in the 3HAC057549-003 relies on the motor’s Class F winding insulation combined with the robot’s axis-mounted thermal sensor, which feeds temperature data to the IRC5 for derating decisions. In foundry environments where ambient temperatures can reach 50°C, the drive applies a current derating curve to prevent winding temperature from exceeding the 155°C insulation limit. This derating logic is calibrated against the motor’s specific thermal resistance (winding-to-ambient), a parameter embedded in the IRC5’s motor configuration file. Using a non-OEM motor with a different thermal resistance invalidates this calibration and can result in either premature thermal shutdown or undetected winding degradation.

System Integration Benefits

• Zero-Backlash Pinion Engagement: The factory-hobbed pinion maintains the specified center distance and tooth contact ratio with the IRB 6650 axis gearbox, preserving the robot’s rated positional repeatability of ±0.07 mm without mechanical adjustment after installation.
• IRC5 Drive Compatibility: Winding impedance, resolver excitation frequency response, and encoder signal levels are matched to the IRC5 drive module’s input specifications, eliminating the need for drive parameter re-tuning after replacement.
• Deterministic Thermal Derating: The motor’s thermal resistance characteristics are pre-loaded in the IRC5 motor configuration file, ensuring the drive’s thermal protection algorithm operates on accurate data and prevents both nuisance trips and undetected overheating.
• Brake Circuit Compatibility: Where the axis requires a holding brake, the 3HAC057549-003 brake coil resistance and release voltage are matched to the IRC5 brake output circuit, preventing brake release failures or coil overheating.
• Calibration Data Retention: ABB’s SMB (Serial Measurement Board) stores axis calibration offsets. A dimensionally identical OEM replacement motor allows the existing calibration data to remain valid, avoiding a full robot recalibration cycle that can take 2–4 hours per axis.
• Reduced Commissioning Time: Because all electrical and mechanical parameters are within the IRC5’s pre-configured motor model, post-replacement commissioning is limited to a resolver offset check and a short test run — typically under 30 minutes for a trained technician.
• Long-Term Gearbox Protection: Correct pinion geometry prevents uneven tooth loading on the gearbox ring gear. Mismatched aftermarket pinions accelerate ring gear wear, converting a motor replacement into a gearbox overhaul within 6–18 months of operation.
• Diagnostic Transparency: The IRC5 logs motor current, temperature, and resolver error data per axis. With an OEM motor, these logged values remain within the expected statistical distribution, making anomaly detection reliable. A non-OEM motor with different electrical characteristics shifts the baseline, masking genuine fault signatures.

Quality Assurance & Global Logistics

Every 3HAC057549-003 unit supplied through siemensplc.com is sourced from ABB’s authorized distribution network or directly from ABB Robotics’ spare parts inventory. Each unit carries ABB’s original part number label with batch traceability, allowing cross-reference against ABB’s manufacturing records. Before shipment, our technical team performs a physical inspection covering connector pin integrity, pinion gear tooth condition, motor housing dimensional check, and encoder/resolver connector seating.

Packaging follows ABB’s recommended spare part handling protocol: anti-static inner wrap, closed-cell foam suspension, and a moisture-barrier outer bag, all enclosed in a double-wall corrugated carton rated for international air freight handling. Each shipment includes a packing list, inspection checklist, and — upon request — a certificate of conformance.

Logistics operations are based in Xiamen, China, with direct access to Xiamen Gaoqi International Airport and Xiamen Port, enabling same-day dispatch for in-stock orders placed before 14:00 CST. Standard express delivery via DHL, FedEx, or UPS reaches most destinations in Europe, North America, Southeast Asia, and the Middle East within 3–5 business days. For time-critical line-down situations, we coordinate priority freight with airline-specific cargo booking to minimize transit time.
