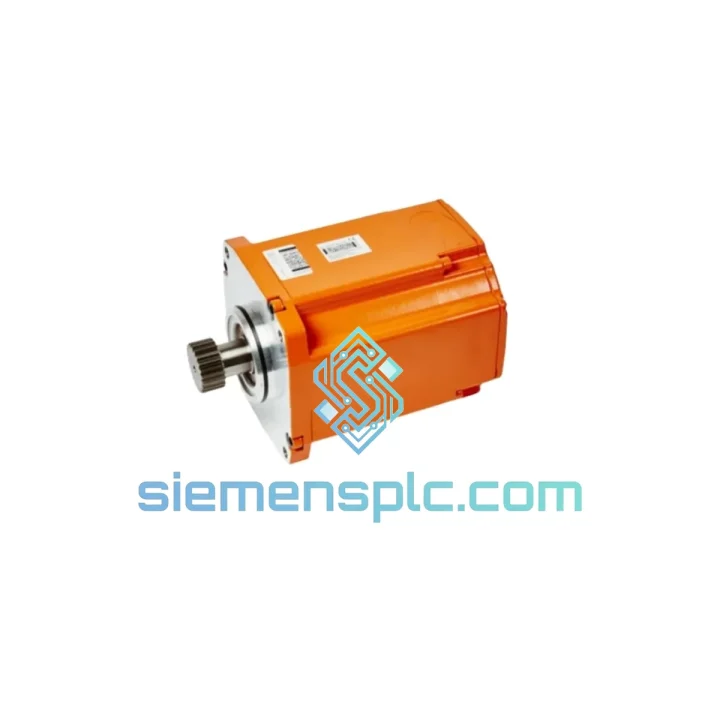

ABB 3HAC058991-004 Robot Servo Motor – IRB 6660 Series

ABB 3HAC058991-004 Servo Motor with Integrated Pinion: Axis Drive Architecture in the IRB 6660 Heavy-Payload Robot

The ABB 3HAC058991-004 is the OEM-designated servo motor and pinion assembly for the IRB 6660 robot platform — a six-axis industrial manipulator engineered for press tending, die casting extraction, and heavy-payload handling up to 205 kg at a 1.9 m reach. Within the IRB 6660 kinematic chain, each axis motor is responsible for converting electrical torque commands from the IRC5 drive unit into precise mechanical displacement. The 3HAC058991-004 assembly covers a primary load-bearing axis, where the integrated pinion eliminates the tolerance stack-up that arises when motor and gear components are sourced and assembled independently.

ABB’s IRB 6660 platform operates in environments characterized by high thermal cycling, mechanical shock, and continuous duty cycles — conditions found in automotive stamping lines, aluminum die casting cells, and forging press tending applications. The motor assembly must sustain rated torque output across these conditions without encoder drift or mechanical play. The 3HAC058991-004 is factory-matched to the IRB 6660 gearbox interface, ensuring that the pinion tooth profile, pitch diameter, and backlash specification remain within the tolerances required to maintain the robot’s published path repeatability of ±0.05 mm.

This part supersedes the earlier revision 3HAC058991-003. The -004 designation reflects an engineering change notice (ECN) applied by ABB Robotics to address field feedback on the predecessor revision. Replacement is a direct swap with no mechanical or electrical modification required on existing IRB 6660 installations.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The IRB 6660’s mechanical architecture places extreme demands on its axis motor assemblies. Unlike lighter-duty robots where motor sizing is governed primarily by inertia matching, the IRB 6660 operates in press tending cycles where the robot must decelerate a 205 kg payload from full speed to a controlled stop within a defined safety envelope — repeatedly, across multi-shift production schedules. The 3HAC058991-004 motor is sized to deliver the continuous torque required for this duty cycle without thermal derating under sustained operation.

The integrated pinion design is a deliberate engineering choice. In a conventional motor-plus-separate-pinion assembly, the interference fit between the motor shaft and the pinion bore introduces a potential fretting wear interface. Over time, micro-slip at this interface generates particulate contamination within the gearbox and degrades the effective backlash specification. By supplying the motor and pinion as a single matched assembly, ABB eliminates this wear mode. The pinion tooth geometry is ground to match the specific gearbox ring gear on the IRB 6660 axis, maintaining the mesh contact ratio and load distribution that the gearbox was designed to achieve.

From an EMC standpoint, the motor’s resolver or encoder feedback cable routing within the IRB 6660 arm structure follows ABB’s shielded cable architecture, where signal cables are physically separated from power cables and grounded at the controller chassis. This separation is critical in press tending environments where large servo drives on the press itself generate significant conducted and radiated interference. The IRC5 controller’s axis drive modules apply notch filtering on the current control loop to suppress resonance frequencies that can be excited by the mechanical compliance of the robot arm at high payload.

The motor’s thermal management relies on the IRB 6660’s internal temperature monitoring via the SMB (Serial Measurement Board). The SMB polls motor winding temperature sensors and reports thermal status to the IRC5 controller, which can apply torque derating before a thermal fault condition is reached. This closed-loop thermal management allows the robot to sustain high-duty-cycle operation without hard fault shutdowns, provided the motor assembly’s thermal sensors are intact — a condition that is verified during the pre-dispatch inspection of each 3HAC058991-004 unit.

System Integration Benefits

• Direct OEM Dimensional Compliance: The 3HAC058991-004 uses ABB’s factory flange pattern and connector pinout, eliminating the need for adapter plates, re-pinning, or mechanical shimming during installation. Axis calibration is performed via ABB RobotWare’s standard calibration routine without hardware modification.
• Preserved Path Repeatability: The factory-matched pinion maintains the gearbox mesh geometry that underpins the IRB 6660’s ±0.05 mm repeatability specification. Third-party motor assemblies with non-matched pinions introduce backlash variability that degrades path accuracy on high-speed press tending trajectories.
• Backward Compatibility with -003 Installations: The -004 ECN revision is a drop-in replacement for all IRB 6660 units previously fitted with the 3HAC058991-003. No firmware update or parameter change is required in the IRC5 controller.
• SMB Thermal Monitoring Continuity: The motor’s winding temperature sensor interface is compatible with the IRB 6660’s SMB board, maintaining the controller’s thermal derating logic and preventing unplanned shutdowns due to thermal faults.
• Reduced Mean Time to Repair (MTTR): Because the motor and pinion are supplied as a pre-assembled, pre-inspected unit, field replacement time is reduced compared to sourcing and assembling components separately. The robot can be returned to production within a single maintenance window.
• Gearbox Contamination Prevention: The integrated pinion eliminates the shaft-bore fretting wear interface present in separate-component assemblies, reducing the risk of metallic particulate contamination entering the gearbox lubricant and accelerating gear wear.
• IRC5 Drive Compatibility: The motor’s electrical characteristics — winding impedance, back-EMF constant, and resolver/encoder signal levels — are matched to the IRC5 axis drive module’s current control loop parameters, ensuring stable velocity and position control without drive parameter re-tuning.
• Traceability for Maintenance Records: Each genuine ABB 3HAC058991-004 unit is supplied with documentation supporting batch traceability, enabling maintenance engineers to record the part’s provenance in the robot’s maintenance log — a requirement for ISO 9001-compliant maintenance programs in automotive manufacturing.

Quality Assurance & Global Logistics

Every ABB 3HAC058991-004 unit dispatched from our Xiamen facility undergoes a structured pre-shipment inspection protocol. Physical integrity of the motor housing, connector body, and pinion gear tooth profile is verified against ABB’s dimensional reference. Winding continuity and insulation resistance are checked to confirm the motor is electrically sound prior to packaging. Units are packed in anti-static, moisture-resistant enclosures with foam-cushioned inserts sized to the motor assembly geometry, preventing transit damage to the pinion teeth and encoder/resolver connector.

Shipment is executed via DHL Express, FedEx International Priority, or UPS Express — carrier selection is based on destination country and lead time requirements. Standard transit times from Xiamen to major industrial hubs are 3–5 business days to Europe, 2–4 business days to Southeast Asia, and 4–6 business days to the Americas. Full export documentation — commercial invoice, packing list, and certificate of origin — is provided with every shipment to support customs clearance at the destination port. For customers in countries requiring import licenses for industrial automation components, our logistics team provides pre-shipment documentation review upon request.

All units are covered by a 12-month warranty from the date of dispatch. Warranty claims are processed by our technical team, who coordinate directly with the customer’s maintenance engineer to diagnose the fault condition before initiating a replacement or repair. This process ensures that warranty claims are resolved efficiently and that the root cause of the failure is identified to prevent recurrence.
