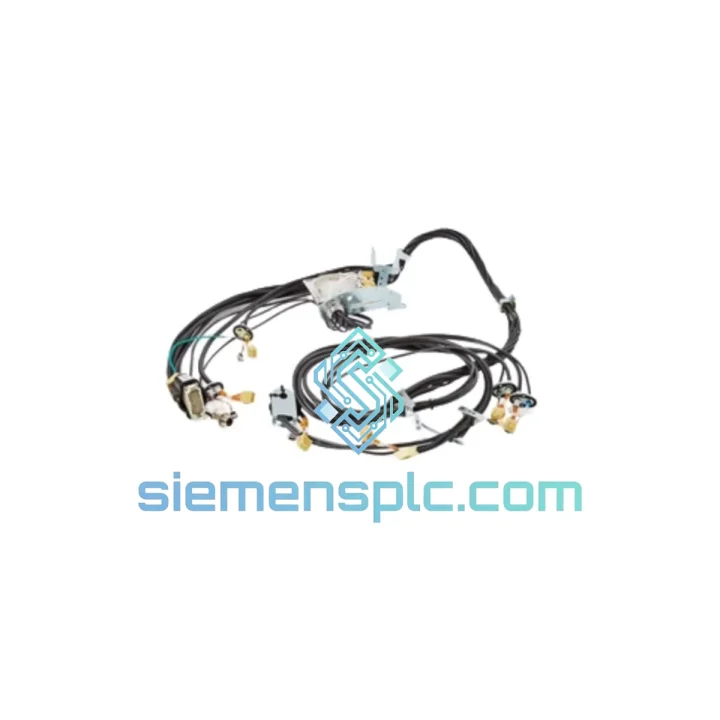

ABB 3HAC069655-001 Manipulator Cable Harness

ABB 3HAC069655-001 — Axis 1–6 Manipulator Harness for IRB 6600: Stop the Clock on Downtime

Every minute an IRB 6600 sits offline costs money. Whether it’s a body-in-white welding cell, a press-tending station, or a heavy-payload palletizing line, a failed axis cable harness triggers a cascade: motion faults, encoder loss, brake errors, and a complete cell shutdown. The ABB 3HAC069655-001 is the OEM-specified manipulator cable harness for Axes 1 through 6 on the IRB 6600 platform — and we ship it from Xiamen within 24 hours of order confirmation.

This is not a generic substitute. Part number 3HAC069655-001 (cross-referenced as 3HAC022544-008 and 3HAC022544-001) is the exact ABB factory assembly: same connector pinout, same cable gauge, same shielding architecture, same routing geometry. It drops in without re-termination, without parameter changes, without surprises. If your robot is down, this is the part that brings it back.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The IRB 6600 harness is one of the highest-wear consumables on this platform. Here is what field experience tells you before you pull the old one out:

Common Fault Codes Indicating Harness Failure:

• Error 50056 / 50057 — Resolver signal loss on Ax3 or Ax4: The mid-span flex section between Ax2 and Ax3 is the first to fatigue. Intermittent resolver dropout at high cycle rates is the earliest warning sign. Do not attempt to re-route or tape — replace the full harness.
• Error 38213 — SMB communication fault: The Serial Measurement Board data line runs through this harness. A single broken shield wire causes persistent SMB dropouts that look like board failures. Swap the harness before condemning the SMB unit.
• Error 50024 — Motor current deviation, Ax1: Intermittent power conductor contact at the base connector causes current spikes that the drive interprets as motor overload. Check connector seating first; if the fault persists under load, the harness is the culprit.
• Brake release failure on Ax5/Ax6: The brake control conductors for the wrist axes are the smallest gauge in the bundle and the most susceptible to fatigue cracking near the wrist articulation point.

Replacement Procedure — Key Points:

• Power down the robot and lock out the IRC5 cabinet before any harness work. Verify zero voltage on the drive bus with a meter — do not rely on the cabinet door interlock alone.
• Photograph the existing harness routing at every cable clamp and strain-relief point before removal. The 3HAC069655-001 follows a specific routing path through the upper arm; incorrect re-routing causes premature wear at the Ax3 articulation.
• The base connector block (Ax1 side) uses a torque-sensitive locking collar. Over-tightening cracks the connector housing. Torque to ABB specification per Product Manual 3HAC026876-001.
• After installation, run the robot through its full working envelope at 25% speed for 10 minutes before returning to production speed. Monitor for resolver signal stability in the IRC5 event log.
• No firmware update or parameter change is required for a like-for-like 3HAC069655-001 replacement on IRC5. The SMB auto-detects the harness on power-up.
• If replacing on an S4C+ controller, verify the axis computer firmware revision matches the robot’s calibration data file before commissioning.

Reliability in Harsh Conditions

The IRB 6600 is deployed in some of the most demanding industrial environments on the planet — automotive stamping lines with ambient temperatures exceeding 50°C, foundry cells with airborne particulate and thermal cycling, and high-cycle palletizing operations running three shifts without interruption. The 3HAC069655-001 is built to survive all of it.

• Thermal Rating: Cable insulation rated for continuous operation at elevated ambient temperatures consistent with ABB IRB 6600 environmental specifications (IP54 robot body). The harness jacket material resists thermal degradation and does not become brittle under sustained heat exposure.
• Flex Fatigue Resistance: The harness is engineered for multi-million flex cycles at the Ax3 and Ax5 articulation points — the two highest-movement nodes in the IRB 6600 kinematic chain. Stranded conductor construction with individually insulated cores prevents work-hardening failure.
• EMI Shielding Architecture: All resolver and encoder signal pairs are individually shielded with foil and drain wire. The outer harness jacket provides an additional overall shield. This two-layer shielding approach maintains signal integrity in welding environments where common-mode noise on the ground plane can exceed 50V peak.
• Vibration Resistance: Strain-relief boots at each articulation point are molded from a flexible compound that absorbs mechanical vibration without transmitting stress to the conductor terminations. This is the primary failure point on non-OEM harnesses — the boots crack and the conductors fatigue at the connector entry.
• Chemical Resistance: The outer jacket resists exposure to cutting fluids, hydraulic oil, and mild solvents common in machining and press-tending environments.
• Connector Sealing: OEM connectors carry the same IP rating as the robot body. Connector housings are keyed to prevent mis-mating and include positive locking mechanisms that maintain contact integrity under vibration.

Global Express Logistics

Our warehouse is located in Xiamen, China — a major international freight hub with direct DHL, FedEx, and UPS express lanes to Europe, North America, Southeast Asia, the Middle East, and Australia. When your robot is down, logistics speed is not a secondary concern.

• Order Cut-Off: Orders confirmed before 15:00 CST ship same business day. Orders confirmed after cut-off ship the following morning.
• DHL Express Worldwide: 2–4 business days to most European destinations; 3–5 business days to North America and Australia.
• FedEx International Priority: Available for time-critical shipments where DHL transit time does not meet your maintenance window.
• Export Documentation: Commercial invoice, packing list, and certificate of origin prepared and submitted same day. HS code pre-classified for smooth customs clearance.
• Tracking: AWB number provided within 2 hours of dispatch. Real-time tracking link sent directly to your procurement or maintenance contact.
• Packaging: Anti-static inner bag, foam-lined outer carton, and moisture-barrier wrap. The harness connectors are individually capped to prevent transit damage.
