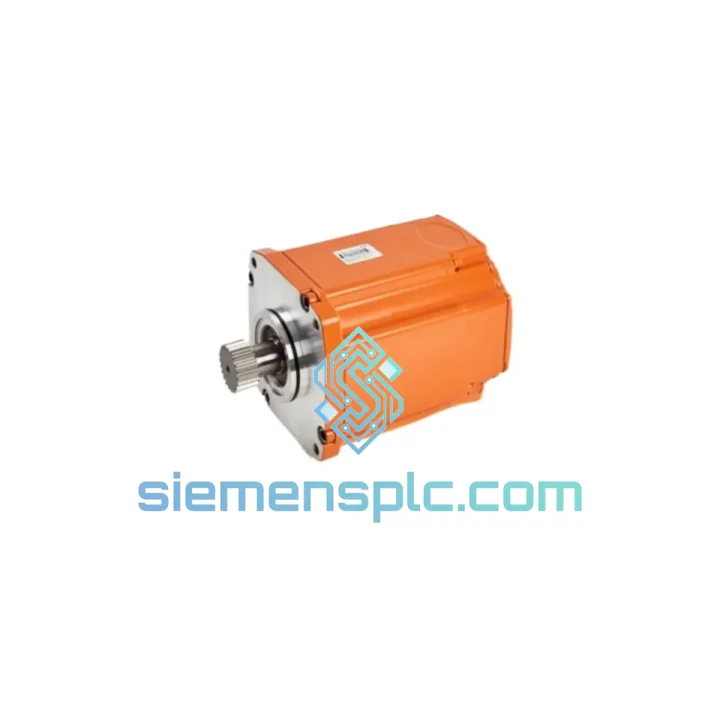

ABB 3HAC10553-1 Servo Motor – IRB 2400 Series

ABB 3HAC10553-1 — Axis 5 Wrist Pitch Servo Motor in the IRB 2400 Six-Axis Drive Chain

The ABB 3HAC10553-1 is the factory-designated brushless AC servo motor for Axis 5 (wrist pitch) on the IRB 2400 robot family. Within a six-axis kinematic chain, Axis 5 governs the pitch rotation of the wrist unit — the degree of freedom responsible for orienting the tool center point (TCP) in the vertical plane. Loss of Axis 5 motion renders the robot incapable of maintaining programmed approach angles, directly invalidating weld seams, adhesive beads, and pick-and-place trajectories. This motor is not a generic substitute; it is the OEM-specified component matched to the IRB 2400 mechanical interface, encoder protocol, and IRC5 drive firmware.

The IRB 2400 platform — available in 10 kg and 16 kg payload variants — operates across automotive body shops, electronics assembly lines, metal fabrication cells, and general-purpose handling stations. With over 22,000 units deployed globally, the demand for verified, traceable spare motors is continuous. The 3HAC10553-1 addresses that demand with a part that requires no parameter re-tuning, no mechanical adaptation, and no firmware patching upon installation.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 3HAC10553-1 employs a permanent magnet synchronous motor (PMSM) topology driven by the IRC5 axis computer via a dedicated servo drive module. The rotor uses rare-earth magnets to achieve a high torque-to-inertia ratio in a compact wrist-compatible envelope — a design constraint imposed by the IRB 2400’s 150 mm wrist offset geometry. The stator windings are delta-configured to reduce phase inductance and improve current-loop bandwidth, which directly supports the IRC5’s 4 kHz torque control cycle.

Position feedback is handled by a resolver or absolute multi-turn encoder mounted on the non-drive end of the motor shaft. The resolver architecture is inherently immune to supply voltage transients and does not require battery backup for position retention — a meaningful advantage in environments with frequent E-stop events or power cycling. The absolute encoder variant retains axis position across power cycles without requiring a homing sequence, reducing restart time after unplanned shutdowns.

EMC performance is addressed at the motor level through shielded winding terminations and a grounded motor frame that integrates with the IRB 2400’s earthing topology. The motor housing is constructed from die-cast aluminium alloy, providing both structural rigidity and thermal conductivity. Heat generated in the stator windings is conducted to the housing surface and dissipated into the wrist unit’s mechanical structure — a passive thermal management approach that eliminates fan dependency and associated failure modes in contaminated environments.

The gearbox interface on the output shaft is precision-ground to an H6/h5 tolerance class, ensuring zero-backlash coupling with the Axis 5 harmonic drive reducer. This mechanical precision is critical: any shaft runout at the motor-gearbox interface propagates through the harmonic drive’s wave generator and amplifies at the output flange, degrading TCP repeatability. The 3HAC10553-1’s shaft geometry is held to OEM tolerances, preserving the IRB 2400’s rated ±0.06 mm repeatability specification.

System Integration Benefits

• Zero-Calibration Swap on Absolute Encoder Units: Absolute encoder variants retain axis position data through power loss. After mechanical installation, the IRC5 controller recognizes the encoder count without a full calibration sequence, reducing recommissioning time from hours to minutes.
• IRC5 Drive Firmware Compatibility: The motor’s electrical parameters — back-EMF constant, phase resistance, inductance — are pre-registered in the IRC5 axis computer’s motor database. No manual parameter entry is required; the drive auto-configures current limits and velocity feedforward gains upon first power-up.
• Deterministic Torque Response: The PMSM topology combined with the IRC5’s 4 kHz current control loop delivers torque step response within 250 µs, supporting the tight path-tracking requirements of arc welding and adhesive dispensing applications.
• Diagnostic Transparency via IRC5: The motor’s resolver/encoder signal is continuously monitored by the IRC5 axis computer. Bearing wear, winding insulation degradation, and encoder signal dropout generate specific fault codes (e.g., 50071, 50072 series) that allow predictive maintenance scheduling before catastrophic failure.
• Thermal Derating Visibility: The IRC5 monitors motor winding temperature via a PTC thermistor embedded in the stator. Thermal overload conditions trigger a controlled velocity reduction rather than an abrupt E-stop, preserving workpiece integrity and allowing a planned shutdown.
• Mechanical Interchangeability Across IRB 2400 Variants: The 3HAC10553-1 is dimensionally and electrically identical across the IRB 2400/10 and IRB 2400/16 payload variants. A single spare unit covers both robot types, simplifying MRO inventory management for multi-robot facilities.
• Reduced Wrist Unit Disassembly Depth: The motor is accessible from the outer wrist housing without full disassembly of the Axis 4 or Axis 6 drive train. Field replacement requires removal of the wrist cover and four motor mounting bolts, minimizing labor hours and the risk of disturbing adjacent components.
• Compatibility with SafeMove2 Safety Functions: On IRC5 controllers equipped with SafeMove2, the Axis 5 motor’s encoder signal feeds the safety-rated position monitoring function. The 3HAC10553-1’s encoder output meets the SIL 2 / PLd signal integrity requirements for safe speed and safe position monitoring without additional hardware.

Quality Assurance & Global Logistics

Every 3HAC10553-1 unit dispatched from our Xiamen facility undergoes a structured incoming inspection protocol. Visual examination covers connector pin integrity, shaft surface condition, and housing casting quality. Electrical verification includes resolver excitation response, winding resistance balance across all three phases (tolerance: ±5% of nominal), and insulation resistance measurement at 500 V DC (minimum 100 MΩ). For refurbished units, a dynamic bench test on an ABB-compatible drive validates torque output and encoder signal fidelity across the full speed range.

Each unit ships with a serialized inspection record, part identification label, and — where applicable — the original ABB packaging or equivalent anti-static foam insert with moisture-barrier bag. International shipments include a full commercial invoice, packing list, and Certificate of Origin for customs clearance. Export classification is handled in-house; HS code documentation is provided for all major destination markets.

Logistics partners include DHL Express, FedEx International Priority, and UCP freight for pallet-volume orders. In-stock units typically depart within 24–48 hours of order confirmation. Transit times to Western Europe average 3–5 business days; North America 4–6 business days; Southeast Asia 2–3 business days. Full shipment tracking is provided at dispatch.

All units carry a 12-month warranty from the date of dispatch, covering manufacturing defects and encoder signal failure under normal operating conditions. Warranty claims are processed within 5 business days with advance replacement available for critical production environments.
