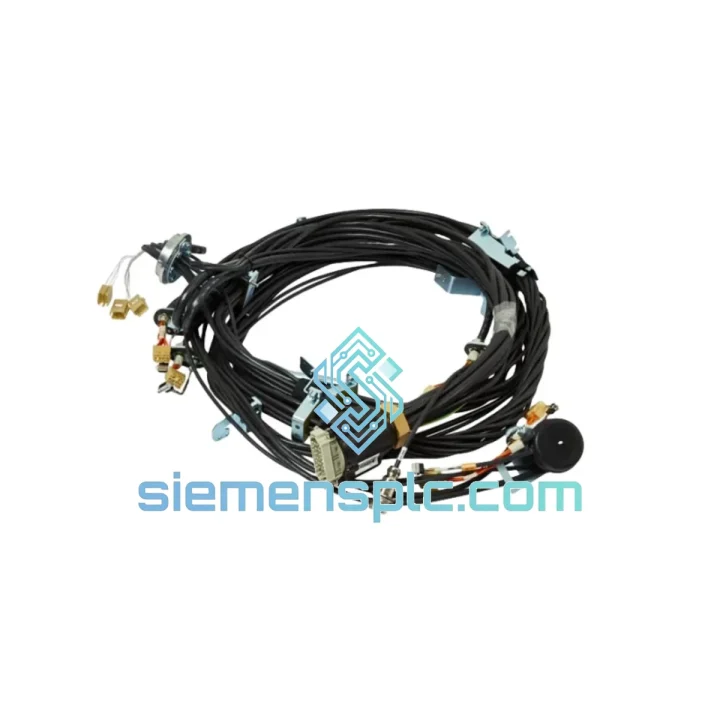

ABB 3HAC10828-10 Robot Cable Harness

ABB 3HAC10828-10 — Stop the Bleed: Get Your IRB 6600 / IRB 6640 Back Online Before the Next Shift

Your robot is down. The IRC5 controller is throwing axis fault codes. The production line is cold. Every minute that cell sits idle is money leaving the building — and your maintenance team is staring at a failed internal cable harness. This is exactly the scenario the ABB 3HAC10828-10 was built to resolve. We stock it. We ship it today. From Xiamen to your dock via DHL or FedEx express — because downtime doesn’t wait for standard lead times.

The 3HAC10828-10 is the OEM-specified full-axis internal wiring harness for the ABB IRB 6600 and IRB 6640 heavy-duty six-axis robot families. It routes motor power, resolver/encoder feedback, and brake control signals for all six axes through a single routed assembly inside the manipulator arm. No splicing. No adapters. No guesswork. Drop it in, reconnect the connectors, run the calibration routine, and your cell is back in production.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

How do you know the 3HAC10828-10 is the culprit? The IRC5 controller will typically surface one or more of the following fault codes before the harness fails completely:

• 50024 – Joint 1/2/3/4/5/6 resolver error: Intermittent resolver signal loss, often caused by a cracked or chafed conductor inside the harness routing through the wrist or base swivel. If the fault clears on power cycle but returns under motion, the harness is fatiguing.
• 50054 – Motor current error: A shorted or open motor power conductor in the harness will cause the drive to trip on overcurrent or no-load detection. Swap the harness before condemning the motor or drive unit.
• 38203 – SMB communication error: The Serial Measurement Board communicates through the harness. Intermittent SMB faults that correlate with specific axis positions are a classic sign of a flexing conductor break inside the cable bundle.
• Brake release failure on specific axes: The brake control conductors run through the same harness. If one axis brake won’t release or won’t hold, check harness continuity on the brake pair for that axis before pulling the motor.

Replacement procedure — field notes:

• Power down the robot and controller. Lock out / tag out. Confirm all axis brakes are engaged before releasing the arm.
• Document the existing harness routing with photos before removal — the routing path through the arm casting is specific and must be replicated exactly to avoid chafing on the new harness.
• The harness connectors at the base (Axis 1 motor and SMB side) and at the wrist (Axis 5/6 motor side) are keyed — they cannot be mis-mated, but confirm the locking tabs click fully home. A partially seated connector will cause intermittent faults that are extremely difficult to diagnose.
• After installation, run the Resolver Calibration routine from the FlexPendant (ABB Service menu → Calibration → Update Revolution Counters) before attempting any motion. Skipping this step will result in immediate axis limit faults.
• If the robot has accumulated significant operating hours, inspect the SMB battery at the same time — a low SMB battery will cause resolver data loss on power cycle and is frequently misdiagnosed as a harness fault.
• Firmware compatibility: the 3HAC10828-10 is a passive wiring assembly with no embedded firmware. It is compatible across all IRC5 software versions for IRB 6600 / IRB 6640. No firmware update is required after harness replacement.
• No DIP switch or address configuration is required for this harness. It is a direct OEM replacement with no parameterization.

Reliability in Harsh Conditions

The IRB 6600 and IRB 6640 are deployed in some of the most punishing industrial environments on the planet — automotive body shops with weld spatter and coolant mist, foundry cells with radiant heat and metal dust, and heavy palletizing lines with constant high-cycle vibration. The 3HAC10828-10 is engineered to survive in these conditions, not just tolerate them.

The harness conductors are individually shielded to reject electromagnetic interference from adjacent servo drives and welding power sources — a critical requirement in cells where the robot works alongside MIG/MAG welding equipment. The outer jacket and internal cable ties are rated for continuous operation at elevated temperatures consistent with the IRB 6600F foundry variant’s operating envelope. Connector housings are rated for the vibration profiles generated by a 500 kg payload robot operating at full speed and acceleration.

ABB’s internal qualification testing for harnesses of this class includes thermal cycling across the full operating temperature range, mechanical flex testing to simulate the cumulative bend cycles of a high-utilization robot over its service life, and vibration testing per IEC 60068-2-6. Units sourced through our supply chain are inspected against OEM dimensional and visual standards before dispatch. Refurbished units additionally undergo point-to-point continuity verification and insulation resistance testing at 500 VDC to confirm conductor integrity before they leave our facility.

Global Express Logistics

Stock is held at our Xiamen warehouse, positioned for rapid export to manufacturing hubs across Asia, Europe, the Middle East, and the Americas. When you confirm an order, here is what happens:

• Same day (order before 14:00 CST): Unit is pulled from shelf, inspected, packed in anti-static and moisture-barrier packaging, and handed to DHL or FedEx for collection.
• Export documentation: Commercial invoice, packing list, and certificate of origin are prepared in parallel with packing. For destinations requiring additional customs documentation, our logistics team handles it — you do not need to chase paperwork.
• Transit times (DHL/FedEx Express): Southeast Asia 1–2 days | Europe 3–4 days | Middle East 2–3 days | North America 3–5 days | South America 4–6 days. Times are business days from dispatch.
• Tracking: AWB number is sent to you within 2 hours of collection. You can track the shipment directly on the DHL or FedEx portal.
• Customs clearance: We declare accurate HS codes and commercial values. For destinations with import duty concerns, contact us before ordering — we can advise on documentation requirements.
• Emergency freight: For situations where standard express is not fast enough, contact us directly. We have access to next-flight-out freight options for genuine production emergencies.

We have shipped ABB spare parts to automotive OEMs, tier-1 suppliers, food and beverage plants, and MRO distributors across more than 40 countries. The logistics process is not new to us — it is a core part of what we do.
