Your IRC5 cabinet is down. The production line is stopped. Maintenance is on the phone. You need the ABB 3HAC14363-1 control module — not in two weeks, not “subject to availability” — now. We stock it. We ship it from Xiamen within hours of order confirmation via DHL Express or FedEx International Priority. This is not a catalog listing. This is a live inventory position.

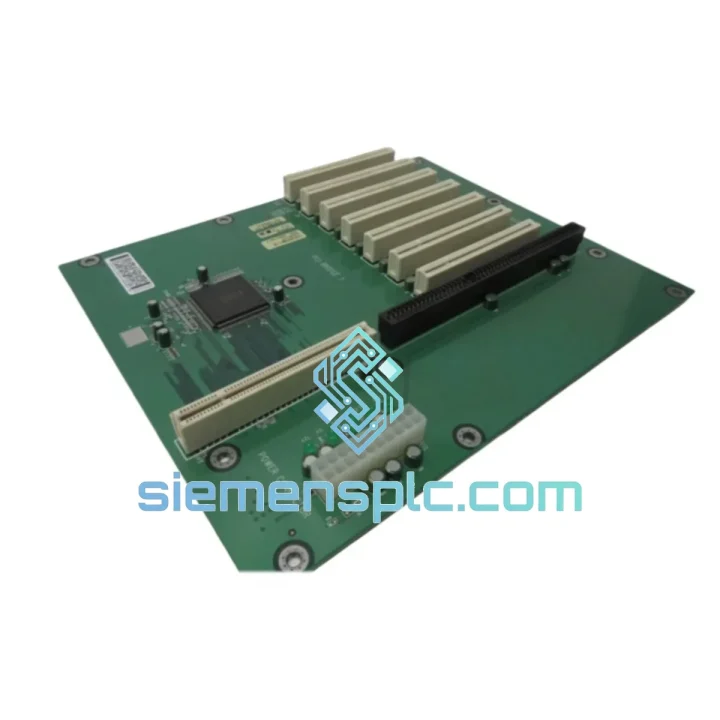

The 3HAC14363-1 is the main computer unit embedded in the ABB IRC5 single and dual cabinet controllers. It handles motion coordination, I/O arbitration, and the internal backplane communication that keeps your robot cell synchronized. When this board fails, nothing moves. No workarounds. No bypasses. The module must be replaced — and it must be the right revision.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field work on IRC5 cabinets, these are the failure patterns that point directly to a 3HAC14363-1 fault — and the steps that actually get the robot back online without a second trip.

Common Fault Indicators:

• Error 50024 / 50025 — Internal Computer Communication Failure: The main computer has lost contact with the drive system. Nine times out of ten, this is a board-level failure on the 3HAC14363-1, not a cable issue. Reseat the board first; if the error persists after a cold restart, the board is gone.
• Error 38203 — System Failure, Restart Required (loop): If the IRC5 controller enters a restart loop and never reaches the “Motors Off” state, the main computer is failing to complete its POST sequence. Do not waste time re-flashing RobotWare — replace the board.
• FlexPendant connects but shows blank task list: The TP communicates via the main computer. A partial board failure can leave the TP connected but unable to retrieve system tasks. Swap the 3HAC14363-1 before chasing software.
• Ethernet service port unreachable after power cycle: The service port is hosted on the main computer board. If ping fails immediately after boot with no firewall changes, the NIC on the 3HAC14363-1 has failed.

Replacement Procedure — Field Checklist:

• ☐ Power down the IRC5 cabinet fully. Isolate at the main breaker. Wait 60 seconds for capacitors to discharge.
• ☐ Document the existing board’s hardware revision label (Rev. A/B/C stamped on the PCB edge). The replacement must match or be a confirmed forward-compatible revision.
• ☐ Note the RobotWare version from the FlexPendant (if accessible before failure) or from the cabinet door label. Mismatched firmware will cause Error 50001 on first boot.
• ☐ Remove the board by releasing the two front-panel locking levers. Do not force — the backplane connector is keyed but fragile under lateral stress.
• ☐ Install the new 3HAC14363-1. Seat firmly until both levers click. Verify the board is flush with the adjacent modules.
• ☐ On first power-up, the IRC5 will perform a hardware discovery sequence. Allow 90–120 seconds before attempting FlexPendant connection.
• ☐ If the system prompts for RobotWare re-installation, use the original RobotWare USB key from the cabinet door pocket. Do not use a different version without ABB authorization.
• ☐ Verify all I/O signals and motion programs are intact via the FlexPendant program manager before releasing the cell to production.

Configuration Notes: The 3HAC14363-1 does not use DIP switches or manual addressing. The IRC5 system assigns module identity automatically via the backplane enumeration sequence. No jumper configuration is required. However, if you are replacing a board in a Dual Cabinet configuration, ensure the cabinet ID setting in the RobotWare system parameters matches the physical cabinet (Cabinet 1 vs. Cabinet 2) — this is a software parameter, not a hardware switch.

Reliability in Harsh Conditions

ABB designed the IRC5 control architecture for continuous-duty industrial environments — automotive body shops, foundry lines, paint booths, and food processing cells. The 3HAC14363-1 reflects that design philosophy. The board operates across a 0–55°C ambient range with conformal coating on critical circuit areas to resist moisture ingress and condensation during temperature cycling. Vibration tolerance is validated to IEC 60068-2-6 standards, covering the shock and resonance profiles typical of press-room and stamping-line installations where the IRC5 cabinet sits adjacent to high-tonnage machinery.

EMC shielding on the backplane interface prevents ground loop interference from large servo drives sharing the same cabinet enclosure — a failure mode we see frequently on third-party replacement boards that cut corners on shielding. The OEM 3HAC14363-1 maintains signal integrity on the internal bus even in environments with significant conducted noise on the 24 VDC supply rail. If your site has known power quality issues, pair the replacement with a check of the DSQC 639 power supply unit — a degraded supply is the second most common cause of premature main computer failure.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to DHL, FedEx, and UPS international gateways. For urgent orders, we use the following dispatch protocol:

• Order confirmed before 14:00 CST: Same-day dispatch via DHL Express or FedEx International Priority.
• Order confirmed after 14:00 CST: Next business morning dispatch, with tracking number issued by 10:00 CST.
• Transit times (estimated): Southeast Asia 1–2 days | Europe 3–4 days | North America 3–5 days | Middle East 3–4 days | Australia 3–4 days.
• Export documentation: Commercial invoice, packing list, and certificate of origin issued with every shipment. ESD-protective packaging with anti-static bag, foam insert, and outer carton rated for air freight handling.
• Customs clearance: We declare accurate HS codes and commercial values. We do not under-declare. This protects your import clearance timeline and avoids customs holds that defeat the purpose of express shipping.
• Tracking: AWB number sent via email and WhatsApp within 2 hours of dispatch. We monitor shipments proactively and flag any carrier exceptions before you need to ask.

For orders requiring same-day confirmation of stock availability and pricing, contact us directly. We respond to WhatsApp inquiries within 30 minutes during business hours (08:00–20:00 CST, Monday–Saturday).
