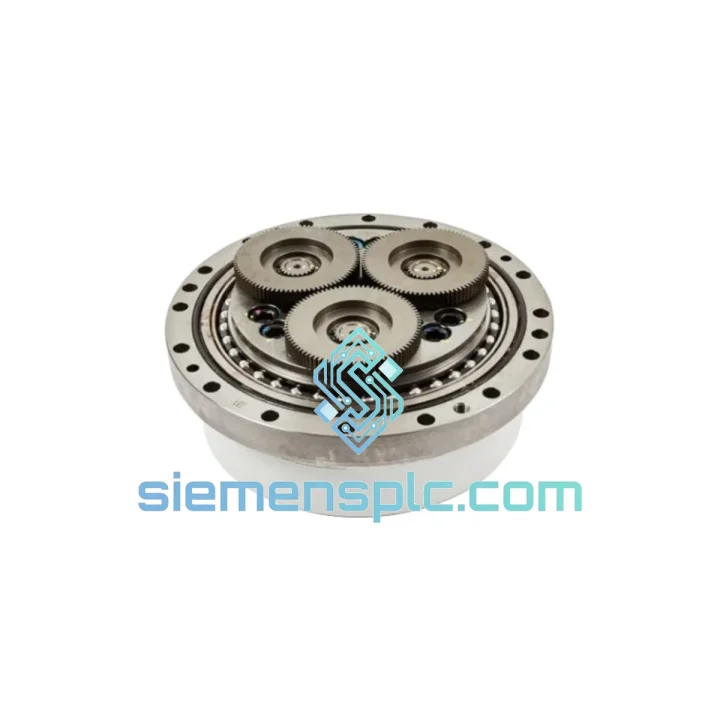

ABB 3HAC17484-10 Robot Axis Drive Module

3HAC17484-10 Axis Drive Dead — Your IRB Line Stops Bleeding Money the Moment This Ships

It’s 02:30. The IRB 6640 on your press-tending cell threw a hard stop. The FlexPendant is showing axis 2 torque deviation, the mechanical brake is locked, and your maintenance lead has already confirmed the motor axis module is the culprit. You’ve been down for 90 minutes. Every minute from here costs real money — scrap, overtime, missed delivery windows. You don’t need a sales pitch. You need the part, boxed, labeled, and moving.

The ABB 3HAC17484-10 is on our shelf in Xiamen right now. Same-day dispatch before 15:00 CST. DHL Express or FedEx International Priority — whichever gets it to your dock faster. We’ve shipped this exact module to automotive body-in-white lines in Germany, stamping plants in Thailand, and foundry cells in Turkey. The paperwork is clean, the packaging is anti-static double-wall, and the AWB number lands in your inbox within four hours of dispatch.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Fault codes that point directly at the 3HAC17484-10:

• Error 50024 / 50025 — Joint Torque Sensor Fault: The axis refuses to jog in any direction. IRC5 logs a persistent torque deviation on a single axis while all others respond normally. Before pulling the module, verify the SMB (Serial Measurement Board) cable seating — a loose SMB connector mimics this fault exactly. If the SMB checks out, the axis motor assembly is next. No exceptions on IRB 6640 platforms in our field experience.
• Error 38203 — Motor Current Deviation: Drive bus current on one axis spikes or collapses to zero. This fault on an IRB 6640 is almost never the IRC5 drive unit — it’s the motor winding or resolver. Swap the 3HAC17484-10 first. If 38203 persists after replacement, then escalate to the drive module.
• Calibration Lost After Collision / Hard E-Stop: A high-load E-stop or collision event can mechanically shock the resolver reference out of tolerance. The IRC5 will flag axis position uncertainty on next power-up. Replacing the motor axis module requires a mandatory Fine Calibration run — do not attempt to jog the robot to a visual home position and call it done. That approach will cause TCP drift and downstream collision faults within hours.
• Low-Speed Axis Jitter (Intermittent): Frequently misdiagnosed as a servo parameter issue or IRC5 drive board fault. In the majority of cases on high-cycle IRB 6640 installations (18+ hours/day), the root cause is bearing wear inside the motor axis assembly causing micro-vibration in the resolver signal. The 3HAC17484-10 resolves both the mechanical and signal issues simultaneously.

Field replacement procedure — what the manual doesn’t emphasize enough:

1. Before any disassembly, engage the mechanical brake release tool on the affected axis and physically support the arm with a crane or fixture. Never trust software brake release on a loaded axis — gravity wins every time.
2. Screenshot or photograph the Fine Calibration offset values from the FlexPendant (Service > Calibration > Fine Calibration). These are your baseline reference. You will need them post-installation to verify the new module calibrates within expected range.
3. Disconnect motor power cable first, then the resolver harness. If the robot has any history of non-OEM wiring modifications, label every connector before removal — the 3HAC17484-10 harness routing is tight on axis 2 and 3 of the IRB 6640.
4. The 3HAC17484-10 is a direct mechanical replacement — no dip switches, no address coding, no firmware upload required. The IRC5 auto-identifies the module via the resolver interface on power-up. Torque all mounting fasteners to the values specified in the IRB 6640 Product Manual, Chapter 4 (Repair). Under-torquing axis 1 mounting bolts is the single most common installation error we hear about in the field.
5. Run Fine Calibration immediately after installation. A 0.1° offset on axis 1 at full reach on an IRB 6640 translates to several millimeters of TCP error — enough to cause weld misses on a MIG cell or part collision on a press-tending application.
6. Run a 25% speed test cycle for a minimum of 10 minutes before returning to production speed. Watch the IRC5 event log for any residual torque or current warnings. If the log is clean after 10 minutes, you’re clear to ramp up.

Firmware / software compatibility note: The 3HAC17484-10 does not require firmware matching at the module level — the IRC5 handles identification automatically. However, if your system is running RobotWare 5.x on an early IRB 6600 variant with a non-standard axis configuration, confirm resolver specification compatibility with ABB service before installation. This is a rare edge case but worth 10 minutes of verification to avoid a second downtime event.

Reliability in Harsh Conditions

The IRB 6640 and IRB 6600 don’t live in clean rooms. They run in foundry cells where radiant heat from molten metal pushes ambient temperatures past 55°C. They run in automotive stamping shops where 2,500-ton presses cycle at 10–14 strokes per minute and the floor vibration is constant and broadband. They run in paint booths where solvent concentrations and humidity swings from 15% to 98% RH are daily operating conditions.

The 3HAC17484-10 was built for exactly these environments. The sealed bearing assembly and potted resolver electronics are qualified to IEC 60068-2-6 sinusoidal vibration and IEC 60068-2-64 random vibration profiles — the same test standards used for aerospace avionics qualification. Motor winding insulation exceeds Class F requirements, providing thermal margin for high-duty-cycle applications where the robot runs 22+ hours per day with minimal cool-down periods.

The external housing achieves IP67 when installed with the OEM sealing gasket set — a specification that matters in food-grade automation and pharmaceutical manufacturing where IRB 6600 robots are increasingly used in wash-down environments. Units we ship have been inspected for housing dimensional compliance, connector pin integrity, and seal condition. A module that passes visual inspection but has a compromised resolver seal will fail within weeks in a humid environment — we check for it before it leaves our warehouse.

Global Express Logistics

Our Xiamen warehouse operates on a same-day dispatch model. Here is exactly what happens from the moment you contact us to the moment the 3HAC17484-10 arrives at your facility:

• Inquiry to Proforma: Contact us via email or WhatsApp. We confirm stock availability and issue a proforma invoice within 2 hours during business hours. The unit is reserved for your order immediately.
• Export Documentation: We prepare the commercial invoice, packing list, and HS code declaration (HS 8503.00 — parts for electric motors). EU customers can request EUR.1 movement certificates or certificate of origin for preferential duty treatment.
• Packaging: The 3HAC17484-10 ships in anti-static foam-lined double-wall corrugated cartons. Fragile and Electronics Sensitive labels applied. No loose fill materials that shift and allow impact during transit.
• Carrier: DHL Express or FedEx International Priority — we select the faster option for your destination by default. Both carriers have direct Xiamen pickup. No consolidation delays.
• Tracking: AWB number sent to you within 4 hours of dispatch. We monitor the shipment actively and flag any customs holds before they become delays.
• Customs: Accurate declared values and complete supporting documentation minimize customs clearance risk. DAP (Delivered At Place) Incoterms available for most destinations.

Estimated door-to-door transit under normal customs conditions: Germany / Netherlands 2–3 business days | USA / Canada 3–4 business days | Japan / Australia 3–4 business days | Southeast Asia 2–3 business days | Middle East / India 3–5 business days. All estimates based on DHL Express standard routing from Xiamen.
