ABB 3HAC5883-1 AC Servo Motor – IRB6640 Series

ABB 3HAC5883-1 — Axis Drive Servo Motor for IRB6640 Industrial Robot Platform

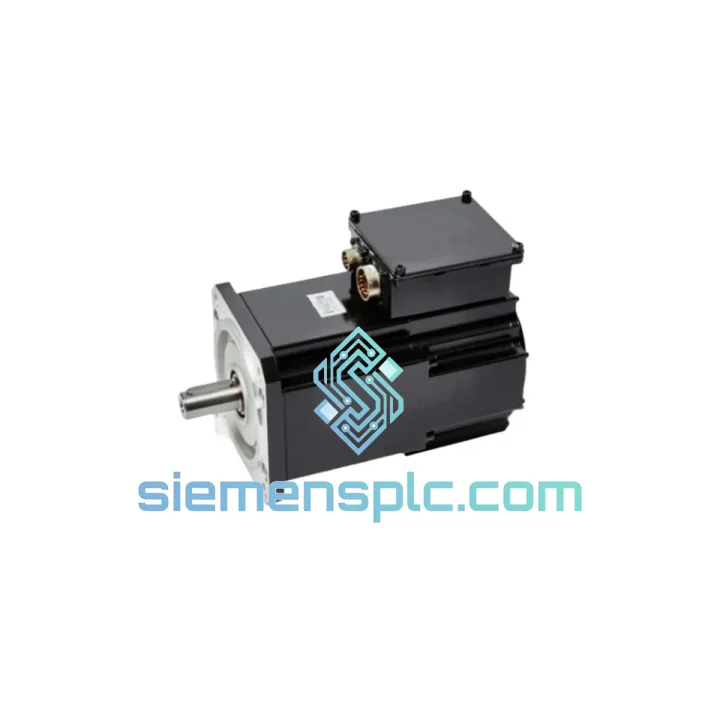

The ABB 3HAC5883-1 is a purpose-engineered AC servo motor integrated into the ABB IRB6640 six-axis industrial robot series. This unit carries the alternate catalog reference 3HAC033163-005 and the motor model code HDS100-0413ARKBS, all three designations pointing to the same physical assembly. Within the IRB6640 kinematic chain, this motor occupies one of the primary load-bearing axes — typically Axis 1 or Axis 2 — where continuous torque demand, thermal stability, and resolver signal fidelity are non-negotiable operating parameters. The motor interfaces directly with the ABB IRC5 drive system via a resolver feedback loop and a 24 VDC electromagnetic brake circuit, forming a closed-loop position control architecture that sustains sub-millimeter repeatability across multi-shift production cycles.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 3HAC5883-1 is built around a permanent-magnet AC synchronous motor topology, which eliminates brush wear and the associated commutation noise that would otherwise degrade resolver signal quality over time. The resolver — a transformer-based absolute position transducer — generates sine and cosine output voltages proportional to rotor angular position. Unlike optical encoders, the resolver contains no active electronics, making it inherently immune to vibration-induced data corruption and capable of operating reliably in the high-EMI environment generated by the IRC5 drive cabinet’s IGBT switching stages (typical switching frequencies of 4–8 kHz).

The electromagnetic brake uses a spring-applied, electrically-released design. When the 24 VDC supply is present, the brake disc is held open against spring force, allowing free shaft rotation. On power loss or emergency stop, the spring engages the friction disc within milliseconds, providing deterministic axis holding without relying on motor torque. This architecture satisfies IEC 60204-1 safety requirements for gravity-loaded axes and eliminates the risk of axis drop during E-stop events on the IRB6640’s vertical-load configurations.

The keyway shaft interface transmits torque through mechanical form-fit rather than friction alone. In high-cycle applications — automotive spot welding lines running 1,000+ cycles per shift — this prevents the micro-slip that would accumulate angular error in a friction-only coupling. The keyway geometry is dimensionally controlled to ABB’s internal tolerance stack, ensuring that replacement motors achieve the same mechanical zero reference as the original unit without requiring full kinematic recalibration beyond the standard revolution counter update procedure.

EMC design on the motor housing includes a continuous conductive shield path from the motor body to the robot arm structure, providing a low-impedance return path for high-frequency common-mode currents induced by the drive’s PWM output. This shielding strategy, combined with the resolver’s inherent noise immunity, keeps position feedback error below the IRC5 controller’s 0.01° resolution threshold even in environments with adjacent welding equipment generating transient fields exceeding 10 V/m.

System Integration Benefits

• Drop-in mechanical compatibility: The 3HAC5883-1 matches the original mounting flange, shaft diameter, keyway dimensions, and connector pinout of the factory-installed motor, eliminating the need for adapter plates or wiring modifications during replacement.
• Resolver-based absolute feedback: The built-in resolver retains position data through power cycles without battery backup, reducing maintenance overhead and eliminating the battery-failure failure mode present in encoder-based systems.
• Deterministic brake engagement: Spring-applied brake design guarantees axis hold within a fixed mechanical response time regardless of controller state, supporting SIL 2 safety function implementation on gravity-loaded axes.
• IRC5 plug-and-play integration: The motor’s resolver signal conditioning is matched to the ABB SMB board’s input impedance and excitation frequency, requiring no parameter changes in the IRC5 drive configuration beyond the standard axis calibration sequence.
• Thermal headroom for high-duty cycles: Class F insulation (155 °C rated) provides a substantial margin above the motor’s continuous operating temperature in standard IRB6640 duty cycles, extending winding life in high-ambient foundry or press-shop environments.
• Reduced unplanned downtime: Genuine ABB construction with factory-controlled winding resistance tolerances ensures that the IRC5 motor model parameters (resistance, inductance, back-EMF constant) remain within the drive’s auto-tuning acceptance window, preventing nuisance faults on first power-up after replacement.
• Diagnostic transparency: The IRC5 controller continuously monitors resolver signal amplitude and phase balance. A genuine 3HAC5883-1 with factory-calibrated resolver windings maintains signal quality within the controller’s diagnostic thresholds, enabling early detection of bearing wear or winding degradation before catastrophic failure.
• Cross-variant platform coverage: A single 3HAC5883-1 part number covers all IRB6640 payload variants (/185, /205, /235), simplifying spare parts inventory management for facilities operating mixed IRB6640 fleets.

Quality Assurance & Global Logistics

Every 3HAC5883-1 unit supplied by siemensplc.com is sourced through verified ABB distribution channels and undergoes incoming inspection covering resolver signal output verification, brake engagement force measurement, shaft runout check, and insulation resistance testing at 500 VDC. Units that do not meet ABB’s published acceptance criteria are quarantined and not offered for sale. A test record is available upon request for each serialized unit.

Packaging follows IEC 60068-2 transport vibration and shock profiles: the motor assembly is secured in custom-cut EPE foam within a double-wall corrugated carton, with desiccant sachets maintaining internal humidity below 40% RH. Anti-static bags are used where resolver connector exposure is present. Each shipment includes a packing list, commercial invoice, and certificate of origin for customs clearance.

Logistics operations are based in Xiamen, China — a major international port city with direct air freight connections to Frankfurt, Amsterdam, Chicago O’Hare, and Dubai. Standard dispatch is within 1–3 business days of payment confirmation. Typical transit times: Europe 3–5 days (DHL Express), North America 4–6 days (FedEx International Priority), Southeast Asia 2–3 days (DHL or local express). Sea freight consolidation is available for multi-unit orders where air freight cost is a constraint. All shipments are fully insured and tracked from dispatch to delivery confirmation.
