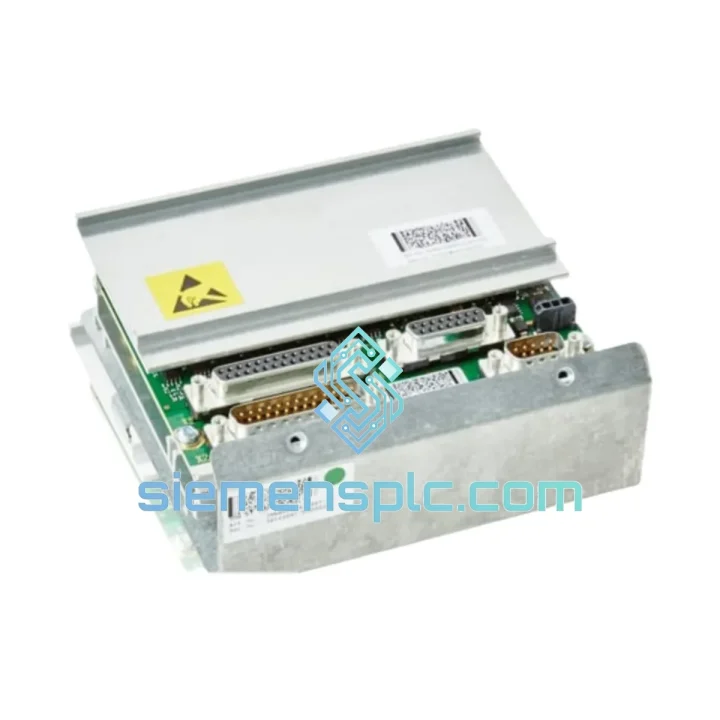

ABB 3HNA006142-001 Robot Controller Module – IRC5 Series

ABB 3HNA006142-001 IRC5 Robot Controller Control Module — Backplane Architecture and Motion Coordination Logic

The ABB 3HNA006142-001 is a dedicated control module engineered for deployment within the ABB IRC5 robot controller platform. Its primary function is to serve as the deterministic command-and-feedback bridge between the IRC5 main computer unit and the drive subsystem, managing axis interpolation data, safety arbitration signals, and real-time servo loop closure across up to six coordinated motion axes. In multi-robot cell configurations, this module participates in the MultiMove coordination framework, where synchronized path execution across independent manipulators demands sub-millisecond inter-axis timing consistency.

Unlike generic interface boards, the 3HNA006142-001 is designed to operate within ABB’s proprietary internal backplane bus architecture — a high-speed parallel communication fabric that transfers motion setpoints, encoder feedback, and fault status between controller nodes at cycle times below 4 ms. This deterministic bus topology eliminates the jitter inherent in fieldbus-based alternatives, making the module a non-negotiable component in applications where path deviation tolerance is measured in tenths of a millimeter.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 3HNA006142-001 integrates several hardware design disciplines that distinguish it from commodity control boards operating in comparable voltage and communication envelopes.

Backplane Bus Arbitration: The module interfaces with the IRC5 internal backplane through a dedicated arbitration layer that manages bus access priority among the main computer, drive modules, and I/O nodes. This arbitration logic prevents bus contention during simultaneous axis command updates — a failure mode that in lesser architectures produces position lag accumulation across multi-axis paths. The hardware implements a time-division multiplexing scheme with fixed slot allocation per axis, ensuring that no single axis can monopolize bus bandwidth during high-acceleration trajectory segments.

EMC Shielding Architecture: The PCB layout employs a four-layer stackup with dedicated ground planes separating the digital logic domain from the analog feedback signal traces. Differential pair routing is used for encoder signal lines, with matched impedance termination to suppress common-mode noise induced by adjacent drive switching transients. Ferrite bead filters are placed at the backplane connector interface to attenuate high-frequency conducted emissions from the drive section — a design choice that maintains signal integrity at encoder resolutions exceeding 1,000,000 counts per revolution.

Functional Safety Integration: The module participates in the IRC5 safety chain by processing Electronic Position Switch (EPS) data and Safe Speed Monitor (SSM) signals. Hardware-level safety logic operates on a separate processing path from the motion control logic, with cross-channel comparison executed at each servo cycle. This dual-channel architecture satisfies the requirements of IEC 62061 SIL 2 and ISO 13849-1 PLd for safety-rated axis monitoring functions, without requiring external safety relays for basic speed and position limiting.

Thermal Management: Component placement follows a thermal gradient strategy — high-dissipation ICs are positioned adjacent to the module’s aluminum heatspreader interface, while temperature-sensitive analog components are located in the cooler peripheral zones. This layout sustains stable operation at ambient temperatures up to 55°C without active cooling, consistent with the thermal envelope of sealed IRC5 cabinet installations in foundry and press-shop environments.

System Integration Benefits

• Zero-Reconfiguration Replacement: The 3HNA006142-001 is an OEM-exact replacement for the IRC5 control module slot. No firmware re-flashing or axis parameter re-entry is required in standard swap scenarios, provided the main computer unit retains its configuration backup — reducing planned maintenance windows to under 30 minutes.
• MultiMove Compatibility: The module supports ABB’s MultiMove feature, enabling coordinated path execution across two independent manipulators sharing a single IRC5 controller. This is essential in arc welding and assembly cells where a positioner and a robot must maintain a fixed spatial relationship throughout the weld trajectory.
• Deterministic Real-Time Response: The fixed 4 ms servo cycle enforced by the backplane bus architecture guarantees that axis position updates arrive at the drive modules within a bounded time window, eliminating the variable latency that fieldbus-based motion systems introduce under high network load conditions.
• Integrated Diagnostic Transparency: The module exposes fault codes and status registers to the IRC5 main computer via the backplane, enabling RobotStudio and the FlexPendant to display axis-level diagnostics without external instrumentation. Engineers can isolate faults to the control module, drive module, or motor feedback path without disassembling the controller cabinet.
• Broad IRC5 Family Coverage: A single 3HNA006142-001 unit serves as a compatible spare across the IRC5 Single Cabinet, IRC5 Compact, and IRC5 Panel Mounted variants, reducing the number of unique spare part numbers a maintenance team must stock for a mixed-robot facility.
• Safety Chain Continuity: Because the module processes EPS and SSM signals in hardware, replacing it restores the full safety chain integrity of the IRC5 controller — including speed monitoring zones and position-based safety outputs — without requiring re-validation of external safety relay circuits.
• Reduced MTTR in Critical Cells: In automotive body-in-white lines where a single robot cell stoppage can halt downstream assembly, having a verified 3HNA006142-001 spare on-site reduces Mean Time to Repair from multi-day sourcing delays to a sub-hour swap procedure.
• Compatibility with RAPID Program Integrity: The control module does not store RAPID task programs; these reside on the main computer unit. A module swap therefore does not risk program data loss, and the restored controller resumes production from the last saved program state without operator re-entry.

Quality Assurance & Global Logistics

Every 3HNA006142-001 unit dispatched from our Xiamen, China facility undergoes a structured pre-shipment verification protocol. Visual inspection covers PCB surface condition, connector pin integrity, and housing for mechanical damage. Functional bench testing validates backplane communication handshake behavior and safety signal processing against IRC5 controller reference specifications. Serial numbers and batch records are logged for full traceability, supporting quality audit requirements in ISO 9001-certified procurement environments.

Units are packaged in IEC 61340-compliant ESD-safe anti-static bags, enclosed in rigid foam-lined cartons rated for international air freight handling. Export documentation — including commercial invoice, packing list, and HS code classification — is prepared for each shipment to facilitate customs clearance in the EU, North America, Southeast Asia, and the Middle East. Standard dispatch carriers include DHL Express, FedEx International Priority, and UPS Worldwide Expedited, with typical transit times of 3–7 business days to major industrial hubs. All units carry a 12-month warranty from the date of shipment, covering manufacturing defects and verified functional failures under normal operating conditions.
