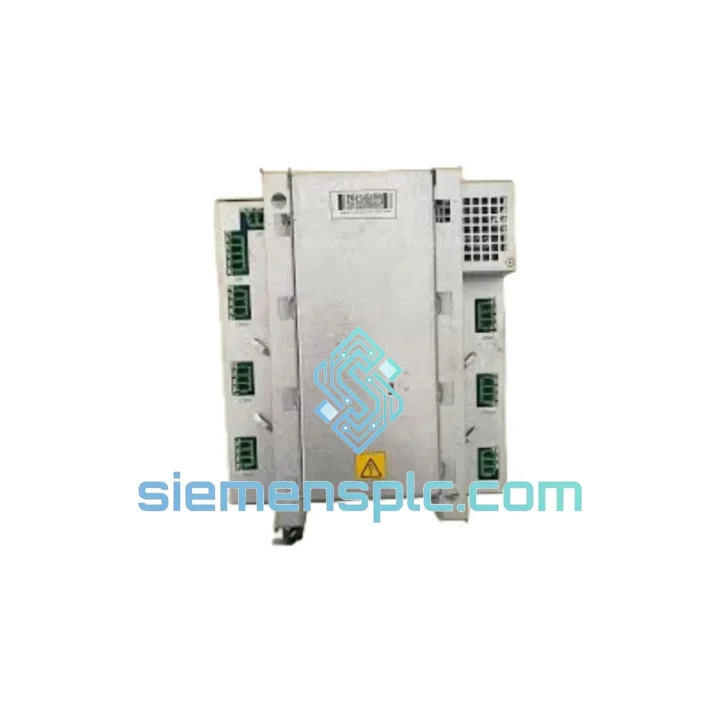

ABB 3HNA006144-001 Process Interface Board

ABB 3HNA006144-001 — Stop the Clock on Your Downtime. Ship Today.

Your IRC5 controller just threw a fault. The line is cold. Every minute costs real money — tooling idle, operators standing, production targets slipping. The ABB 3HNA006144-001 Robotics Process Interface Board is the exact card that bridges your IRC5 controller to external process equipment, and when it fails, nothing downstream works. We stock it. We ship it today from Xiamen. That’s the only thing that matters right now.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The 3HNA006144-001 sits in the IRC5 controller’s process interface slot. When it degrades or fails, you’ll typically see one or more of the following before a hard fault locks the system:

• Event Log 50056 / 50057 — Process interface communication timeout. The controller cannot handshake with the board. First check the backplane connector seating before condemning the card — vibration loosens these over time.
• Event Log 38203 — I/O unit unreachable. If the error clears on a cold restart but returns within minutes under load, the board’s onboard DC/DC converter is thermally failing. Replacement is the only fix.
• Intermittent E-Stop faults with no mechanical cause — The 3HNA006144-001 routes safety-rated signals. A degraded trace or failing optocoupler on this board can inject ghost E-Stop signals. Do not chase the safety circuit wiring until you have ruled out this card.
• Process signal drift on analog I/O channels — If your weld current feedback or force sensor readings are drifting without any change in the external sensor, the ADC section of this board is suspect.

Replacement procedure (field-verified steps):

1. Execute a controlled program stop — never hot-swap this board. IRC5 does not support live board replacement on the process interface slot.
2. Power down the controller via the main disconnect. Wait a full 60 seconds for the capacitor bank to discharge before opening the cabinet.
3. Ground yourself with a wrist strap before touching the board. ESD damage to this card is permanent and non-warranty.
4. Note the slot position — the 3HNA006144-001 occupies a dedicated slot in the IRC5 drive module rack. Photograph the cable routing before disconnecting.
5. Seat the replacement board firmly until both retention clips engage. A partially seated board will cause the same Event Log 50056 fault you started with.
6. On first power-up, the IRC5 system software will auto-detect the new board and re-initialize the process interface parameters. No manual address configuration or DIP switch setting is required for this specific card — the IRC5 handles addressing via the internal system bus automatically.
7. Verify the RobotWare version on your controller. The 3HNA006144-001 is compatible with RobotWare 5.x and 6.x. If your system runs RobotWare 5.12 or earlier, confirm the firmware build date — boards manufactured after Q3 2019 include a revised FPGA image that is backward compatible but requires the controller to complete a full cold-start initialization cycle on first boot.
8. Run a full I/O diagnostic from the FlexPendant (Control Panel → I/O → View All Signals) and confirm all process signals are reading correctly before resuming production.

Reliability in Harsh Conditions

The ABB 3HNA006144-001 is not a commercial-grade PCB dressed up for industrial use. It was designed from the ground up for the IRC5 controller environment — which means it was validated against the same conditions your production floor throws at it every shift.

Vibration is the silent killer of interface boards in robotic cells. Weld spatter, press impacts, and conveyor harmonics transmit through the cabinet structure and work connector solder joints loose over years of operation. ABB specifies this board to IEC 60068-2-6 (sinusoidal vibration) and IEC 60068-2-27 (mechanical shock), with conformal coating on the PCB to prevent conductive contamination from coolant mist and metalworking fluids that inevitably find their way into even well-sealed cabinets.

Thermal cycling is the second failure mode. Automotive body shops run three shifts. The IRC5 cabinet heats up, cools down, heats up again — every day, every week, for years. The 3HNA006144-001 uses industrial-temperature-rated capacitors and a thermally managed DC/DC converter specifically because ABB’s field data showed that consumer-grade components on earlier interface boards were failing at the 3–5 year mark in high-cycle environments. The current revision extends that service life significantly under normal operating conditions.

Humidity and condensation are the third threat, particularly in facilities that open large bay doors in winter or run high-pressure wash-down cycles near the robot cell. The conformal coating on this board provides a meaningful barrier, but it is not a substitute for proper cabinet sealing. If your IRC5 cabinet shows signs of moisture ingress, address the root cause — a new board will not survive the same environment that killed the last one.

Global Express Logistics

Our dispatch operation runs out of Xiamen, China — one of the most connected export hubs in Asia, with direct DHL and FedEx gateway access that puts your replacement part on a plane the same day the order is confirmed.

Here is how the process works from the moment you contact us:

1. Order confirmation — Send your part number, quantity, and delivery address to [email protected] or via WhatsApp. We confirm stock and issue a proforma invoice within 2 hours during business hours (CST).
2. Payment & export documentation — We prepare the commercial invoice, packing list, and HS code declaration (HS 8537.10 for this board) simultaneously with payment processing. No waiting for paperwork after payment clears.
3. Packing — The 3HNA006144-001 ships in a rigid anti-static shielding bag inside a double-wall corrugated carton with foam inserts. The board does not move in transit. We have shipped thousands of PCBs to automotive plants, steel mills, and food processing facilities across four continents without a single transit damage claim on properly packed shipments.
4. Dispatch — DHL Express or FedEx International Priority, depending on destination and your preference. Tracking number issued within 1 hour of pickup scan.
5. Delivery windows — Europe: 3–5 business days. North America: 4–6 business days. Southeast Asia: 2–4 business days. Middle East: 4–7 business days. Australia: 5–7 business days. These are real-world averages, not marketing estimates.
6. Customs clearance — We include a detailed commercial invoice with accurate HS codes and declared values. For customers in the EU, we can provide EORI-compatible documentation. For US imports, we include the necessary CBP entry data. Customs delays caused by incomplete documentation are not something we pass to our customers.

If your situation is a genuine production emergency, tell us. We have expedited same-day pickup arrangements with both carriers for critical shipments, and we can coordinate with your local customs broker if you have one standing by.

Contact Information

Ready to order or need a stock confirmation before committing?

Email: [email protected]
WhatsApp: +86 18359268345
