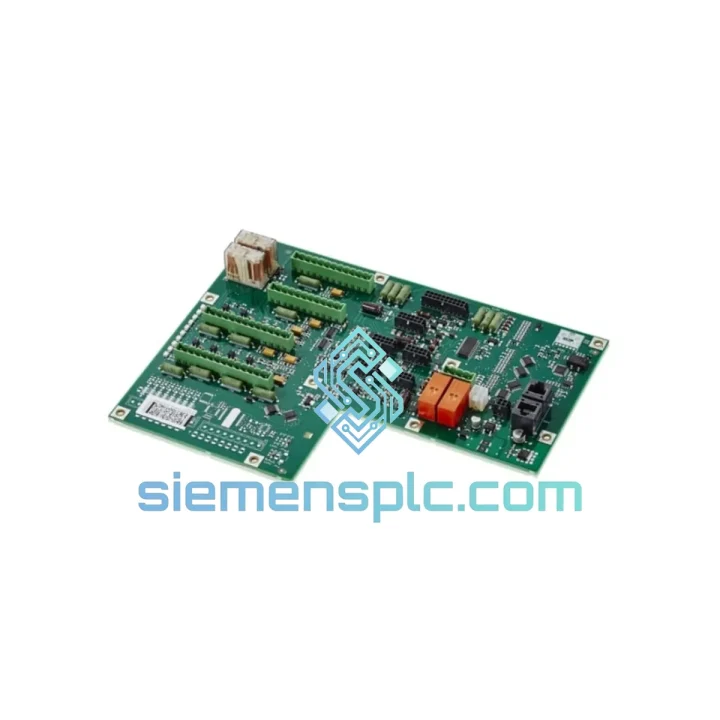

ABB 3HNA010059-001/02 Digital I/O Module – IRC5 Series

ABB 3HNA010059-001/02 — Discrete Signal Interface Architecture in IRC5 Robot Control Systems

The ABB 3HNA010059-001/02 is a factory-original Digital I/O Module designed for integration within ABB’s IRC5 robot controller platform. Board revision AA16C0778, paired with firmware assembly 3HAC021455-001/05, defines a discrete signal processing unit that handles the bidirectional exchange of 24 VDC logic-level signals between the IRC5 main computer unit (MCU) and field-level devices — sensors, safety relays, actuators, and external PLCs. Within the IRC5 control architecture, this module occupies a dedicated I/O slot on the internal DeviceNet-based I/O bus, where it operates under deterministic scan-cycle management governed by RobotWare’s real-time kernel.

The module’s role in the control loop is not passive. Each digital input channel passes through an optocoupler isolation stage rated at 500 V AC isolation voltage, decoupling field-side transients from the controller’s logic domain. Output channels are driven by solid-state switching elements with integrated short-circuit detection, reporting fault states directly to the RobotWare system log without requiring external monitoring hardware. This architecture eliminates the need for interposing relay banks in most standard I/O configurations, reducing panel footprint and mean-time-to-repair (MTTR) in production environments.

The /02 revision of this board incorporates engineering change order (ECO) improvements over the /01 baseline, including revised trace routing for improved EMC margin and updated firmware addressing edge-case signal debounce behavior under high-frequency input toggling. It maintains backward mechanical and electrical compatibility with all IRC5 controller variants that accept the /01 revision, making it the preferred replacement unit for both new installations and field upgrades.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 3HNA010059-001/02 board implements a two-domain signal architecture that physically separates the field-side 24 VDC logic from the controller’s internal 3.3 V / 5 V logic rails. Each input channel routes through a dedicated optocoupler — a phototransistor-based isolation device — that converts the field voltage into a logic-level signal without any conductive path between the two domains. This galvanic barrier, rated at 500 V AC, prevents ground loop currents and common-mode transients originating from inductive field loads (solenoids, motor starters, relay coils) from propagating into the IRC5 MCU’s signal processing circuitry.

On the output side, solid-state switching elements replace the mechanical relay contacts found in earlier-generation I/O boards. This eliminates contact bounce, extends service life to tens of millions of switching cycles, and enables sub-millisecond output response times that mechanical relays cannot achieve. Each output channel incorporates a current-sensing circuit that monitors load current in real time. When a short-circuit or overload condition is detected, the channel is latched off within microseconds and a fault flag is written to the IRC5 system event log — accessible via FlexPendant or RobotStudio — without requiring any external protection fuse or manual reset procedure.

The /02 board revision introduced revised PCB trace geometry in the high-frequency signal paths, reducing parasitic inductance and improving conducted EMC performance in accordance with IEC 61000-4-4 (electrical fast transient) and IEC 61000-4-5 (surge immunity) test criteria. The signal debounce filter parameters were also recalibrated in firmware 3HAC021455-001/05 to handle input signals with rise times as short as 50 µs without generating false-positive edge detections — a relevant improvement for high-speed proximity sensor inputs in press-tending and stamping applications.

System Integration Benefits

• Zero Re-parameterization on Swap: The module’s part number and firmware revision are recognized automatically by RobotWare during controller boot. No manual I/O configuration is required when replacing a failed unit of the same revision, reducing unplanned downtime to the physical swap duration only.
• Deterministic Scan-Cycle Alignment: The module synchronizes its I/O update cycle with the IRC5 real-time kernel’s task scheduler, ensuring that digital input states are sampled and output commands are applied within a fixed, predictable time window — critical for coordinated multi-robot cell operations.
• Integrated Diagnostic Transparency: Channel-level fault states (short circuit, open load, supply undervoltage) are reported as structured event codes in the RobotWare system log, enabling maintenance teams to isolate faults to the specific channel without oscilloscope-level diagnostics.
• Reduced Panel Wiring Complexity: Solid-state outputs with integrated protection eliminate the need for external fuse blocks and interposing relays on most standard I/O circuits, reducing terminal count and wiring labor in new installations.
• EMC-Hardened Signal Paths: The /02 revision’s improved PCB layout and optocoupler isolation architecture meet IEC 61000-4 series immunity requirements, making the module suitable for deployment adjacent to variable-frequency drives, servo amplifiers, and high-current welding power sources.
• Dual-Reference Spare Parts Management: Both the board revision (AA16C0778) and the assembly number (3HAC021455-001/05) are silk-screened on the PCB, enabling unambiguous identification during inventory audits and warranty claims without relying solely on the top-level part number.
• Backward Compatibility with /01 Installations: The /02 revision is mechanically and electrically interchangeable with /01-revision boards in all standard IRC5 slot configurations, allowing fleet-wide standardization on the latest revision without controller reconfiguration.
• RobotStudio Offline Validation: The module’s I/O configuration can be modeled and validated in ABB RobotStudio prior to physical installation, enabling pre-commissioning verification of signal assignments, safety interlock logic, and RAPID program I/O references.

Quality Assurance & Global Logistics

Every unit of the ABB 3HNA010059-001/02 supplied through siemensplc.com is sourced as a genuine ABB factory-original component. Units are procured through verified industrial distribution channels with full traceability documentation, including manufacturer lot codes and board revision markings that match ABB’s published spare parts catalog entries. Prior to dispatch, each module undergoes a structured pre-shipment inspection protocol: visual examination of PCB surface and connector integrity, verification of board revision silk-screen markings (AA16C0778), and continuity checks on all I/O connector pins.

Packaging follows IEC/JEDEC J-STD-033 electrostatic discharge (ESD) handling standards. Each unit is sealed in a conductive anti-static bag, placed in foam-lined rigid packaging, and labeled with part number, revision, and serial number for receiving inspection at the customer’s facility. A certificate of conformity is available upon request for regulated industries including automotive Tier 1 suppliers and aerospace ground support equipment manufacturers.

Logistics operations are managed from Xiamen, China, with access to DHL Express, FedEx International Priority, and UPS Worldwide Expedited services. In-stock units are dispatched within 1–2 business days of order confirmation. Full export documentation — commercial invoice, packing list, and HS code 8537.10 classification — is prepared for every international shipment. Customs clearance support and door-to-door tracking are standard. Delivery to major industrial hubs in Europe, North America, Southeast Asia, and the Middle East typically completes within 3–7 business days from Xiamen.
