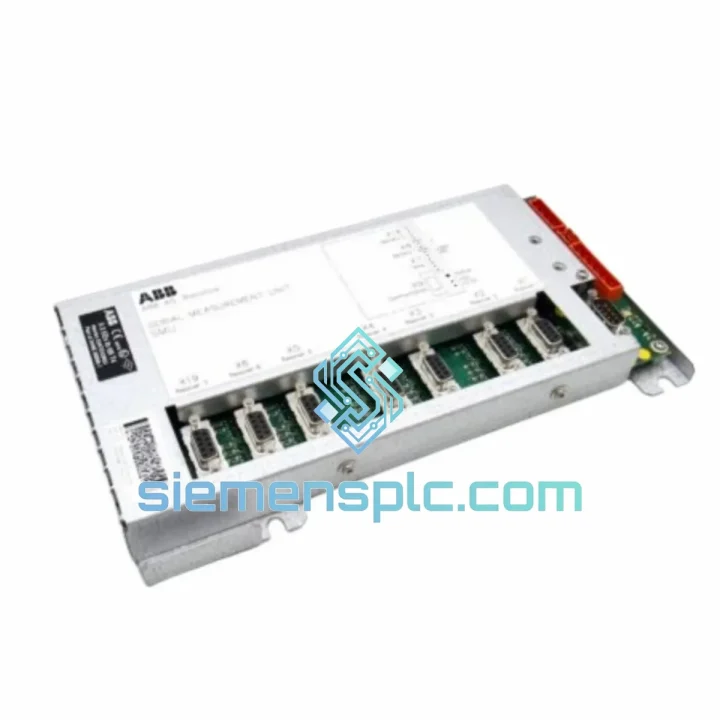

ABB 3HNA013638-001 Servo Measurement Unit – SMU-03 IRC5

ABB 3HNA013638-001 SMU-03 Servo Measurement Unit: Axis Feedback Architecture in IRC5 Drive Systems

The ABB 3HNA013638-001 SMU-03 is the Servo Measurement Unit installed within the ABB IRC5 robot controller platform. Its function is deterministic: it acquires raw encoder and resolver signals from each servo axis, conditions those signals at the hardware level, and delivers digitized position data to the IRC5 drive and computation subsystems. Without a correctly functioning SMU-03, the closed-loop servo control chain is broken — axis position becomes undefined, and the controller cannot execute motion commands. This module is not a peripheral; it is a load-bearing element of the IRC5 feedback architecture.

The SMU-03 designation indicates the third hardware revision of the Servo Measurement Unit family. Revision 03 addresses field-reported signal integrity issues present in earlier SMU variants, particularly under high-frequency noise conditions generated by adjacent drive switching stages. Engineers specifying spare-pool inventory for IRC5 fleets should standardize on the SMU-03 revision to eliminate revision-mixing ambiguity during maintenance events.

📦 Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The SMU-03 operates at the intersection of the analog sensor domain and the digital control domain. Understanding its internal logic clarifies why component-level substitution with non-OEM alternatives carries measurable risk.

Signal Conditioning Front-End: Encoder signals arriving from servo motors traverse cable runs that can exceed 10 meters inside a robot cell. Over this distance, differential pair signals accumulate common-mode noise from adjacent power cabling and drive switching transients. The SMU-03 incorporates a differential receiver front-end with common-mode rejection ratios (CMRR) specified to suppress noise up to the levels generated by the IRC5’s own drive stages. This is not a generic op-amp stage — it is tuned to the impedance characteristics of ABB’s servo motor encoder cables.

Digitization and Interpolation: For axes using incremental encoders, the SMU-03 performs quadrature decoding and interpolation to achieve position resolution finer than the native encoder line count. For resolver-equipped axes, an onboard resolver-to-digital converter (RDC) samples the resolver excitation and response signals, computing shaft angle with 16-bit or higher resolution. The RDC’s excitation frequency is synchronized to the IRC5 control cycle to prevent aliasing artifacts in the position data stream.

EMC Design: The PCB layout of the SMU-03 follows IEC 61800-3 Category C2 EMC practices. Analog signal traces are routed on inner layers, shielded by ground planes on adjacent layers. Ferrite beads are placed at the connector entry points to suppress high-frequency conducted interference before it reaches the signal conditioning circuitry. The board’s ground plane is split to isolate the analog reference from the digital return path, preventing digital switching noise from coupling into the measurement chain.

Watchdog and Fault Detection: The SMU-03 implements hardware-level signal validity monitoring. If an encoder signal falls outside expected amplitude or frequency bounds — indicating cable break, connector failure, or motor encoder damage — the module asserts a fault flag on the IRC5 internal bus within one control cycle. This deterministic fault propagation allows the IRC5 safety system to initiate a controlled stop before a position error accumulates to a level that could cause mechanical damage or safety hazard.

Thermal Management: The module’s power dissipation is low by design — the signal conditioning and digitization functions are implemented in low-power CMOS logic. This allows the SMU-03 to operate within the IRC5 card cage’s passive convection cooling envelope without requiring dedicated heatsinking, even at the upper operating temperature limit of 55 °C.

System Integration Benefits

• Deterministic Position Feedback Latency: The SMU-03 delivers digitized axis position data to the IRC5 main computer within a fixed, bounded time window each control cycle. This determinism is a prerequisite for the IRC5’s real-time motion interpolator to maintain path accuracy at speeds up to 250 mm/s on small robots and higher on large-payload models.
• Multi-Axis Synchronization: A single SMU-03 handles feedback from multiple axes simultaneously, with all channels sampled in a synchronized manner. This eliminates inter-axis timing skew in the position data, which would otherwise introduce path errors in coordinated multi-axis moves.
• Transparent Diagnostics via RobotWare: Fault codes generated by the SMU-03 are mapped directly into RobotWare’s event log with axis-specific identifiers. Maintenance personnel can isolate a failing encoder channel to a specific axis number without oscilloscope measurement, reducing mean time to repair (MTTR).
• External Axis Support: The SMU-03 architecture accommodates external positioner axes beyond the standard six robot axes. This allows a single spare SKU to cover both standard robot configurations and extended-axis installations, simplifying spare-parts inventory management.
• Backward Compatibility with Earlier SMU Revisions: SMU-03 is a drop-in hardware replacement for SMU-01 and SMU-02 in the majority of IRC5 configurations, allowing fleet-wide standardization on a single revision without controller reconfiguration.
• No Firmware Flashing Required: Unlike some drive-level components, the SMU-03 does not carry axis-specific firmware that must be programmed post-installation. The module is recognized and configured automatically by the IRC5 main computer during startup, reducing replacement time to the physical swap and cable reconnection.
• ESD-Robust Connector Interface: Input connectors on the SMU-03 incorporate TVS diode protection on each signal pin. This provides a first line of defense against electrostatic discharge events during cable connection in field maintenance conditions where ESD protocols may not be fully observed.
• Reduced Spare-Pool Complexity: Because the SMU-03 covers both incremental encoder and resolver input types within a single hardware design, facilities operating mixed robot models — some with encoders, some with resolvers — can maintain a single SMU-03 spare rather than stocking separate measurement units for each sensor type.

Quality Assurance & Global Logistics

Every ABB 3HNA013638-001 SMU-03 unit dispatched from our Xiamen facility undergoes a structured pre-shipment verification process:

• Part Number Authentication: Physical label, PCB silkscreen, and internal markings are cross-referenced against ABB’s published part number documentation to confirm genuine 3HNA013638-001 / SMU-03 identity. No relabeled or remarked units are accepted.
• Visual and Mechanical Inspection: Board-level examination for component damage, solder joint integrity, connector pin condition, and absence of corrosion or thermal stress marks.
• Electrical Pre-Test: Where test fixtures are available, modules are powered at 24 V DC and signal output integrity is verified prior to packaging.
• ESD-Safe Packaging: Units are sealed in anti-static bags, placed in foam-lined cartons, and labeled with handling instructions compliant with IPC/JEDEC J-STD-033.
• Traceability Records: Batch and inspection records are retained and available on request for regulated industries including automotive and aerospace.
• 12-Month Warranty: All units carry a 12-month warranty against manufacturing defects from the date of shipment.

Logistics from Xiamen, China are handled via DHL Express, FedEx International Priority, and UPS Worldwide Expedited. Standard in-stock orders are dispatched within 1–3 business days. Export documentation — including commercial invoice, packing list, and certificate of origin — is prepared for all international shipments. Customs HS code classification assistance is available on request.
