ABB 3HNA023282-001 PIB-03: Process Interface Board Architecture and Control Loop Function

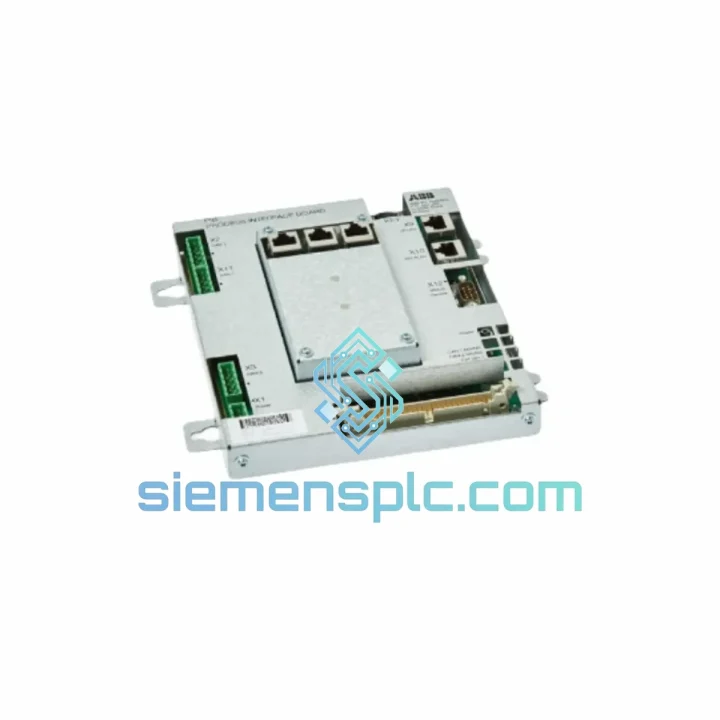

The ABB 3HNA023282-001 PIB-03 is a dedicated Process Interface Board engineered for deployment within ABB IRC5 and S4C+ robot controller cabinets. Its primary function is to serve as the electrical and logical bridge between the robot controller’s main computer unit and external process equipment — including welding power sources, dispensing systems, and peripheral I/O devices that operate outside the standard robot I/O bus. Within the control loop, the PIB-03 handles real-time process signal conditioning, galvanic isolation of field-level signals, and bidirectional data exchange with the controller’s process application software layer.

Unlike generic I/O expansion cards, the PIB-03 is tightly coupled to ABB’s process application packages — specifically Arc Welding (ArcWare), Spot Welding, and PickMaster. The board carries dedicated analog and digital channels mapped directly to process-specific parameters: weld current reference, arc voltage feedback, wire feed speed command, and process status flags. This hardware-level mapping eliminates the latency overhead of software-layer signal remapping, enabling the controller to maintain deterministic process timing within the microsecond range required for closed-loop arc welding control.

The board occupies a defined slot within the IRC5 controller’s internal backplane and communicates with the main computer unit via ABB’s proprietary internal bus. Signal integrity across this bus is maintained through differential signaling and on-board termination resistors, ensuring reliable data transfer even in electrically noisy production environments such as automotive body-in-white welding cells.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Opto-Isolation Architecture on Digital I/O Channels
The PIB-03 implements opto-isolation on its field-facing digital I/O channels. Each channel passes signal current through an LED element of an optocoupler, with the phototransistor output referenced to the controller’s internal logic ground. This arrangement provides a galvanic barrier rated to withstand transient voltage differentials that are common in welding environments — where high-frequency inverter switching in the welding power source generates conducted and radiated interference that can reach several hundred volts peak on unshielded field wiring. The opto-isolation barrier prevents these transients from propagating into the controller’s logic circuitry, protecting the main computer unit and the backplane bus from damage and data corruption.

Analog Signal Conditioning
Process analog channels on the PIB-03 incorporate input filtering and signal conditioning stages before the analog-to-digital conversion path. Low-pass filtering attenuates high-frequency noise components superimposed on the analog reference and feedback signals — a critical requirement in arc welding applications where the welding arc itself generates broadband electromagnetic noise. The filtered signal is then sampled by the on-board ADC at a rate sufficient to support the closed-loop bandwidth required by ABB’s arc welding process control algorithms.

EMC Design Considerations
The board layout follows controlled-impedance PCB design practices, with ground planes providing shielding between analog and digital circuit sections. Decoupling capacitors are placed at the power supply pins of all active components to suppress power rail noise. The board’s edge connector and field-side connectors are positioned to minimize the loop area of high-current signal paths, reducing susceptibility to magnetically induced interference. These design measures collectively allow the PIB-03 to maintain specified performance in environments classified up to EMC immunity level III per IEC 61000-4 series standards.

Backplane Bus Communication Integrity
Communication between the PIB-03 and the IRC5 main computer unit occurs over ABB’s internal backplane bus using differential signaling. Differential pairs reject common-mode noise induced by the shared ground reference within the controller cabinet. On-board bus termination resistors are matched to the characteristic impedance of the backplane traces, preventing signal reflections that would otherwise cause data errors at the high clock rates used by the bus protocol. This architecture ensures that process data — including real-time weld parameter feedback — is transferred to the main computer unit with deterministic latency, supporting the controller’s real-time task scheduler.

System Integration Benefits

• Deterministic process signal timing: Hardware-level channel mapping to ABB process application parameters eliminates software remapping latency, maintaining closed-loop process control timing within the microsecond range.
• Galvanic isolation of field signals: Opto-isolated digital I/O channels prevent welding transients and ground loop currents from reaching the controller’s logic circuitry, reducing unplanned downtime caused by electrical interference.
• Plug-and-play controller integration: The PIB-03 is recognized automatically by ABB RobotWare upon installation, with no manual parameter configuration required for standard process application setups.
• Process diagnostic transparency: Dedicated process status channels provide the controller with real-time feedback on welding power source state, arc establishment, and fault conditions, enabling the robot program to respond to process events within a single task cycle.
• Analog feedback accuracy: On-board signal conditioning and ADC provide accurate digitization of weld current and voltage feedback, supporting adaptive welding algorithms that adjust parameters in real time based on measured arc conditions.
• Compatibility with ABB process packages: Native support for ArcWare, Spot Welding, and PickMaster process packages ensures that all process-specific RAPID instructions and I/O signals are correctly mapped without custom configuration.
• Reduced wiring complexity: Centralized process I/O on a single board reduces the number of discrete wiring connections between the controller and external process equipment, lowering installation time and the probability of wiring errors.
• Long-term spare parts availability: As a catalogued ABB spare part, the 3HNA023282-001 is traceable through ABB’s global spare parts system, supporting maintenance planning for production lines with extended service life requirements.
