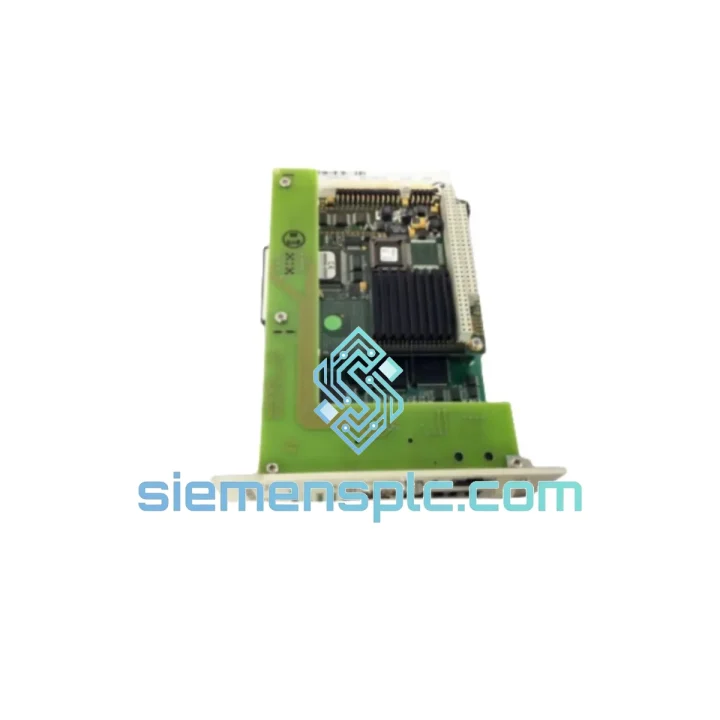

ABB 560CMU04 1KGT011300R0001 DCS CPU Module

ABB 560CMU04 — Line Down? This Module Ships from Xiamen Before Your Next Shift Change

You’re not browsing. Your Freelance DCS rack is dark, the process is on hold, and someone upstairs is already asking for an ETA. The ABB 560CMU04 (P/N: 1KGT011300R0001) is the central processing and communication backbone of the ABB 560-series platform — when it fails, nothing downstream works. We have it. It’s on the shelf in Xiamen. It goes out today.

This is not a lead-time quote. This is not “subject to availability.” We maintain physical stock of the 560CMU04 specifically because it sits at the heart of continuous-process DCS architectures where a 72-hour procurement cycle is simply not acceptable. Same-day dispatch for orders confirmed before 14:00 CST. DHL Express or FedEx International Priority to your door in 2–4 business days.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After a decade of field deployments across petrochemical, power generation, and food processing plants, the 560CMU04 fails in a narrow set of predictable patterns. Knowing which one you’re dealing with saves you from replacing the wrong component.

Fault Pattern 1 — ERR LED solid red, I/O bus silent: The internal fieldbus arbitration controller has failed. This is a hardware-level fault; no firmware action recovers it. Verify 24 VDC supply at the rack bus connector first (use a calibrated meter, not the panel indicator). If rail voltage is within spec, the CMU is the confirmed failure point. Order now.

Fault Pattern 2 — Diagnostic codes F0x21 or F0x22 in Control Builder: These map to internal CPU watchdog trips, typically caused by power rail ripple exceeding the module’s tolerance or capacitor degradation in units with more than 8 years of runtime. Measure ripple on the 24 VDC supply with an oscilloscope — anything above 200 mV peak-to-peak is suspect. If the supply is clean, the module’s internal filter capacitors have failed. Replace the CMU.

Fault Pattern 3 — Module visible in Control Builder but I/O scan stalls after warm restart: Corrupted non-volatile configuration memory. Perform a full cold power cycle: rack power off, wait 45 seconds minimum (not 10 — the internal capacitors need time to discharge fully), then restore power. If the fault returns within two cold cycles, the NV memory is unrecoverable. The module must be replaced.

Fault Pattern 4 — New module not detected after installation: Almost always a rotary address switch mismatch. The 560CMU04 uses physical address dials on the faceplate. The replacement unit ships with switches at position 00. Before removing the failed module, photograph the switch positions. Match them exactly on the new unit before seating it in the rack. A one-position error will cause the backplane to ignore the module entirely.

Step-by-Step Replacement Protocol:

• Export and save the current Control Builder F project to external media before touching the rack. Verify the export completed without errors.
• Photograph the rotary address switch positions on the failed module. Record the setting in your maintenance log.
• Power down the affected rack segment. The 560CMU04 does not support live extraction without a configured redundancy pair — do not attempt hot-swap on a simplex installation.
• Discharge static before handling. Use a wrist strap connected to the panel earth. ESD damage to the CMU’s fieldbus transceiver is silent at installation and manifests as intermittent CRC errors under thermal load — the hardest fault to diagnose remotely.
• Set the rotary address switches on the replacement module to match the photographed positions before insertion.
• Seat the module until both retention latches engage with an audible click. A partially seated module will power up and generate intermittent bus errors that mimic network faults.
• Restore rack power. Allow 90 seconds for the module’s self-test sequence to complete before initiating a Control Builder connection. Connecting early can force the module into a diagnostic loop requiring another cold restart.
• Download the project. Confirm all I/O channel statuses are green in the diagnostic view. Run a 15-minute observation period before releasing the process to production.

Firmware Compatibility Note: If your system runs Control Builder F version 8.x or below, the replacement module’s firmware revision must be verified against your existing installation. ABB does not guarantee cross-generation backward compatibility. Provide us with your current firmware string at order placement — we will confirm the stock unit’s revision before dispatch at no additional charge.

Reliability in Harsh Conditions

The 560CMU04 was not designed for a climate-controlled server room. It was built for the kind of environments where “harsh” is the operating baseline — offshore platforms, open-air substations, chemical processing halls, and mining headframes where temperature swings, vibration, and airborne contamination are daily realities.

ABB’s conformal coating on the PCB assembly provides a physical barrier against moisture, salt fog, and corrosive atmospheric compounds. The module is validated to IEC 60068-2-6 for sinusoidal vibration — relevant for any installation within structural proximity to compressors, turbines, or reciprocating pumps. The -20°C to +70°C operating range covers cold-climate startups and non-air-conditioned tropical enclosures without derating.

The backplane connector’s EMC shielding and internal ground plane architecture suppress conducted interference from variable-frequency drives and large motor starters sharing the same panel infrastructure. In field experience, the 560CMU04 is among the more durable central modules in its class. Failures are almost exclusively age-related or driven by external power quality degradation — not inherent design weaknesses.

Every unit we dispatch has been stored in a climate-controlled, ESD-safe warehouse environment. We do not source from decommissioned equipment or uncontrolled secondary markets. Factory anti-static packaging is intact on every shipment. What arrives at your site is what left the ABB factory.

Global Express Logistics

Our warehouse is in Xiamen — a tier-one export hub with direct DHL Express and FedEx International Priority lanes serving every major industrial region. When your line is down, carrier selection and routing are not afterthoughts.

• Cut-off time: Orders confirmed before 14:00 CST ship the same day. The module leaves Xiamen that afternoon.
• Transit time: 2–4 business days to Europe, North America, the Middle East, Southeast Asia, and Australia via DHL Express or FedEx International Priority. We select the carrier based on current lane performance to your destination — you get the fastest route, not the most convenient one for us.
• Documentation package: Commercial invoice, packing list, and certificate of conformity accompany every shipment. REACH compliance documentation, customs pre-clearance letters, or additional origin certificates are available on request — advise us at order placement so we can prepare them before dispatch.
• Tracking: AWB number delivered within 2 hours of dispatch. We monitor active shipments — if a carrier delay appears in the system, we notify you proactively. You will not need to chase us for updates.
• Customs declaration: Declared at actual transaction value, every time. Under-declaration creates customs holds that eliminate the advantage of express shipping. We do not do it.

We have shipped to refineries in the Gulf, automotive stamping plants in Central Europe, LNG terminals in Southeast Asia, and open-pit mining operations in South America. The process is identical every time: verified stock, same-day dispatch, documented shipment, end-to-end tracking.
