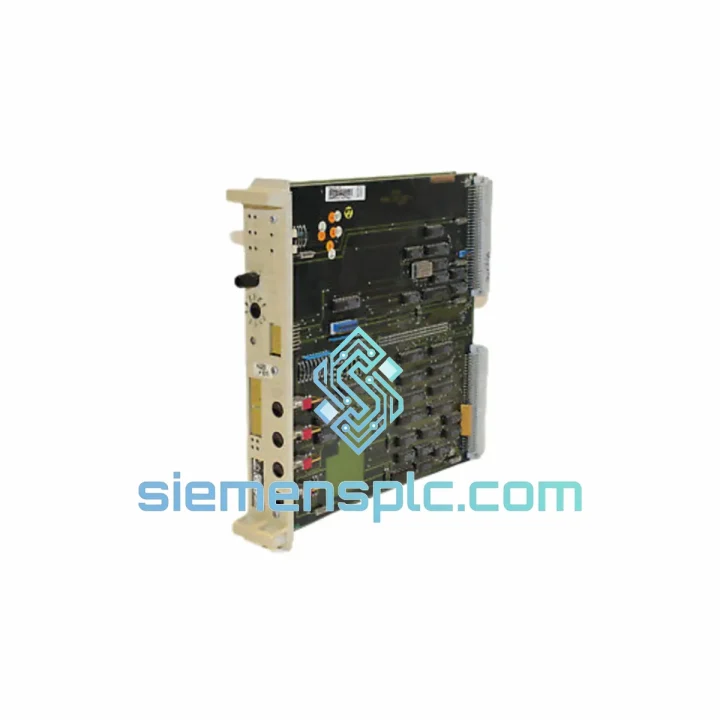

ABB 57310001-CC DCS CPU Control Board – AC450 Series

ABB 57310001-CC: Central Processing Unit for AC450 Distributed Control System Architecture

The ABB 57310001-CC is the primary CPU control board within the AC450 DCS controller station — a rack-mount processing module responsible for executing deterministic control strategies, managing backplane I/O communication, and coordinating inter-module data exchange across the S-bus architecture. Deployed across power generation, oil & gas, chemical processing, and pulp & paper industries, this module forms the computational backbone of one of ABB’s most field-proven distributed control platforms.

Unlike general-purpose embedded controllers, the 57310001-CC is purpose-built for continuous process environments where scan-cycle jitter, communication latency, and fault recovery time are engineering constraints — not afterthoughts. Its hardware design reflects the operational demands of facilities running 24/7 with zero tolerance for unplanned downtime.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 57310001-CC operates as the master node on the AC450 S-bus backplane — a synchronous, time-division multiplexed bus that arbitrates data transfer between the CPU and all installed I/O modules within the same rack. The S-bus protocol enforces a fixed-priority arbitration scheme: the CPU board holds permanent bus mastership during the control scan cycle, while I/O modules respond in a deterministic polling sequence. This architecture eliminates bus contention latency, ensuring that analog input acquisition, digital output assertion, and internal register updates complete within a bounded time window regardless of I/O module count.

From an EMC standpoint, the 57310001-CC PCB layout employs a multi-layer ground plane strategy. The digital processing layer is electrically isolated from the backplane interface layer via a dedicated ground pour, reducing capacitive coupling of high-frequency switching noise onto the S-bus signal lines. Ferrite bead arrays are placed at the backplane connector interface to attenuate common-mode noise above 10 MHz — a design choice consistent with IEC 61000-4-4 (electrical fast transient) and IEC 61000-4-6 (conducted disturbance) compliance requirements.

The redundancy arbitration logic embedded in the 57310001-CC uses a hardware watchdog mechanism independent of the main processor. In a 1:1 redundant CPU configuration, both the primary and standby boards continuously exchange heartbeat frames across a dedicated synchronization link. If the primary board fails to assert its heartbeat within the configured timeout window (typically 50–200 ms, application-dependent), the standby board asserts bus mastership within one scan cycle — a switchover mechanism that does not require software intervention and produces no detectable output disturbance in properly configured control loops.

Non-volatile memory on the 57310001-CC stores the application program, configuration parameters, and last-known I/O states. On power restoration following an unplanned outage, the module performs a structured restart sequence: self-diagnostic POST, backplane enumeration, I/O module handshake, and warm-start program execution — restoring process control without requiring operator intervention at the engineering workstation.

System Integration Benefits

• Deterministic Scan Cycle Execution: The S-bus arbitration model guarantees a fixed worst-case scan time regardless of I/O load, enabling closed-loop PID tuning with predictable derivative response — critical for temperature, pressure, and flow control loops with tight setpoint tolerances.
• Bumpless CPU Redundancy Switchover: Hardware-level failover with no software handshake required. Output modules maintain their last commanded state during the switchover interval, preventing process upsets in continuous operations such as reactor temperature control or compressor surge protection.
• Integrated Diagnostic Transparency: The 57310001-CC exposes module health status, scan cycle time, memory utilization, and communication error counters to the engineering workstation via the ABB DCS Highway. Maintenance engineers can trend these parameters over time to identify degradation before it causes a fault.
• Direct Drop-in Compatibility: Hardware and firmware compatibility across AC450 rack revisions eliminates re-engineering costs during replacement. No I/O reconfiguration, no re-wiring, no application program modification — swap the board, restore from backup, resume operation.
• Long Platform Lifecycle Support: The AC450 platform was designed for 15–20 year operational lifecycles. Stocking a spare 57310001-CC eliminates dependency on ABB’s production schedule and protects against extended lead times during emergency procurement scenarios.
• Multi-Controller Network Coordination: Via the ABB DCS Highway (MasterBus 300 or INSUM), multiple AC450 controller stations exchange process data at the network level. The 57310001-CC manages this inter-controller communication without consuming scan cycle budget, maintaining local control loop performance independent of network traffic load.
• Engineering Workstation Integration: Full compatibility with ABB’s Master engineering tools for online program monitoring, force-set of I/O points, trend logging, and alarm configuration — without requiring a dedicated hardware interface adapter beyond standard Ethernet.
• Warm-Start Recovery Architecture: Following power interruption, the module’s structured restart sequence restores process control autonomously. This reduces mean time to recovery (MTTR) in facilities without 24/7 on-site DCS engineering staff.

Quality Assurance & Global Logistics

Every ABB 57310001-CC unit dispatched from our Xiamen, China facility undergoes a structured pre-shipment verification protocol. Visual inspection confirms PCB integrity, connector pin condition, and component completeness against ABB’s published bill of materials. A functional power-on test verifies module initialization, self-diagnostic completion, and backplane communication handshake. Authenticity is confirmed via ABB part number markings, hardware revision labels, and date codes consistent with genuine ABB manufacturing documentation.

Units are packaged in IEC 61340-compliant anti-static bags, placed within foam-lined rigid cartons sized to prevent movement during transit. For international shipments, outer cartons are sealed with tamper-evident tape and labeled with part number, serial number, and destination customs data to facilitate smooth clearance.

Logistics from Xiamen port to major industrial hubs: DHL Express to Europe (3–5 business days), FedEx International Priority to North America (4–6 business days), and regional courier services across Southeast Asia (2–4 business days). Incoterms available: EXW, FOB Xiamen, CIF, DAP. All shipments include full tracking and are covered by cargo insurance. Export documentation — commercial invoice, packing list, certificate of origin, and test report — is provided as standard.

A 12-month functional warranty covers all units from the dispatch date. Warranty claims are processed within 5 business days of receipt of the returned unit. Replacement units are dispatched from stock where available, minimizing warranty resolution time for critical spare applications.
