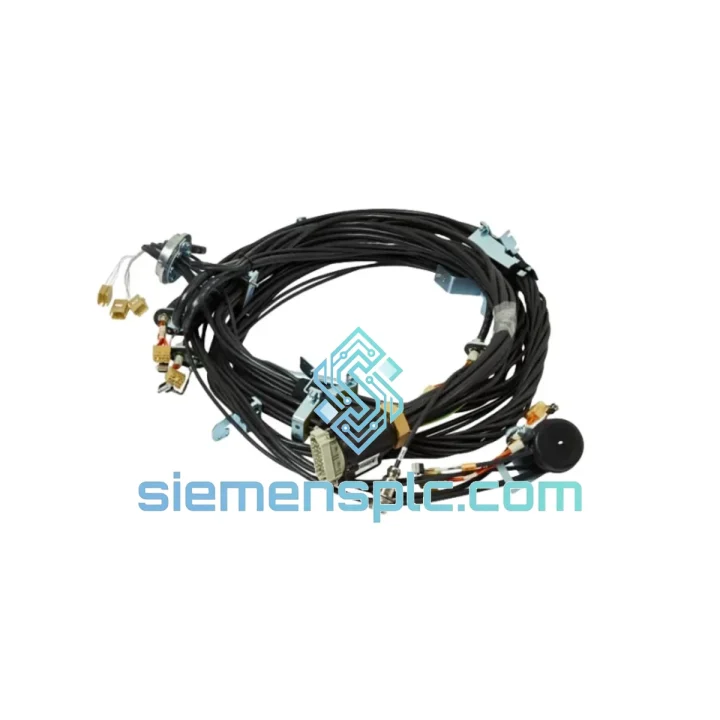

ABB 63HAC037534-001 Internal Cable Harness Assembly — Axis Signal Backbone for IRB4601 & IRB1600 Manipulators

The ABB 63HAC037534-001 is a factory-original internal cable harness assembly engineered for deployment within the ABB IRB4601 and IRB1600 robot manipulator families. This component functions as the primary electrical conduit between the robot’s axis drive units and the IRC5 controller, routing encoder feedback signals, servo power conductors, brake control lines, and SMB (Serial Measurement Board) communication channels through the manipulator’s internal axis structure. Its failure mode is not gradual — intermittent signal dropout on any single conductor strand triggers axis fault codes, corrupts position feedback loops, and forces emergency stop conditions that halt production cells entirely.

Within the IRB4601 platform — ABB’s high-payload arc welding and material handling robot rated at 60 kg payload and 2.05 m reach — the internal cable harness must endure continuous torsional cycling across axes 1 through 6, thermal gradients from welding arc proximity, and mechanical vibration from high-inertia load changes. The IRB1600 series, a compact 6-axis robot with 6–10 kg payload variants and cycle times optimized for assembly and machine tending, imposes high-frequency flexing demands on the harness routing through its slender forearm structure. ABB’s harness design for both platforms uses multi-strand copper conductors with individual foil shielding per signal pair, an overall braided shield for common-mode noise rejection, and a polyurethane outer jacket rated for continuous operation in environments with cutting fluid mist and weld spatter.

The part numbers 63HAC037534-001, 63HAC070081-001, and 63HAC021828-001 represent distinct harness assemblies serving different axis zones and robot configurations within these platforms. Each carries a unique connector pinout and conductor count matched to its specific axis position. Substitution between these part numbers without engineering verification will result in connector mismatch or signal assignment errors — always confirm the axis location and robot serial number before procurement.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 63HAC037534-001 harness is not a passive wiring bundle — it is a precision signal-routing assembly whose electrical architecture directly determines the integrity of the IRC5 controller’s closed-loop axis control. Several hardware design characteristics are worth examining in detail.

Differential Signal Pair Shielding: ABB routes resolver or encoder feedback signals as differential pairs with individual foil shields terminated at the SMB end. This topology provides 40–60 dB of common-mode noise rejection at frequencies up to 10 MHz, which is critical in arc welding environments where the welding power source generates broadband conducted and radiated EMI. Without this shielding architecture, encoder count errors accumulate and manifest as axis position drift — a fault that is difficult to distinguish from mechanical backlash without oscilloscope analysis of the raw encoder signal.

Brake Control Line Isolation: Each axis brake control conductor is routed with dedicated return path conductors rather than sharing a common ground return. This prevents ground loop currents — generated when multiple brake solenoids switch simultaneously — from inducing voltage transients on adjacent signal conductors. In a 6-axis robot executing a coordinated motion path, all six brakes may engage within a 20 ms window during an emergency stop, making this isolation architecture essential for preventing spurious encoder fault codes during E-stop events.

Mechanical Strain Relief Design: At each connector interface, ABB incorporates molded strain relief boots that distribute bending stress over a defined radius rather than concentrating it at the connector backshell. This extends the fatigue life of the conductor strands at the highest-stress termination points. In high-cycle applications — such as automotive spot welding cells running 1,000+ cycles per shift — this design detail is the primary determinant of harness service life.

SMB Bus Conductor Impedance Matching: The Serial Measurement Board communication conductors are routed as a controlled-impedance pair matched to the RS-485 bus impedance used by the IRC5 SMB protocol. Impedance discontinuities caused by damaged insulation or improper repair splices introduce signal reflections that corrupt axis position data at the SMB, triggering 50xxx-series fault codes in the IRC5 event log.

System Integration Benefits

• Zero-Recalibration Replacement: As a genuine ABB OEM assembly, the 63HAC037534-001 maintains the original connector pinout and conductor assignment, allowing direct swap without axis recalibration or software parameter modification — critical for minimizing MTTR in production environments.
• Deterministic Encoder Feedback: Precision shielding and controlled-impedance signal routing preserve encoder signal integrity, ensuring the IRC5 motion controller receives clean position data with sub-microsecond timing accuracy across all six axes simultaneously.
• EMC Compliance Retention: Replacing a damaged harness with a genuine OEM assembly restores the robot’s CE-marked EMC performance envelope, which is a compliance requirement in EU-regulated manufacturing facilities and increasingly enforced in automotive Tier 1 supplier audits.
• Fault Code Elimination: The majority of ABB 70xxx-series (axis computer) and 50xxx-series (SMB) fault codes in IRC5 systems trace to harness degradation. A verified OEM replacement eliminates the root cause rather than masking symptoms through parameter adjustment.
• Thermal Stability in Welding Environments: The PUR outer jacket maintains flexibility and insulation resistance at the elevated ambient temperatures found inside welding cell enclosures, preventing the insulation cracking that accelerates in standard PVC-jacketed cables above 50°C.
• Brake System Reliability: Isolated brake control conductors ensure that axis holding brakes engage and release with the timing precision required for coordinated multi-axis motion — preventing the micro-positioning errors that occur when brake engagement timing is corrupted by ground loop interference.
• Predictive Maintenance Compatibility: Harness replacement at defined service intervals (typically 20,000–30,000 operating hours or per ABB’s preventive maintenance schedule) is a documented strategy for eliminating unplanned downtime caused by conductor fatigue failure — a failure mode that is not detectable by standard IRC5 diagnostics until the fault becomes intermittent.
• Multi-Platform Inventory Efficiency: For facilities operating both IRB4601 and IRB1600 robots, maintaining stock of the correct harness assemblies for each platform reduces mean time to repair across the entire robot fleet, supporting OEE targets in high-utilization manufacturing environments.
