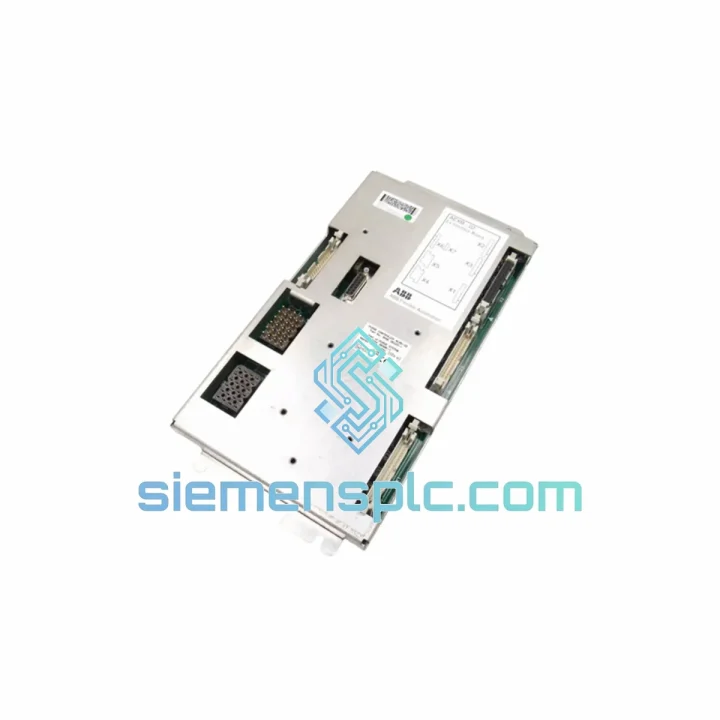

ABB AEXB-02 3HNE06225-1 EX Interface Board

ABB AEXB-02 3HNE06225-1 — Stop the Clock on Your IRC5 Downtime

Every hour an IRC5 robot controller sits offline costs real money. On a typical automotive body-in-white line, unplanned downtime runs $5,000–$22,000 per hour depending on line configuration and shift structure. The ABB AEXB-02 (3HNE06225-1) is the expansion interface board that sits between the IRC5 main computer unit and its downstream drive and safety modules. When it fails, the entire robot axis group goes dark. We stock this board in Xiamen and ship the same business day on confirmed orders — DHL Express puts it on your floor in 24–72 hours to most global destinations.

This is not a generic listing. The AEXB-02 is an OEM ABB Robotics board, sourced through verified industrial channels, inspected before dispatch, and backed by a 12-month warranty from siemensplc.com. If your IRC5 or S4C+ controller is throwing axis errors, communication faults, or a blank teach pendant after a board-level failure, this is the part you need.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The AEXB-02 fails in predictable patterns. Here is what field experience shows, and what to check before and after swapping the board:

Common Fault Signatures Pointing to AEXB-02 Failure:

• Error 20223 / 20224 (Internal Bus Communication Error): The IRC5 MCU loses handshake with the expansion board. If cycling power does not clear it and the DSQC boards upstream are confirmed healthy, the AEXB-02 is the next suspect.
• Error 50056 (Drive Module Communication Lost): The AEXB-02 routes signals between the MCU and drive units. A failed board breaks this path and the controller cannot confirm drive status.
• Teach Pendant Blank / Frozen at Boot: If the FlexPendant initializes but freezes before the axis configuration loads, the MCU may be failing to enumerate the expansion board during POST.
• Intermittent Axis Faults Under Load: Thermal cycling causes solder joint fatigue on the backplane connector. Faults that appear only after the cabinet reaches operating temperature and clear after a cold restart are a strong indicator of connector-level failure on the AEXB-02.

Replacement Procedure — Key Steps:

1. Backup First: Use RobotStudio to create a full system backup (File → Backup → Backup Current System). This captures calibration data, module configurations, and RAPID programs. Do not skip this step even if the controller appears partially functional.
2. Power Down Sequence: Set the main switch to OFF, then wait a minimum of 5 minutes for the DC bus capacitors in the drive modules to discharge before opening the cabinet. Verify with a multimeter at the drive module DC bus terminals before touching any boards.
3. ESD Protocol: The AEXB-02 is sensitive to electrostatic discharge. Use a grounded wrist strap connected to the cabinet chassis ground rail. Do not handle the board by its edge connectors.
4. Slot Location: In the IRC5 standard cabinet, the AEXB-02 occupies the designated expansion slot on the computer unit assembly. Refer to ABB Product Manual 3HAC021313-001, Section 5 (Computer Unit) for the exact slot diagram. In S4C+ cabinets, consult the S4C+ Service Manual for the equivalent slot assignment.
5. No Jumper or DIP Switch Configuration Required: The AEXB-02 does not carry user-configurable DIP switches. The board is auto-enumerated by the IRC5 MCU during boot. However, if the replacement board carries a different firmware revision than the original, a system software update via RobotStudio may be required to ensure compatibility.
6. Firmware Matching: Check the RobotWare version running on the controller (FlexPendant → ABB Menu → System Info). Cross-reference with ABB’s compatibility matrix for the AEXB-02 hardware revision. Mismatched firmware versions can cause Error 20001 (System Failure) on first boot after replacement.
7. Post-Installation Verification: Power up, observe the boot sequence on the FlexPendant. The system should enumerate all modules without error. Run a manual jog on each axis at low speed before returning to automatic mode. Check the Event Log for any residual communication warnings.

Reliability in Harsh Conditions

The AEXB-02 is designed to operate inside IRC5 controller cabinets that are routinely installed in foundry floors, automotive paint shops, and food processing environments — none of which are gentle on electronics.

• Vibration Resistance: The board’s PCB layout and component selection account for the continuous low-frequency vibration present in press-shop and stamping-line environments. Conformal coating on production variants provides additional mechanical protection to solder joints under cyclic stress.
• Thermal Stability: Rated for continuous operation at cabinet ambient temperatures up to 55 °C. The board’s power regulation circuitry maintains stable logic supply voltage across the full thermal range, preventing the voltage droop that causes intermittent communication errors in high-temperature installations.
• Humidity and Condensation: The conformal coating applied to the board surface provides protection against humidity ingress consistent with IEC 60068-2-78 (damp heat) test conditions. This is particularly relevant for installations in coastal or high-humidity industrial zones.
• EMC Shielding: The board operates within the shielded enclosure of the IRC5 cabinet, which provides primary EMC protection. The AEXB-02’s signal routing design minimizes crosstalk between high-speed digital lines and analog I/O paths, maintaining signal integrity in electrically noisy environments such as resistance welding cells.
• Long-Term Component Stability: ABB selects industrial-grade components rated for extended service life. Electrolytic capacitors on the board are specified for 10,000+ hours at rated temperature, reducing the probability of capacitor-related failures in long-running installations.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province, China — one of the country’s primary export hubs with direct access to international freight lanes via Xiamen Gaoqi International Airport and Xiamen Port.

• Same-Day Dispatch: Orders confirmed and paid before 15:00 CST ship the same business day. Orders received after cutoff ship the following morning.
• Carrier Options: DHL Express, FedEx International Priority, and UPS Express. Carrier selection is based on destination and urgency — we will recommend the fastest available option for your location at time of order.
• Transit Times (Typical): Southeast Asia 1–2 days | Europe 2–3 days | North America 2–4 days | Middle East 2–3 days | South America 3–5 days. Times are door-to-door from Xiamen.
• Export Documentation: Commercial invoice, packing list, and certificate of origin are prepared for every shipment. HS Code 8537.10 is applied for customs classification. We can provide a pro-forma invoice for advance customs clearance if required.
• Tracking: Full carrier tracking number provided within 2 hours of dispatch. We monitor shipments and proactively notify customers of any customs holds or delays.
• Packaging: ESD-safe anti-static bag, foam-lined rigid carton, moisture barrier desiccant pack, and fragile handling labels. The board arrives in the same condition it left our warehouse.
• Emergency Freight: For critical production-down situations, contact us directly via WhatsApp for charter freight or hand-carry courier options to destinations not served by standard express networks.
