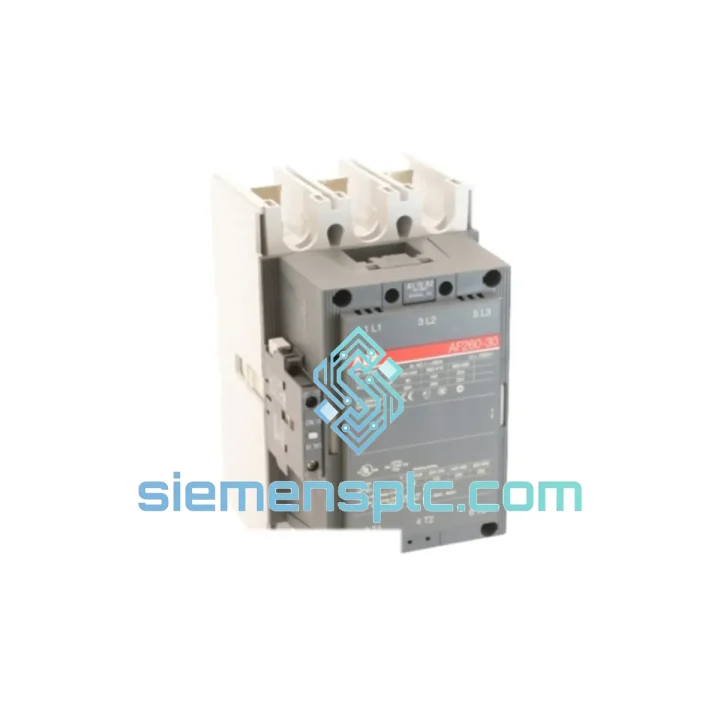

ABB AF260-30-11 1SFL537001R7011 DC Contactor

ABB AF260-30-11 (1SFL537001R7011) — Stop the Clock on Your Downtime

Every minute your line sits idle costs real money. A failed contactor in a 260 A motor circuit doesn’t wait for procurement cycles — and neither do we. The ABB AF260-30-11 (part number 1SFL537001R7011) is stocked, inspected, and ready to leave our Xiamen warehouse today. Whether you’re running a crane bridge, a compressor station, or a high-current motor control centre, this is the exact unit you need — not a substitute, not a remanufactured shell.

We’ve handled enough emergency callouts to know that the wrong part or a two-week lead time is not an option. That’s why siemensplc.com maintains physical stock of high-demand AF Series contactors and ships globally via DHL and FedEx express lanes. You call it in, we get it moving.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Ten years of field work teaches you that most AF260-30-11 failures fall into three categories. Here’s what to check before you even open the panel door — and what to watch when you’re swapping the unit.

Fault 1 — Coil Not Pulling In (No Audible Click)
First suspect: control voltage out of range. The AF260’s wide-range coil accepts 100–250 V DC/AC, but a sagging DC bus below 85 V will cause intermittent or failed pull-in. Measure coil terminal voltage under load, not at the source. If voltage is good, check the coil resistance — an open coil reads infinite ohms. A shorted coil will trip the control fuse repeatedly. Replace the contactor; the coil is not field-serviceable on this frame size.

Fault 2 — Contactor Chatters or Drops Out Under Load
Chatter on a DC coil contactor is almost always a control power quality issue — ripple voltage exceeding 10% on a rectified DC supply will cause the holding circuit to oscillate. Scope the coil supply before condemning the unit. If the supply is clean and chatter persists, the main contact springs are fatigued — common after 500,000+ operations in high-cycle applications. Check the mechanical wear indicator if present.

Fault 3 — Main Contacts Welded / Won’t Open
Welded contacts on a 260 A contactor typically follow a fault current event — a downstream short that exceeded the contactor’s breaking capacity. Do not attempt to manually separate welded contacts. Replace the unit and investigate the fault current source. Also verify that the upstream fuse or MCCB coordination is correct for the AF260 frame.

Replacement Checklist (Field Procedure)

• Isolate and lock out / tag out the motor circuit — verify zero voltage on all three phases before touching terminals.
• Photograph the existing wiring layout, especially auxiliary contact wiring (A1/A2 coil, 13/14 NO, 21/22 NC).
• Note the coil voltage stamped on the old unit — confirm the replacement matches. The AF260-30-11 uses a universal coil; verify your control supply is within the 100–250 V range.
• Torque main terminals to ABB specification: 20–25 N·m for the 260 A frame. Under-torqued connections are the #1 cause of premature contact failure after replacement.
• Reconnect auxiliary contacts in the same configuration. The 30-11 suffix means 3 main poles + 1 NO auxiliary + 1 NC auxiliary — do not swap NO/NC wiring.
• Before energising, manually depress the contactor armature to verify free mechanical movement and confirm no foreign debris in the contact chamber.
• Apply control voltage and verify pull-in voltage at the coil terminals. Log the measured value for the maintenance record.

Compatible Accessories (ABB AF Series)
Auxiliary contact blocks CA5-10 / CA5-01 / CA5-22 mount directly to the AF260 frame. Electronic overload relay EF370 is the coordinated overload for this contactor. RC snubber modules are available for DC bus applications where arc suppression is critical.

Reliability in Harsh Conditions

The AF260-30-11 is not a panel room component — it’s built for the floor. ABB designed the AF Series to operate continuously in environments that would degrade lesser contactors within months.

Vibration & Shock: The AF260 meets IEC 60068-2-6 vibration testing (10–150 Hz, 2 g) and IEC 60068-2-27 shock testing (15 g, 11 ms half-sine). In crane and hoist applications where mechanical shock is constant, the AF Series’ reinforced armature assembly maintains contact pressure without nuisance tripping — a failure mode common in older contactor designs.

Thermal Performance: Rated for continuous operation at ambient temperatures up to 60°C (derated above 40°C per IEC curve). The low-power consumption coil — typically under 5 W holding power — reduces panel heat load significantly compared to conventional AC coil designs. In enclosed MCC cubicles where thermal management is critical, this matters.

Humidity & Contamination: The AF260 housing is rated IP20 as standard, with the contact chamber sealed against dust ingress during normal operation. For coastal, chemical, or high-humidity environments, ABB recommends pairing with an IP54-rated enclosure. The silver-alloy contact material resists oxidation better than standard copper contacts, maintaining low contact resistance over the rated mechanical life of 10 million operations.

Electrical Endurance: At AC-3 duty (motor starting), the AF260-30-11 is rated for 1.5 million operations at full Ie. In applications with lower switching frequency — such as compressor or pump duty — service life extends proportionally. This is a unit designed to outlast the machinery it controls.

Global Express Logistics

Our Xiamen warehouse is positioned specifically for fast international dispatch. Xiamen Gaoqi International Airport handles direct cargo flights to major hubs in Europe, Southeast Asia, the Middle East, and the Americas — cutting transit times compared to inland Chinese warehouses that require additional trucking to port.

Standard Express Process:

• Order confirmed & payment cleared: Unit pulled from stock, inspected, and packed within 2 hours during business hours.
• Same-day dispatch: Orders confirmed before 14:00 CST ship the same business day via DHL Express or FedEx International Priority.
• Transit times: Europe 3–5 business days | Southeast Asia 2–3 business days | Middle East 4–6 business days | North America 5–7 business days.
• Tracking: AWB number provided within 4 hours of dispatch. Real-time tracking link sent to your registered email.
• Export documentation: Commercial invoice, packing list, and certificate of origin prepared as standard. MSDS and additional customs documents available on request.
• Customs clearance support: We declare accurate HS codes and provide all documentation required for smooth customs clearance. For time-critical shipments, we can coordinate with your local customs broker directly.

For plant shutdowns or production emergencies where standard express is not fast enough, contact us directly on WhatsApp for charter freight options and priority handling.
