ABB AGDR-81C FS450R17KE3 IGBT Module

ABB AGDR-81C + FS450R17KE3 SP Kit: Stop the Clock on Your ACS800 Downtime

Every minute your ACS800 drive sits dead, the production line bleeds money. A failed inverter bridge — whether it’s a blown FS450R17KE3 IGBT module, a damaged AGDR-81C gate driver, or both — is one of the most common catastrophic failures in medium-voltage ABB drives. We stock this SP Kit in Xiamen, China, and we ship it the same day you call. No waiting on factory lead times. No distributor runaround. Just the part, on your bench, fast.

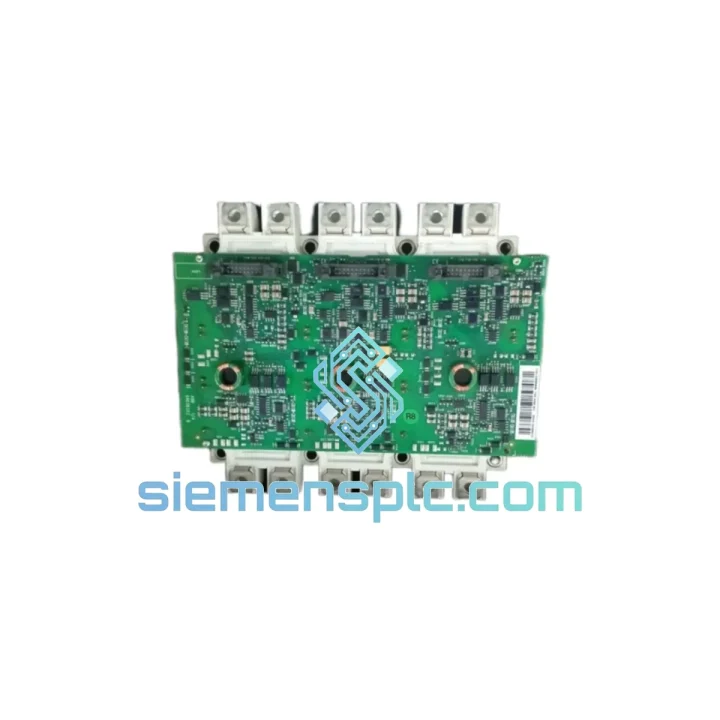

This listing covers the complete matched SP Kit: the ABB AGDR-81C gate driver board paired with the Infineon FS450R17KE3 1700 V / 450 A IGBT power module. This is the factory-designated replacement combination for the ACS800 inverter bridge phase leg. Ordering them separately and hoping they match is a risk you don’t need to take during an emergency shutdown.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Before you pull the module, confirm the failure mode. The AGDR-81C will latch a fault and hold the drive in a safe state — but the fault code tells you whether you’re dealing with a driver fault or a power module failure.

Common fault codes pointing to this SP Kit:

• FF (Fast Fault) on AGDR-81C LED: Desaturation detected — the IGBT failed to turn off cleanly. Classic sign of a shorted FS450R17KE3 collector-emitter junction. Measure CE resistance with a DMM before condemning the driver board.
• ACS800 Fault 0022 (Short Circuit): Inverter bridge phase-to-phase short. Pull the IGBT module and check all six junctions. If one leg is shorted, replace the full SP Kit — do not mix old and new modules in the same bridge.
• ACS800 Fault 0009 (Undervoltage): Can be caused by AGDR-81C losing its ±15 V supply. Check the auxiliary power board before condemning the gate driver.
• Intermittent drive trips at high load: Thermal fatigue on the IGBT bond wires. Check for elevated junction temperature readings and inspect the module baseplate for solder delamination.

Replacement procedure — field checklist:

• De-energize the drive and verify DC bus voltage is below 50 V before opening the inverter cabinet. Use a calibrated DMM — do not trust the panel indicator alone.
• Discharge the DC bus capacitors fully. ACS800 units can hold lethal charge for several minutes after power-off.
• Label and photograph all gate driver wiring before disconnection. The AGDR-81C has six gate/emitter pairs — incorrect reconnection will destroy the new module on first power-up.
• Clean the IGBT module mounting surface and apply fresh thermal compound (recommended: Shin-Etsu X-23 or equivalent, 0.1–0.15 mm bond line). Torque the module mounting screws to the specified value (typically 3–4 Nm for M5 screws) — uneven clamping causes hot spots.
• After installation, perform a gate driver self-test before enabling the drive. The AGDR-81C has a built-in test mode — consult ABB Technical Guide TG-ACS800-IGBT for the procedure.
• Power up with the motor disconnected for the first run. Monitor DC bus voltage and check for any immediate fault codes before connecting the load.
• No DIP switch or address configuration is required for the AGDR-81C in standard ACS800 applications. If your drive uses a multi-drive configuration (ACS800-104 or similar), verify the phase assignment jumpers on the driver board match the original.

Reliability in Harsh Conditions

The FS450R17KE3 is built on Infineon’s 4th-generation IGBT chip technology, designed specifically for industrial drive applications where thermal cycling, vibration, and humidity are daily realities — not edge cases.

The module’s copper baseplate and AlSiC substrate provide a coefficient of thermal expansion closely matched to the silicon die, dramatically reducing bond wire fatigue under repeated thermal cycling. In steel mill and mining applications where drives cycle on and off dozens of times per shift, this matters. Modules with mismatched CTE fail within months; the FS450R17KE3 is rated for 100,000+ power cycles at ΔTj = 60 K.

Vibration resistance is addressed through the module’s press-fit terminal design and the AGDR-81C’s conformal-coated PCB. In applications with significant mechanical vibration — compressors, crushers, large pump stations — the conformal coating prevents condensation-induced creepage and protects against particulate contamination. Operating humidity range is 5–95% RH non-condensing, and the module is rated for ambient temperatures from -40°C to +125°C junction temperature.

All units in our inventory are stored in a climate-controlled warehouse with ESD-controlled handling throughout. We do not store IGBT modules in uncontrolled environments — humidity and electrostatic discharge are the two fastest ways to degrade a module before it ever sees a drive cabinet.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to DHL, FedEx, and UPS international gateways. For urgent replacement orders, we operate a same-day dispatch process for orders confirmed before 15:00 CST.

Typical transit times from Xiamen:

• Southeast Asia (Singapore, Thailand, Malaysia): 2–3 business days via DHL Express
• Europe (Germany, UK, Netherlands, Poland): 3–5 business days via FedEx International Priority
• North America (USA, Canada): 3–4 business days via DHL Express Worldwide
• Middle East (UAE, Saudi Arabia, Qatar): 3–4 business days via FedEx
• Australia / New Zealand: 3–5 business days via DHL

All shipments include a commercial invoice, packing list, and country of origin documentation. ESD-safe anti-static packaging with foam insert is standard. For orders requiring customs pre-clearance documentation or specific HS code declarations, contact us before ordering and we will prepare the paperwork in advance to avoid customs delays.

For plant shutdowns where every hour counts, we can arrange DHL On-Demand Delivery with real-time tracking and delivery time windows. Contact us via WhatsApp for the fastest response on urgent logistics coordination.
