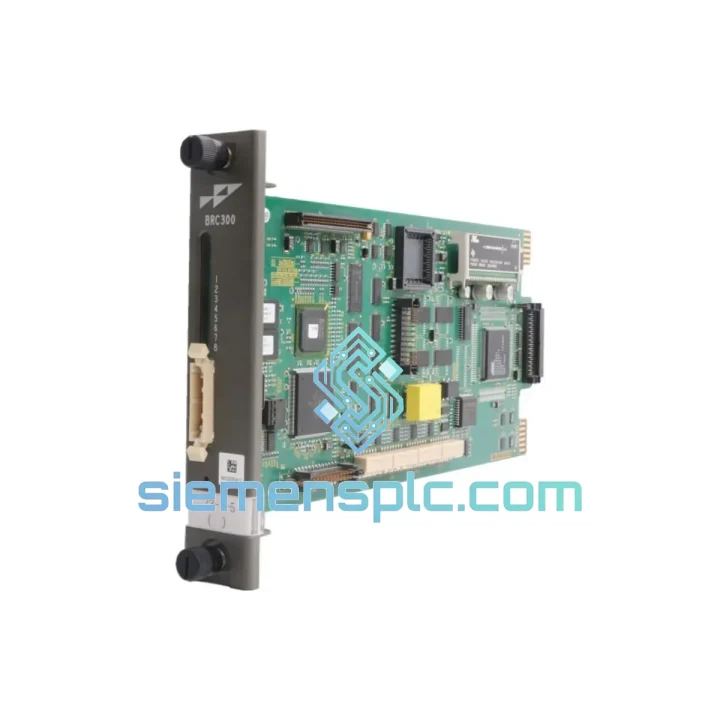

ABB BRC300 P-HC-BRC-30000000 DCS Bridge Controller – AC800M Series

ABB BRC300 P-HC-BRC-30000000 — Backplane Bridge Controller for AC800M Distributed Control Architecture

The ABB BRC300 (catalog reference P-HC-BRC-30000000) is the dedicated bridge controller module within ABB’s AC800M Distributed Control System platform. Its function is architecturally non-negotiable: it mediates all data traffic between the PM8xx-series CPU module and the S800 I/O subsystem via the ModuleBus optical fiber link, enforcing deterministic cycle synchronization across the entire control node. Without a correctly functioning BRC300, the controller loses its ability to address field I/O, rendering the entire control loop inoperative regardless of CPU health.

In process industries where continuous uptime is a contractual and safety obligation — LNG terminals, ethylene crackers, power generation turbine halls, and pharmaceutical batch reactors — the BRC300 is a tier-one spare component. Its role in the AC800M backplane hierarchy places it above standard I/O modules in criticality: a failed BRC300 does not degrade performance, it eliminates it. Procurement engineers and plant maintenance teams operating AC800M installations should maintain at least one verified spare BRC300 per controller cabinet.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The BRC300 implements a dual-layer arbitration architecture that separates backplane bus management from ModuleBus frame scheduling. On the backplane side, the module interfaces with the AC800M internal parallel bus through a dedicated FPGA-based bus arbiter. This arbiter handles slot addressing, interrupt routing, and watchdog supervision for the connected CPU module — functions that must complete within a fixed 1 ms window to maintain controller cycle integrity.

On the field side, the BRC300 drives the ModuleBus optical fiber link at a fixed baud rate, polling each S800 I/O station in a deterministic round-robin sequence. The optical medium eliminates galvanic coupling between the controller cabinet and field junction boxes, providing inherent isolation against ground loops and common-mode transients that are endemic in heavy industrial environments — particularly in facilities with large motor drives, arc furnaces, or high-voltage switchgear in proximity to control panels.

The module’s EMC design incorporates multi-layer PCB ground planes with localized decoupling capacitors at each IC power rail, suppressing conducted emissions below the EN 61000-6-4 Class A limit across the 150 kHz–30 MHz band. The optical fiber interface further eliminates the primary EMI ingress path that affects copper-based fieldbus alternatives such as Profibus DP or DeviceNet in high-noise environments.

Redundancy arbitration is handled at the system level: in dual-controller configurations, the BRC300 participates in the bumpless transfer protocol by maintaining a synchronized shadow register of the last valid I/O scan cycle. When the active controller initiates a switchover, the standby BRC300 can resume ModuleBus polling within one scan cycle, preventing I/O data gaps that would otherwise trigger process alarms or safety shutdowns.

The module’s onboard diagnostic logic continuously monitors ModuleBus frame error rates, optical signal strength (via internal photodetector feedback), and backplane bus arbitration timeouts. Any parameter exceeding threshold generates a hardware fault flag readable via the AC800M system diagnostic bus, enabling the CPU to log a timestamped fault record without operator intervention.

System Integration Benefits

• Deterministic I/O Scan Cycle: The BRC300 enforces a fixed ModuleBus polling interval, ensuring that all S800 I/O data is refreshed within a guaranteed time window — a prerequisite for closed-loop PID control and safety interlock logic that depends on bounded input latency.
• Optical Isolation from Field Wiring: The fiber-optic ModuleBus link provides >2 kV galvanic isolation between the controller backplane and field I/O stations, eliminating ground-loop-induced measurement errors on analog input channels and protecting CPU logic from field-side transients.
• Hot-Standby Redundancy Support: In redundant AC800M configurations, the BRC300 synchronizes shadow I/O data with the standby controller, enabling bumpless switchover with zero scan-cycle data loss — critical for continuous process applications where a single missed I/O update can trigger a spurious shutdown.
• Transparent Fault Diagnostics: Onboard error counters for ModuleBus frame CRC failures, optical link degradation, and backplane timeout events are exposed to the AC800M diagnostic bus, allowing Control Builder M to generate structured alarm records with fault code, timestamp, and module address — reducing mean time to diagnose (MTTD) during fault investigation.
• Plug-Compatible Replacement: The BRC300 requires no firmware flashing or parameter configuration on installation — the AC800M CPU auto-detects the module type via backplane enumeration and restores the I/O map from its configuration database, reducing planned maintenance window duration.
• Extended Temperature Operation: Rated to +55 °C continuous ambient, the BRC300 operates within the thermal envelope of sealed industrial enclosures without forced cooling, reducing HVAC infrastructure requirements in remote or offshore installations.
• Multi-Node I/O Expansion: A single BRC300 can address up to 12 S800 I/O stations per ModuleBus segment, supporting up to 128 analog or 256 digital I/O points per bridge — sufficient for mid-scale process units without requiring additional communication hardware.
• Long-Lifecycle Platform Alignment: ABB’s AC800M platform carries a published lifecycle commitment extending beyond 2030. The BRC300 is a current-production component with active ABB spare parts support, ensuring availability for greenfield projects and long-term plant asset management programs.
• Reduced Wiring Infrastructure: The optical fiber ModuleBus replaces multi-core copper I/O cables between controller and field junction boxes, reducing installation material cost and eliminating the need for cable shielding in high-EMI zones.
• Compatibility with Safety Systems: The BRC300 is compatible with AC800M configurations integrated with ABB’s Safety Manager (SM) for SIL 2/3 applications, where the bridge controller’s deterministic scan cycle is a prerequisite for safety function response time calculations.

Quality Assurance & Global Logistics

Every ABB BRC300 P-HC-BRC-30000000 unit supplied by siemensplc.com is sourced from verified channels — authorized ABB distributors, decommissioned plant assets with documented service history, or certified surplus inventory. Each module undergoes a structured pre-shipment inspection protocol:

• Visual & Mechanical Inspection: PCB surface examination for corrosion, solder joint integrity, connector pin condition, and housing dimensional conformance to ABB OEM specifications.
• Authenticity Verification: Part number markings, date codes, and ABB holographic labels cross-referenced against OEM documentation to exclude counterfeit or remarked components.
• Power-On Functional Test: Module energized on a compatible AC800M test backplane; backplane enumeration, ModuleBus link establishment, and diagnostic register readback verified against expected values.
• ESD-Safe Packaging: Modules shipped in anti-static shielding bags within foam-lined cartons, rated for international air freight handling per ISTA 2A transit testing standards.
• Documentation Package: Certificate of conformance, inspection report, and — where available — original ABB packaging and traceability records supplied with each unit.

Logistics operations are managed from Xiamen, China, with established carrier partnerships covering DHL Express, FedEx International Priority, and UPS Worldwide Expedited. Standard international transit times: 3–5 business days to Europe and North America, 2–4 business days to Southeast Asia and the Middle East. Export documentation — commercial invoice, packing list, HS code declaration (8537.10) — is prepared in compliance with destination country import requirements. Emergency same-day dispatch is available for in-stock units upon order confirmation before 14:00 CST.
