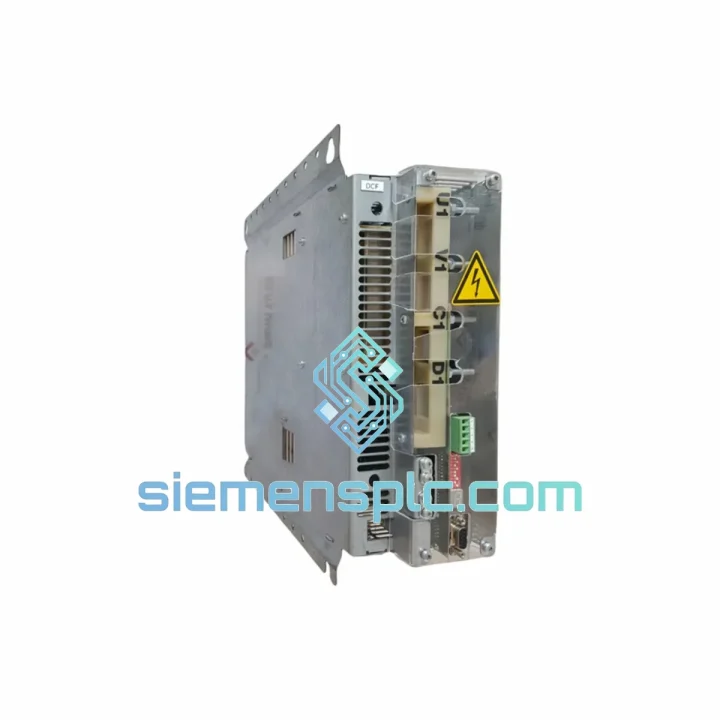

ABB DCF503B0050-000000X Field Excitation Module

DCF503B0050-000000X Down? Every Minute of Downtime Costs You Money — We Ship Same Day

A failed field excitation module doesn’t just stop a motor — it halts an entire production line. Rolling mills, paper machines, mining hoists: when the DCS800’s field supply drops out, armature current becomes uncontrollable and the drive trips on field loss fault. We stock the ABB DCF503B0050-000000X in Xiamen and dispatch within hours of order confirmation. No lead-time negotiation. No factory backorder. Your line back up — that’s the only metric that matters.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of emergency callouts on DCS800 installations, these are the failure patterns that actually show up on site — and what to check before you condemn the DCF503 module outright.

Fault F507 / F508 — Field Current Loss or Field Overcurrent
These are the two most common faults pointing directly at the excitation module. F507 (field current below minimum threshold) usually means the thyristor bridge has lost a firing pulse — check the gate drive signals on the SDCS-PIN-F board first. If gate pulses are present but field current is zero, the SCR itself has failed open. F508 (field overcurrent) can indicate a shorted SCR conducting continuously; measure field winding resistance before replacing the module to rule out a motor fault.

Replacement Procedure — Step by Step

• Isolate and lock out the main AC supply. Verify DC bus voltage has discharged below 50 V before opening the cabinet.
• Photograph the existing wiring and ribbon connector orientation before disconnecting anything. The DCF503 ribbon connector is keyed but the field output terminals (F+ / F−) are not — polarity reversal will demagnetize the motor field.
• Remove the four M5 mounting screws securing the module to the drive chassis. The module slides forward on guide rails — do not force it.
• Transfer the field output cable lugs to the new module. Torque to 4 N·m. Reconnect the ribbon connector — confirm it seats fully; a half-seated connector causes intermittent F507 faults that are extremely difficult to diagnose under load.
• Before powering up, set parameter 99.02 (Motor Nominal Field Current) in the DCS800 to match the motor nameplate value. The DCF503 does not carry any drive parameters — they reside on the SDCS-CON-F board and survive module replacement.
• Perform a field autotune (parameter 99.10 = FIELD TUNE) after replacement. This recalibrates the field current controller to the actual motor field winding resistance and inductance. Skipping this step causes sluggish field response and potential F508 trips at high speed.
• Verify field current feedback on parameter 1.08 (Field Current) matches the commanded value within 2% at steady state. If deviation exceeds 5%, suspect a feedback resistor fault on the SDCS-PIN-F board rather than the DCF503 itself.

Dip Switch / Jumper Settings
The DCF503B0050-000000X has no user-configurable dip switches. All field current limits and control parameters are set via the DCS800 software (DriveWindow or the keypad). Confirm firmware version on the SDCS-CON-F board is ≥ AM8L before installation — earlier firmware versions have a known field current scaling bug that causes F507 nuisance trips with the 50 A module variant.

Firmware Compatibility
DCF503 hardware revision C and later (identifiable by the ‘C’ suffix on the module label) requires SDCS-CON-F firmware AM7L or higher. Mixing a revision C module with firmware below AM7L results in incorrect field current scaling — the drive will report 60–70% of actual field current, causing unnecessary field-weakening at base speed.

Reliability in Harsh Conditions

The DCF503B0050-000000X is not a light-duty component. ABB engineered it for the environments where DC drives actually operate — not climate-controlled server rooms.

The thyristor bridge assembly is mounted on a dedicated aluminum heatsink with forced-air cooling derived from the main drive fan. Thermal cycling tests per IEC 60068-2-14 validate operation across 10,000 power-on/power-off cycles without solder joint fatigue. In steel mill installations where ambient temperatures routinely reach 45 °C, the module operates within its derating curve with no reduction in field current accuracy.

Vibration resistance is validated to IEC 60068-2-6: 1 g sinusoidal, 10–150 Hz sweep. This covers the resonance frequencies typical of motor-driven machinery foundations. The ribbon connector uses a ZIF (zero insertion force) locking mechanism that maintains contact integrity under continuous vibration — a known weak point on competing excitation modules that use friction-fit connectors.

Humidity performance is rated to 95% RH non-condensing per IEC 60068-2-78. The PCB conformal coating on the gate drive circuit provides additional protection against condensation during cold-start conditions in unheated plant buildings. In coastal or high-humidity environments, this coating is the difference between a module that lasts eight years and one that fails in eighteen months due to dendritic growth on the gate resistor network.

All components are RoHS compliant and manufactured under ABB’s ISO 9001 quality management system at their Lampertheim, Germany facility. Each module carries a unique serial number traceable to production batch records — critical for warranty claims and counterfeit verification.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian — one of China’s primary export hubs with direct access to DHL Express, FedEx International Priority, and UPS Worldwide Express gateways. This is not a drop-ship arrangement. Stock is physically on our shelves, inspected, and ready to pack.

Standard dispatch timeline: Orders confirmed before 15:00 CST ship same business day. Orders confirmed after 15:00 CST ship the following morning. You receive a tracking number within 2 hours of dispatch.

Transit times (door-to-door, business days):

• Southeast Asia (Singapore, Thailand, Malaysia, Vietnam): 2–3 days via DHL Express
• Middle East (UAE, Saudi Arabia, Qatar): 3–4 days via FedEx International Priority
• Europe (Germany, UK, Netherlands, Poland): 3–5 days via DHL Express
• North America (USA, Canada, Mexico): 4–5 days via FedEx International Priority
• South America (Brazil, Chile, Argentina): 5–7 days via DHL Express
• Africa (South Africa, Nigeria, Egypt): 5–7 days via DHL Express

All shipments include commercial invoice, packing list, and certificate of origin. For customers requiring DDP (Delivered Duty Paid) terms, we handle customs clearance and import duties on your behalf — no surprise charges at the border. Export classification: HS Code 8537.10 (boards, panels, consoles for electric control). No export license required for standard destinations.

Emergency freight options (next-flight-out, charter consolidation) are available for critical shutdowns. Contact us directly on WhatsApp for same-day freight coordination.
