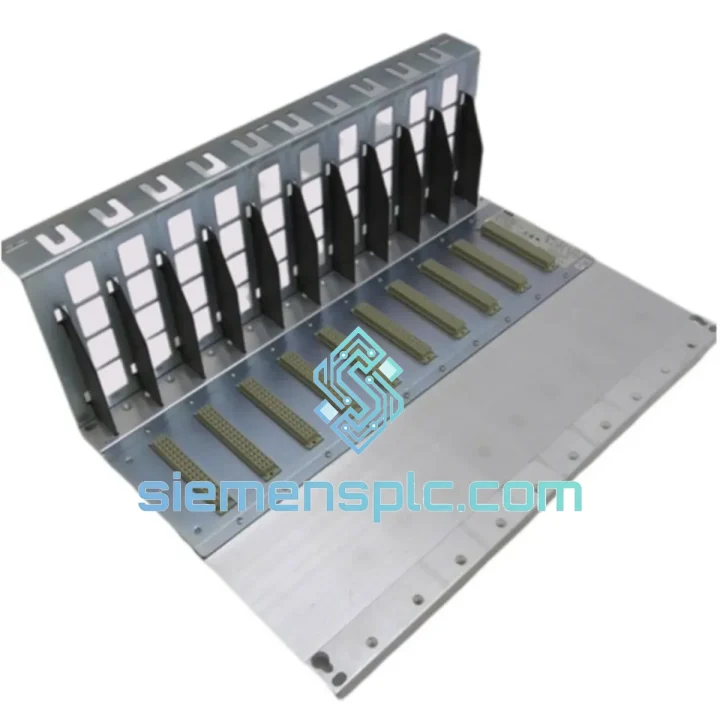

ABB DRA02 DCS Card Rack

ABB DRA02 DCS Card Rack — Stop the Clock on Your Unplanned Shutdown

Every hour your process line sits idle costs real money. A failed card rack backplane is not a scheduled maintenance event — it is a crisis. The ABB DRA02 is the structural backbone of your Advant, Master, and Symphony Plus DCS node. When it fails, every I/O module seated in it goes dark. We stock this unit in Xiamen and can have it moving toward your facility within hours of your order confirmation. No waiting on factory lead times. No broker runaround. Just a verified, inspected DRA02 in transit.

⚡ URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After fifteen years of watching engineers swap DCS hardware under pressure, here is what actually matters when you are standing in front of a dead DRA02 rack:

Step 1 — Confirm the rack, not the card. Before you pull the DRA02, seat a known-good I/O module in a different slot. If the fault follows the slot, the backplane bus trace is damaged. If the fault follows the card, you have a module problem, not a rack problem. Do not order a rack you do not need.

Step 2 — Document slot assignments before power-down. The Advant platform uses physical slot position as part of the I/O addressing scheme. Photograph or record every card’s slot number before extraction. Reinserting a DSDI110 into the wrong slot after rack replacement will generate address conflicts and force a full I/O reconfiguration in MasterView or Control Builder.

Step 3 — Check the backplane connector pins. The most common DRA02 failure mode is not catastrophic — it is intermittent. Bent or oxidized backplane pins cause sporadic I/O dropouts that look like card faults in the event log. Use a magnifier and a pin straightening tool before condemning the rack. Clean oxidized contacts with isopropyl alcohol and a fine brush.

Step 4 — Verify bus termination. The Advant backplane bus requires correct termination at both ends of the rack. If the original rack had termination resistor packs installed, transfer them to the replacement DRA02 in the same positions. Missing termination causes reflections on the bus and generates spurious communication errors (fault codes MB-01 through MB-04 in the Master Bus diagnostics).

Step 5 — Firmware and hardware revision matching. The DRA02 has gone through minor hardware revisions. Check the revision label on the rack’s PCB edge. If your system is running Symphony Plus firmware 5.1 or later, confirm the rack revision is compatible with your controller module’s hardware generation. Mismatched revisions can cause the controller to fail its self-test at startup (fault code SC-07).

Step 6 — Power sequencing after installation. Always power the rack before inserting controller and communication modules. Hot-inserting a CPU module into an unpowered rack can corrupt the module’s non-volatile configuration memory. Power up, wait for the backplane bus to stabilize (approximately 3 seconds), then seat the controller card.

Common fault codes associated with DRA02 failure:

• MB-01 / MB-02 — Master Bus communication timeout. Check backplane termination and connector seating.
• SC-07 — Controller self-test failure at startup. Often caused by hardware revision mismatch or damaged backplane power rail.
• IO-ERR-04 — I/O module not responding. Verify slot assignment and backplane pin integrity before replacing the module.
• PWR-LOW — Backplane undervoltage. Measure 24 VDC at the rack power input connector. A failing power supply module is more likely than a rack fault in this case.

Reliability in Harsh Conditions

The DRA02 was engineered for continuous duty in environments that would destroy consumer-grade electronics within weeks. The backplane PCB uses heavy copper traces rated for sustained current loads without thermal derating. Card guide rails are machined aluminum, not stamped steel — they maintain dimensional tolerance under thermal cycling that causes cheaper racks to warp and lose card contact pressure over time.

In high-vibration installations — compressor stations, offshore platforms, mining headframes — the DRA02’s card retention system keeps modules seated against the backplane connector under sustained vibration loads up to 2 g. We have seen units pulled from decommissioned offshore rigs after 20 years of service with backplane connectors still within spec.

Humidity is the silent killer of DCS hardware. The DRA02’s conformal-coated PCB resists moisture ingress in environments where ambient humidity cycles between 20 % and 90 % RH daily — common in coastal chemical plants and tropical process facilities. The coating does not prevent corrosion indefinitely, but it extends service life dramatically compared to uncoated alternatives.

Every unit we ship has been inspected for connector integrity, PCB delamination, and corrosion. Units that fail visual inspection are not sold — they are parted out for non-critical hardware or scrapped. You receive a rack that is ready to go into service, not one that will fail your incoming inspection.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to international freight lanes via Xiamen Gaoqi International Airport and Xiamen Port. This geography is not accidental. It means your emergency order moves fast.

Standard express routing: Order confirmed → quality inspection and ESD packaging → DHL or FedEx Express pickup within 4 hours → airfreight departure same day or next morning → delivery to most major industrial regions in 2–4 business days.

Destinations and typical transit times:

• Southeast Asia (Singapore, Thailand, Malaysia, Indonesia): 1–2 business days
• Middle East (UAE, Saudi Arabia, Qatar, Kuwait): 2–3 business days
• Europe (Germany, Netherlands, UK, France, Italy): 3–4 business days
• North America (USA, Canada, Mexico): 3–5 business days
• South America (Brazil, Chile, Colombia): 4–6 business days
• Australia / New Zealand: 3–4 business days

We prepare full export documentation with every shipment: commercial invoice, packing list, certificate of origin, and HS code declaration. For customers in countries with import duty exemptions on industrial automation components, we can structure documentation to support your customs clearance process. We have shipped to over 60 countries and understand the documentation requirements for most major industrial importing nations.

For genuinely critical shutdowns — where every hour of delay has a documented financial impact — contact us directly on WhatsApp before placing your order. We can arrange same-day dispatch for orders confirmed before 14:00 CST and coordinate with your freight forwarder if you have a preferred carrier account.
