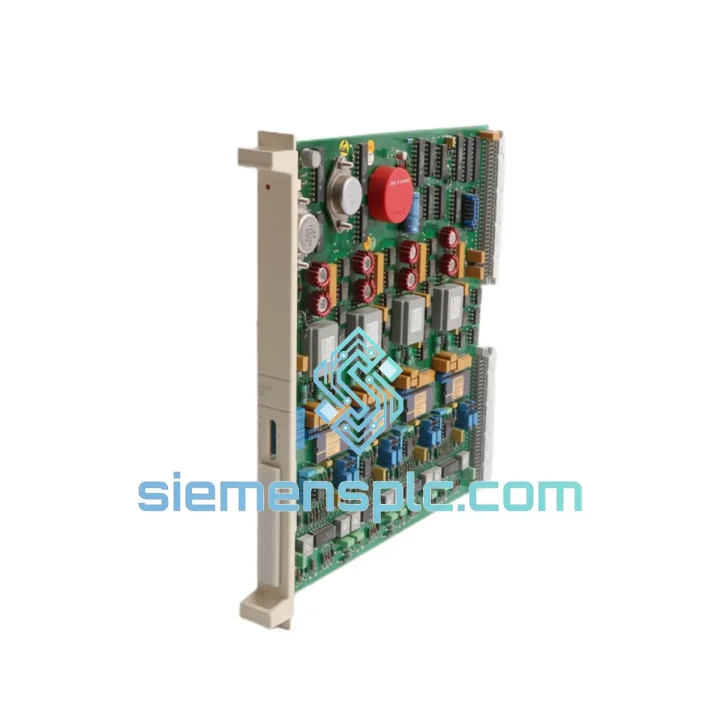

ABB DSAO110 57120001-AT Analog Output Module – ADVANT Master

ABB DSAO110 57120001-AT: 8-Channel Analog Output Module in ADVANT Master DCS Control Architecture

The ABB DSAO110 (part number 57120001-AT) is a dedicated analog output module engineered for deployment within ABB’s ADVANT Master distributed control system, operating on the S100 MODULEBUS backplane. Its primary function in the control loop is to receive 16-bit digital setpoint data from the AC 450 or AC 410 controller over the S100 bus, perform D/A conversion at 12-bit resolution, and drive field actuators — including control valve positioners, variable-speed drive reference inputs, and current-to-pneumatic transducers — with a calibrated 4–20 mA or 0–10 V analog signal. The module’s role is deterministic: it closes the output side of the process control loop with a fixed scan cycle synchronized to the controller’s task execution period, ensuring that actuator response latency remains bounded and predictable under all load conditions.

Each of the eight output channels operates independently, with individual D/A converters and output drivers. This architecture eliminates inter-channel crosstalk and allows simultaneous update of all channels within a single bus transaction. The module draws its operating power from the S100 subrack backplane at 24 VDC, with internal DC/DC conversion providing isolated supply rails for the analog output stage — a design choice that prevents ground loop currents from corrupting output accuracy.

📩 Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The DSAO110’s internal architecture is organized around a bus interface ASIC, a shared data latch array, and eight discrete output driver circuits. When the S100 MODULEBUS controller initiates a write cycle, the bus interface ASIC decodes the module address, latches the 16-bit data word into the corresponding channel register, and triggers the D/A conversion sequence. The 12-bit DAC operates on a successive-approximation architecture, completing conversion in under 10 µs per channel — fast enough to support controller scan rates of 100 ms or faster without introducing output lag.

EMC Design: The module’s PCB layout employs a split ground plane strategy: the digital ground (DGND) associated with the bus interface and DAC logic is physically separated from the analog ground (AGND) of the output driver stage, with a single-point star connection at the power entry. This topology suppresses high-frequency switching noise generated by the bus interface from coupling into the analog output rails. Additionally, the output lines are routed through common-mode chokes before reaching the terminal block, attenuating externally induced RF interference in the 150 kHz–30 MHz band — a critical requirement in environments with variable-frequency drives or high-power switching equipment operating nearby.

Galvanic Isolation Architecture: Each channel’s output driver is referenced to an isolated floating supply derived from an on-board DC/DC converter. The isolation barrier is implemented using optocoupler-based signal transfer between the DAC output and the isolated driver stage, with a rated isolation voltage of 500 V DC between channel commons and the backplane bus. This prevents ground potential differences between field devices — which can reach tens of volts in large plant installations — from creating measurement errors or damaging the module’s output stage.

Output Drive Capability: The current output stage is a precision voltage-controlled current source (VCCS) topology, capable of driving loads up to 600 Ω while maintaining output accuracy within ±0.1% of full scale. The driver includes short-circuit protection with automatic current limiting, preventing damage to the module if a field wiring fault creates a low-impedance path. Open-circuit detection is implemented in firmware: if the output current cannot reach the commanded value within a defined timeout, the module sets a channel fault flag readable by the controller for diagnostic purposes.

System Integration Benefits

• Deterministic output update timing: The DSAO110 updates all eight channels within a single MODULEBUS transaction, ensuring that multi-loop control strategies — such as cascade or ratio control — receive simultaneous setpoint updates without inter-channel skew that could destabilize tightly coupled loops.
• Transparent channel-level diagnostics: Each channel reports its operational status (normal, open-circuit, short-circuit, out-of-range) back to the AC 450 controller via the S100 bus status word, enabling the DCS operator station to display field-device fault conditions without requiring additional field instrumentation.
• Zero-configuration bus addressing: Module address is set via hardware DIP switches on the module front panel, eliminating the need for software-based address assignment and reducing commissioning time in multi-module rack configurations.
• Hot-swap compatible rack design: When installed in an S100 subrack with the appropriate bus termination, the DSAO110 can be removed and reinserted without powering down the rack, supporting maintenance operations in continuous-process environments where planned shutdowns are infrequent.
• Backward compatibility with legacy ADVANT controllers: The module’s S100 MODULEBUS protocol implementation is fully compatible with AC 160, AC 410, and AC 450 controllers, allowing it to serve as a direct replacement in systems spanning multiple generations of ABB DCS hardware without firmware modification.
• Reduced field wiring complexity: Eight independently isolated current outputs on a single module replace what would otherwise require eight separate single-channel transmitters or signal conditioners, reducing terminal block count, cable tray fill, and potential wiring error points.
• Calibration retention across power cycles: Factory calibration coefficients are stored in non-volatile memory on the module. Output accuracy is restored immediately upon power-up without requiring field recalibration, which is critical for processes where startup time directly affects production throughput.
• Compatibility with ABB engineering tools: The module is fully recognized by ABB Master Engineering Tool (MET) and Advant Builder, enabling graphical I/O configuration, channel assignment, and online diagnostics from the engineering workstation without custom driver development.

Quality Assurance & Global Logistics

Every DSAO110 57120001-AT unit dispatched from our Xiamen, China facility undergoes a structured pre-shipment inspection protocol. Physical inspection covers label authenticity, connector pin integrity, PCB surface condition, and front-panel indicator LED functionality. Functional verification confirms that the module powers up correctly and that bus communication is established when inserted into a test rack. Units exhibiting any anomaly in these checks are quarantined and not dispatched.

Packaging follows IEC 61340-5-1 ESD protection requirements: each module is placed in a conductive anti-static bag, cushioned with foam inserts rated for the module’s weight class, and boxed in double-wall corrugated cartons. For international shipments, cartons are further sealed with tamper-evident tape and labeled with handling instructions in English and the destination country’s language where applicable.

Logistics from Xiamen port to major industrial hubs in Europe, the Middle East, Southeast Asia, and the Americas typically complete within 3–7 business days via DHL Express or FedEx International Priority. For time-critical plant maintenance scenarios, same-day dispatch is available for orders confirmed before 14:00 CST. All shipments include a commercial invoice, packing list, and certificate of origin. Customs HS code documentation is provided to facilitate smooth clearance at destination ports.

A 12-month warranty covers all units against manufacturing defects and functional failure under normal operating conditions. Warranty claims are processed within 5 business days of receipt of the returned unit, with replacement dispatch or credit note issued accordingly.
