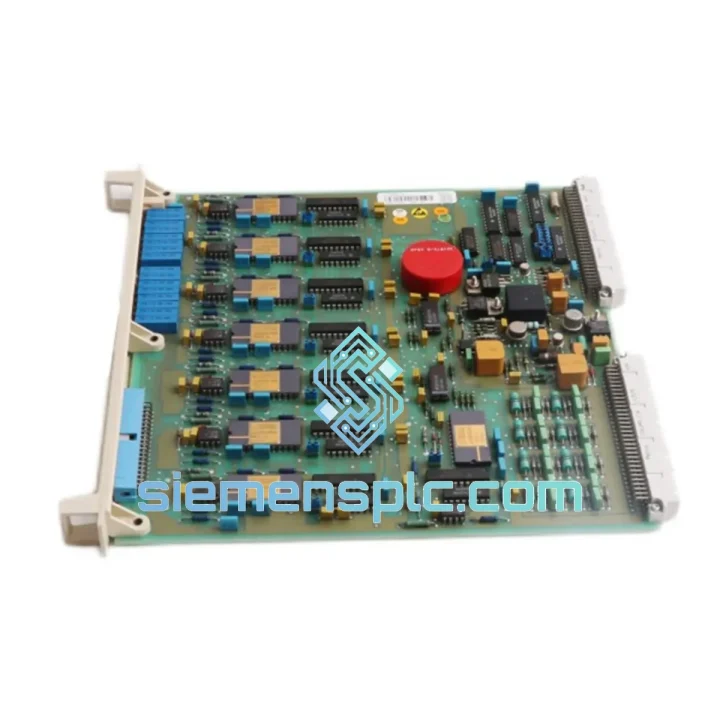

ABB DSAO120 57120001-EY Analog Output Module

ABB DSAO120 57120001-EY: Stop the Bleeding — Get Your Process Loop Back Online Now

A failed analog output card doesn’t just trip an alarm — it kills production. Every hour your DCS sits with a dead DSAO120, you’re watching yield, throughput, and margin evaporate. We stock the ABB DSAO120 (57120001-EY) in Xiamen and ship same-day via DHL/FedEx Express. No waiting on ABB’s lead times. No broker markups. Just the module, tested, packed, and moving toward your plant within hours of your order.

Whether you’re running an Advant Controller 400 series rack in a refinery, a power station, or a chemical reactor line, this is the exact card you need — original ABB, correct revision, ready to slot in.

⚡ URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Swapping a DSAO120 looks straightforward — pull the card, push the new one in. But if you skip these steps, you’ll be back on the phone with your process engineer at 2 AM wondering why channel 4 is still pegged at 20 mA.

Step 1 — Confirm the fault is the card, not the loop. Before pulling the module, check the DCS fault log for error codes. On Advant AC 400 systems, a persistent AO Channel Fault or Hardware Error diagnostic on the DSAO120 node almost always points to the card itself, not field wiring. Verify loop resistance is within spec (typically 0–600 Ω per channel) before condemning the module.

Step 2 — Power down the subrack correctly. The DSAO120 is not hot-swappable in most AC 400 configurations. Shut down the affected controller node via the engineering workstation before extraction. Forcing a live pull risks corrupting the backplane bus and taking adjacent I/O cards offline — turning a single-card fault into a multi-card outage.

Step 3 — Check the DIP switch configuration. The DSAO120 carries address DIP switches on the PCB edge. Before inserting the replacement, photograph the switch positions on the failed card and replicate them exactly on the new module. Incorrect addressing causes the controller to fail to recognize the card on restart, generating a Module Not Found alarm.

Step 4 — Verify firmware revision compatibility. Cross-check the firmware label on the replacement card against your system’s hardware compatibility matrix (ABB document 3BSE000435). Mismatched firmware between the DSAO120 and the AC 400 processor can cause intermittent output errors that are extremely difficult to diagnose in the field.

Step 5 — Perform a channel-by-channel loop check after restart. Force each of the 8 channels to 4 mA and 20 mA from the engineering workstation and confirm the field instrument responds correctly. Document the results. This takes 20 minutes and saves hours of troubleshooting if a field device was damaged during the original fault event.

Common fault codes on Advant systems pointing to DSAO120 failure:

• AO HW Fault — Internal D/A converter failure; card must be replaced.
• AO Loop Break — Can be card or field wiring; isolate by disconnecting field terminals and measuring card output directly.
• Bus Communication Error (node-specific) — Often caused by a failing card pulling down the backplane; swap card first before investigating bus cabling.
• Output Saturated / Frozen — Typically a failed output driver on one or more channels; not field-repairable.

Reliability in Harsh Conditions

The DSAO120 was engineered for the environments where process control actually happens — not a clean server room, but a compressor station in the desert, a paper mill with 90% humidity, or an offshore platform where the cabinet vibrates continuously at 5–150 Hz.

ABB designed the Advant I/O series to IEC 60068 environmental test standards. The DSAO120 specifically is qualified for:

• Vibration: Sinusoidal 10–150 Hz, 1g acceleration — survives the mechanical noise of rotating machinery mounted nearby.
• Shock: 15g half-sine pulse — tolerates the kind of impact that happens when a cabinet door slams or a nearby pump trips hard.
• Thermal cycling: Repeated excursions from 0 °C to 55 °C without output drift — critical for outdoor substations with day/night temperature swings.
• Humidity: 95% RH non-condensing — handles the steam and moisture ingress common in pulp mills and water treatment facilities.
• EMC immunity: Designed to IEC 61000-4 series — resists the conducted and radiated interference generated by variable-frequency drives and large motor starters sharing the same cabinet.

Every unit we ship is inspected for PCB integrity, connector condition, and front-panel label legibility. Modules showing signs of thermal stress, corrosion, or physical damage are rejected before they reach our shipping bench. You receive a card that is ready to perform, not one that will fail again in six months.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian — one of China’s primary export hubs with direct access to DHL, FedEx, and UPS international express networks. Here’s exactly what happens after you confirm your order:

• Same-day dispatch for orders confirmed before 15:00 CST. Orders placed after cutoff ship the following morning.
• ESD-safe packaging: Module is sealed in an anti-static bag, cushioned with conductive foam, and placed in a double-wall export carton. No exceptions.
• Commercial invoice & packing list prepared with accurate HS code (8537.10) and declared value for smooth customs clearance.
• DHL Express / FedEx International Priority: Transit times — Southeast Asia 1–2 days, Europe 3–4 days, North America 3–5 days, Middle East 2–3 days, Australia 3–4 days.
• Tracking number sent to your email within 2 hours of carrier pickup.
• Customs documentation support: We provide end-use certificates and origin declarations on request to facilitate import clearance in regulated markets.

If your plant is facing an active shutdown and standard express isn’t fast enough, contact us directly on WhatsApp. We have arranged charter courier services for critical situations — the conversation starts with your message.

Contact Information

📧 Email: [email protected]
💬 WhatsApp: +86 18359268345
🌐 Web: siemensplc.com
