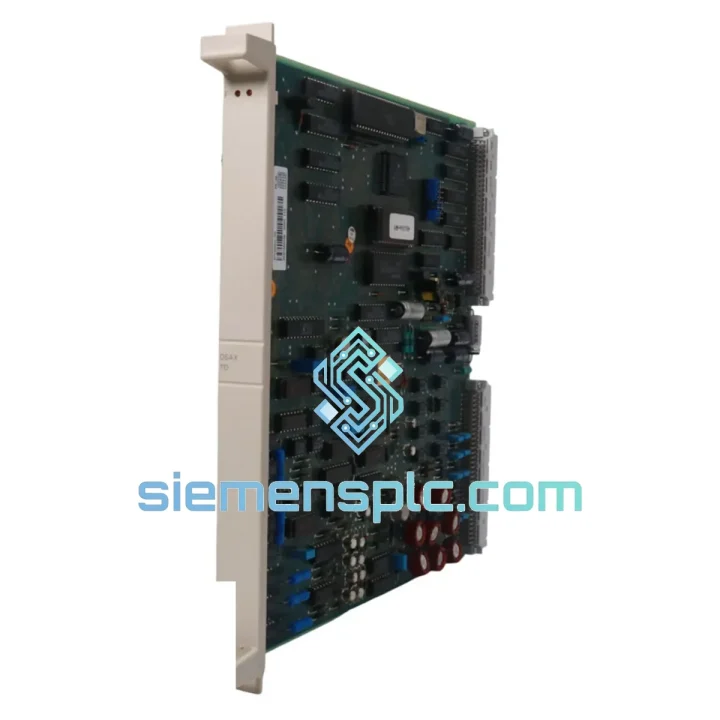

ABB DSAX110 57120001-PC Analog I/O Module

ABB DSAX110 57120001-PC: Stop the Bleeding — Get Your INFI 90 Line Back Online Today

Every minute your INFI 90 system sits idle, the losses compound. A failed DSAX110 analog I/O module doesn’t just kill one loop — it can cascade into a full process shutdown, triggering safety interlocks, forcing manual overrides, and putting your team under pressure they shouldn’t have to face. We’ve been there. We know what a 4 AM call from the control room sounds like.

That’s why we stock the ABB DSAX110 (57120001-PC) ready to ship from Xiamen. No waiting on ABB’s lead times. No chasing distributors who haven’t touched INFI 90 hardware in a decade. You call, we ship — same day if you reach us before 3 PM CST.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Common failure signatures that point to a dead DSAX110:

• All channels reading 0 mA or rail-high (20 mA): Internal A/D converter failure or blown input protection. Don’t waste time recalibrating — swap the card.
• Intermittent channel dropouts under load: Capacitor aging on the isolation barrier. Typically worsens with ambient temperature above 45 °C. A thermal camera scan of the card cage will confirm hot spots.
• Module Bus fault LED lit, no communication: Check the backplane edge connector for oxidation first. If cleaning doesn’t restore comms within two reseats, the bus interface IC is gone.
• Output channels stuck at last value (freeze): Watchdog timeout on the D/A output latch. Often triggered by a momentary power dip. If a hard reset doesn’t clear it, the output driver stage has failed.
• Erratic readings on one channel only: Field-side wiring issue 70% of the time — check terminal block and cable shield continuity before condemning the module. If wiring checks out, the channel’s isolation transformer is shorted.

Step-by-step hot-swap replacement procedure:

1. Notify the control room. Place affected loops in manual mode at the DCS operator station. Confirm with the shift supervisor before touching hardware.
2. Document the slot address. Note the physical slot number in the card cage and the module address configured in the INFI 90 engineering database (Composer or BN90). The DSAX110 uses automatic slot addressing via the backplane — no DIP switches on this card — but confirm the slot assignment in your I/O list before pulling the module.
3. Check termination unit (TU) compatibility. The DSAX110 pairs with the DTAX110 termination unit. Verify your TU model before insertion. Forcing a mismatched TU will damage the backplane connector on both the module and the TU.
4. Power state. INFI 90 supports live insertion on most card cages, but check your site’s safety procedures. If the cage requires de-energizing, coordinate with electrical safety before proceeding.
5. Seat the replacement module firmly. Apply even pressure across the front panel until the backplane connector fully engages. A partial seat causes intermittent bus errors that are extremely difficult to diagnose remotely.
6. Verify firmware revision. After insertion, the MC or PCU will poll the new module. Confirm the firmware revision displayed in Composer matches the revision expected by your system’s I/O configuration. A mismatch will generate a configuration mismatch alarm — do not ignore it.
7. Return loops to automatic. Bring each loop back to auto one at a time. Monitor PV and output for 5 minutes before moving to the next loop. Watch for any offset that might indicate a calibration drift between the old and new module.
8. Log the replacement. Record the failed module’s serial number, slot address, failure mode, and replacement date in your maintenance management system. ABB INFI 90 modules have long service lives — a second failure in the same slot within 12 months points to a field-side root cause, not a module defect.

Reliability in Harsh Conditions

The DSAX110 was not designed for a climate-controlled server room. ABB engineered it for the realities of industrial plant environments — and those realities are unforgiving.

Vibration: The module’s PCB layout and component selection comply with IEC 60068-2-6 sinusoidal vibration testing. Conformal coating on the PCB prevents micro-fractures in solder joints caused by continuous low-frequency vibration from rotating machinery — compressors, pumps, and turbines running 24/7 within meters of the control cabinet.

Thermal cycling: Industrial processes don’t run at steady state. Startups, shutdowns, and load swings create thermal cycles that stress every solder joint and electrolytic capacitor on the board. The DSAX110’s 0–60 °C operating range with a −40–85 °C storage rating means it survives the temperature extremes of an unheated equipment room in winter and a poorly ventilated cabinet in summer without degrading its calibration accuracy.

Humidity and condensation: Coastal plants, paper mills, and chemical facilities push ambient humidity to the limits of what electronics can tolerate. The conformal coating applied to DSAX110 boards provides a barrier against moisture ingress, preventing the dendritic growth and leakage currents that kill unprotected analog circuits. Rated to 95% RH non-condensing — and in practice, the coating buys you margin beyond that spec.

EMI and ground loops: Galvanic isolation on every channel is not a marketing feature — it’s the reason your 4–20 mA signals stay clean when a 480 V motor starter fires up three meters away. The DSAX110’s isolation barrier blocks common-mode noise and eliminates ground loop currents that would otherwise corrupt your process variable readings and destabilize your PID loops.

Every unit we ship has been inspected for physical damage to the conformal coating, connector pins, and PCB. Refurbished units are functionally tested under load before dispatch. We don’t ship modules that we wouldn’t install ourselves.

Global Express Logistics

Our warehouse is located in Xiamen, China — a major international logistics hub with direct DHL and FedEx gateway access. Here’s what happens after you confirm your order:

• Order confirmed before 3 PM CST: Module is picked, inspected, and packed same day. ESD-safe anti-static bag, foam-lined carton, desiccant pack. Export documentation prepared in parallel.
• DHL Express / FedEx International Priority: Transit times — Southeast Asia: 1–2 days. Europe: 2–3 days. North America: 2–3 days. Middle East: 2–3 days. Australia: 2–3 days.
• Export documentation included: Commercial invoice, packing list, Certificate of Origin. HS code pre-classified for smooth customs clearance. We handle the paperwork — you focus on getting your plant back online.
• Full shipment tracking: AWB number provided within 2 hours of dispatch. Real-time tracking link sent directly to your email.
• Customs clearance support: Our logistics team monitors shipments through customs and proactively contacts you if any documentation is required from the importer side. We’ve shipped to 60+ countries — we know where the friction points are.
• Emergency freight options: For critical shutdowns, we can arrange hand-carry courier service to most major industrial regions. Contact us directly on WhatsApp to discuss options.

Downtime costs money every hour. We built our logistics process around that fact.
