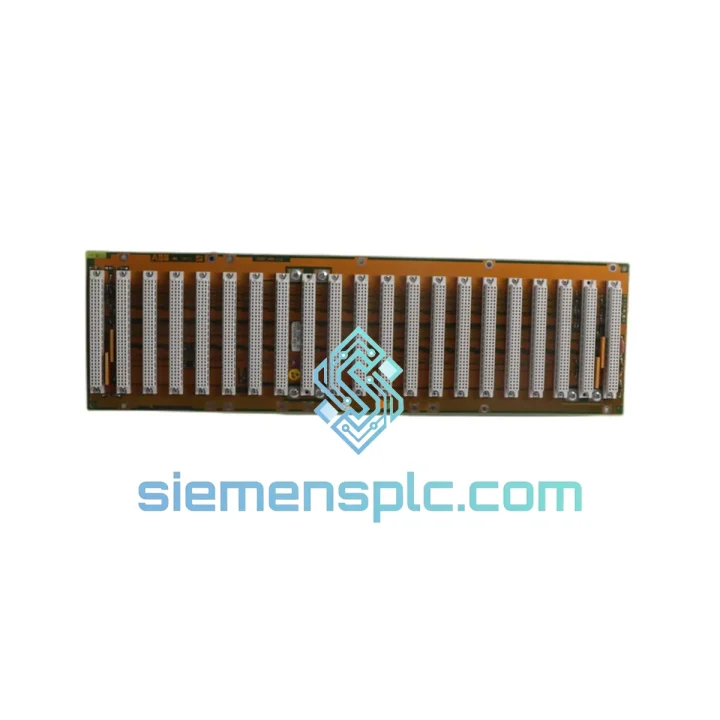

ABB DSBB170A 57310256-EB Bus Backplane Board

ABB DSBB170A 57310256-EB — Stop the Bleeding: Get Your ADVANT Rack Back Online Today

Your rack is dark. Every minute the DSBB170A backplane stays failed, your process train is hemorrhaging money — lost throughput, idle crews, and a maintenance window that’s already blown past its budget. We’ve been there. The ABB DSBB170A (57310256-EB) Bus Backplane Board is the single point of failure that takes down an entire S100 rack when it goes — and it’s the one spare most plants don’t have on the shelf until it’s too late.

We stock verified DSBB170A units in Xiamen, ready for same-day dispatch via DHL Express or FedEx International Priority. No waiting on ABB’s OEM lead times. No broker runaround. You get a traceable, inspected board on your bench within 48–72 hours to most destinations worldwide.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

How to confirm the DSBB170A is your failure point:

A failed backplane rarely throws a clean fault code — it usually presents as a cascade. You’ll see all modules in the affected rack go to fault simultaneously, or the processor module (DSPC series) loses communication with every I/O sub-module at once. If swapping the processor card doesn’t restore comms, and individual I/O modules test fine in another rack, the backplane is your culprit.

Common fault signatures pointing to DSBB170A failure:

• All S100 bus modules in one rack report communication loss simultaneously
• Rack power rails present but no module initializes — check +5 V and ±15 V distribution traces on the backplane
• Intermittent rack faults that correlate with vibration or thermal cycling — cracked solder joints on edge connectors
• Visible burn marks, discoloration, or delamination near the power input connector area
• Bus parity errors logged in the ADVANT event list without a clear module-level source

Replacement procedure — field-tested steps:

1. Document slot assignments before pulling any module. Photograph the rack front and note every module’s slot position and address switch setting. The ADVANT system does not auto-discover slot addresses — you will need to restore them exactly.
2. Power down the rack via the rack’s local isolator. Confirm all module LEDs are extinguished. Do not hot-swap a backplane.
3. Remove all front-mounted modules in sequence, storing them in anti-static bags labeled by slot number.
4. Disconnect rear wiring harnesses if present (field termination assemblies). Label each connector before removal.
5. Extract the failed DSBB170A — typically secured by rack chassis screws at the top and bottom rails. Inspect the chassis connector guides for damage before inserting the replacement.
6. Install the new DSBB170A. Verify the revision marking (57310256-EB) matches your system’s rack assembly drawing. Seat firmly and torque chassis screws to spec.
7. Reinstall modules in original slot order. Verify address switch (DIP or rotary) settings on each module match your pre-removal documentation before powering up.
8. Power up and monitor the ADVANT event list for the first 5 minutes. All modules should initialize without bus errors. If a single module faults, the issue is that module — not the backplane.

Configuration note: The DSBB170A itself carries no firmware and requires no configuration — it is a passive board. All addressing is handled by the modules plugged into it. The critical step is ensuring module address switches are restored correctly post-swap.

Reliability in Harsh Conditions

Process plants don’t give hardware an easy life. The DSBB170A was engineered for continuous duty in environments that would destroy consumer-grade electronics within weeks. The board’s multi-layer PCB construction maintains signal integrity across the S100 bus even under the mechanical stress of constant vibration from rotating equipment — compressors, pumps, and turbines running 24/7 in adjacent bays.

Thermal performance is equally robust. The passive design means no active components generating heat on the backplane itself, which eliminates the most common failure mode in active backplane designs. Operating range of 0 °C to +55 °C covers the full envelope of industrial control room and marshalling cabinet environments, including poorly air-conditioned facilities in tropical climates.

Humidity tolerance up to 95% RH non-condensing addresses the reality of coastal refineries, offshore platforms, and equatorial process plants where moisture ingress is a constant threat. Each unit we ship has been inspected for PCB surface contamination, flux residue buildup, and connector oxidation — the three humidity-related failure modes we see most often on boards pulled from high-humidity sites.

Every DSBB170A in our inventory is stored in a climate-controlled warehouse, individually bagged in anti-static packaging with a humidity indicator card. Boards that have been in storage for extended periods are re-inspected before dispatch. You’re not getting a board that’s been sitting in a damp container — you’re getting a unit that’s ready to go into service.

Global Express Logistics

Our dispatch hub is in Xiamen, China — one of the most logistics-efficient export cities on the mainland, with direct DHL and FedEx gateway access. Here’s exactly how your order moves:

• Order confirmed before 14:00 CST: Same-day pick, pack, and handover to DHL Express or FedEx International Priority
• Packaging: Anti-static bag → foam-lined rigid carton → outer shipping carton. Fragile and ESD-sensitive labels applied. Humidity indicator card included for long-haul routes
• Documentation: Commercial invoice, packing list, and certificate of conformance generated at dispatch. HS code 8537.10 applied for customs clearance. DDP and DAP Incoterms available on request
• Transit times (typical): Southeast Asia 1–2 days | Middle East 2–3 days | Europe 2–4 days | Americas 3–5 days | Africa/Oceania 4–6 days
• Tracking: AWB number sent within 2 hours of carrier pickup. Real-time tracking link provided via email and WhatsApp
• Customs support: We handle export declarations from the China side. For import clearance, we provide all required documentation and can coordinate with your customs broker directly

If your plant is in a remote location or a country with complex import requirements, contact us before ordering. We’ve shipped to refineries in Kazakhstan, paper mills in Indonesia, and power plants in Nigeria — we know how to get hardware through difficult customs environments without delays that extend your downtime.
