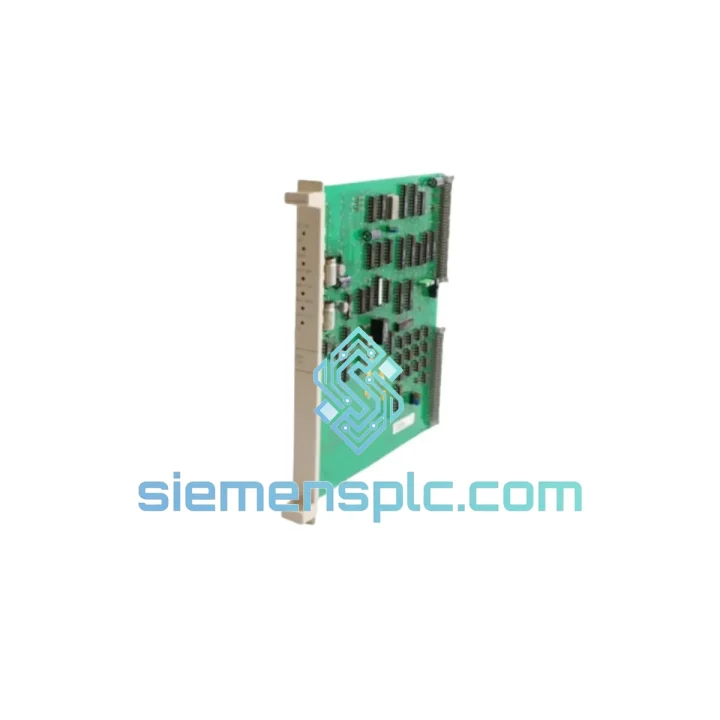

ABB DSBC173A 3BSE005883R1 Bus Extender Board – Advant Controller

ABB DSBC173A 3BSE005883R1 — S100 Backplane Bus Extender for Advant Controller AC 450 / AC 410 DCS Platforms

The ABB DSBC173A (reference number 3BSE005883R1) is a passive-active hybrid bus extender board engineered for the S100 I/O bus architecture embedded in ABB’s Advant Controller family. Its primary function is to bridge the internal backplane communication bus between physically separate rack enclosures, allowing a single AC 450 or AC 410 CPU to address I/O modules distributed across multiple subrack assemblies without introducing additional controller nodes or gateway overhead. In process-critical environments where channel count must scale beyond a single rack’s physical slot limit, the DSBC173A provides the deterministic, low-latency bus extension path that the Advant architecture demands.

Unlike software-based I/O expansion strategies that introduce protocol translation latency, the DSBC173A operates at the hardware bus layer. Signal propagation across the extended S100 bus remains synchronous with the controller’s scan cycle, preserving the real-time determinism that closed-loop process control requires. This characteristic makes the module indispensable in applications where millisecond-level I/O update consistency is a hard engineering constraint — turbine governor control, boiler drum level regulation, and compressor anti-surge logic being representative examples.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The DSBC173A’s circuit architecture addresses three distinct engineering challenges inherent to multi-rack DCS expansion: signal integrity over extended cable runs, ground-loop isolation between physically separate rack enclosures, and bus arbitration continuity under transient fault conditions.

Signal Integrity and Bus Buffering: The S100 bus operates as a parallel, synchronous data highway. When the bus is extended beyond a single subrack, signal reflections and capacitive loading become measurable degradation factors. The DSBC173A incorporates line-driver and line-receiver ICs at both the transmit and receive interfaces, restoring signal amplitude and edge sharpness to within the S100 specification window. This buffering stage ensures that the extended bus segment presents the same electrical characteristics to downstream I/O modules as a native backplane connection, regardless of cable length within the ABB-specified extension range.

Galvanic Isolation Architecture: Ground potential differences between rack enclosures — particularly in large installations where racks are separated by tens of meters — can inject common-mode noise into the bus signal lines. The DSBC173A addresses this through transformer-coupled isolation on the inter-rack bus interface. This galvanic barrier blocks DC and low-frequency common-mode currents while passing the differential bus signals with minimal phase distortion, maintaining timing margins within the S100 protocol’s setup and hold requirements.

EMC Design: The board layout follows ABB’s internal EMC design rules for DCS hardware: ground planes are segmented to prevent high-frequency return currents from coupling into analog reference planes; decoupling capacitors are placed at each IC power pin with values selected to suppress both conducted and radiated emissions in the 150 kHz to 30 MHz range; and the inter-rack cable interface includes common-mode chokes to attenuate externally induced RF interference. These measures allow the DSBC173A to operate in industrial environments with variable-frequency drives, high-current switchgear, and welding equipment in proximity — conditions that routinely exceed the EN 61000-4-3 radiated immunity test level of 10 V/m.

Fault Containment Logic: The DSBC173A includes passive fault containment circuitry that prevents a failure on the extended bus segment from propagating back to the primary rack backplane. If the inter-rack cable is disconnected or short-circuited, the bus driver outputs enter a high-impedance state, isolating the fault. The primary rack’s CPU continues to communicate with I/O modules in the base subrack without interruption, and the fault condition is flagged through the Advant Controller’s diagnostic channel for operator notification.

System Integration Benefits

• Deterministic Scan Cycle Preservation: Bus extension at the hardware layer adds no software overhead to the controller’s task scheduler. The CPU’s I/O scan cycle time remains unchanged regardless of whether I/O modules are in the primary rack or in an extended rack connected via DSBC173A, which is a prerequisite for closed-loop control applications with sub-100 ms cycle time requirements.
• Zero-Configuration Expansion: The DSBC173A requires no firmware modification, no address remapping, and no changes to the controller’s I/O configuration database. I/O modules in the extended rack are addressed identically to those in the primary rack, eliminating the engineering effort and risk associated with software-based expansion solutions.
• Diagnostic Transparency: Fault conditions on the extended bus segment are reported through the Advant Controller’s standard diagnostic framework. Maintenance personnel can identify bus extension faults using the same tools and procedures used for primary rack diagnostics, without specialized test equipment or additional diagnostic software.
• Incremental Capacity Scaling: A single AC 450 or AC 410 CPU can support multiple extended racks via cascaded DSBC173A installations, allowing I/O capacity to be scaled incrementally as process requirements grow. This avoids the capital expenditure of deploying additional controller nodes for capacity expansion alone.
• Reduced Wiring Infrastructure Cost: Centralizing I/O expansion through bus extension rather than distributed I/O nodes eliminates the need for additional communication cables, junction boxes, and network switches between controller nodes, reducing both material cost and installation labor.
• Long-Term Spare Parts Availability: The DSBC173A is a discrete, field-replaceable module. A single spare unit covers bus extension requirements across all rack positions in the Advant AC 450/AC 410 family, simplifying spare parts inventory management for plant maintenance departments.
• Compatibility with Safety Loop Architectures: The galvanic isolation provided by the DSBC173A supports deployment in installations where the extended rack contains I/O modules assigned to SIL-rated safety loops. The isolation barrier prevents common-mode faults from compromising the integrity of safety-critical signal paths.
• Minimal Footprint in Existing Rack Assemblies: The plug-in board form factor occupies a single slot in the subrack, preserving the maximum number of slots for I/O modules. No external mounting hardware or additional enclosure space is required beyond the standard Advant subrack assembly.

Quality Assurance & Global Logistics

Every ABB DSBC173A 3BSE005883R1 unit dispatched from our Xiamen, China facility undergoes a structured pre-shipment verification process. Visual inspection covers PCB surface condition, component seating, connector pin integrity, and label authenticity against ABB’s original hardware documentation. Functional verification includes power-on continuity checks and bus interface signal level measurement where test fixtures permit. Units sourced from decommissioned plant inventories are subject to additional cleaning, inspection, and re-testing protocols before being offered for sale.

Packaging follows anti-static handling standards: each board is sealed in a conductive poly bag with desiccant and humidity indicator card, placed in foam-lined rigid carton, and labeled with part number, serial number, and inspection record. Export documentation — commercial invoice, packing list, HS code classification (8537.10), and certificate of origin — is prepared for all international shipments. Air freight via DHL Express, FedEx International Priority, or UPS Worldwide Express is standard for urgent orders, with typical transit times of 3–5 business days to Europe and North America. Sea freight consolidation is available for volume orders where lead time permits.

A 12-month warranty covers defects in materials and workmanship from the date of shipment. Warranty claims are processed with a target response time of 48 hours. Replacement units are dispatched from Xiamen stock upon fault confirmation, and defective units are returned for root-cause analysis at no additional cost to the buyer.
