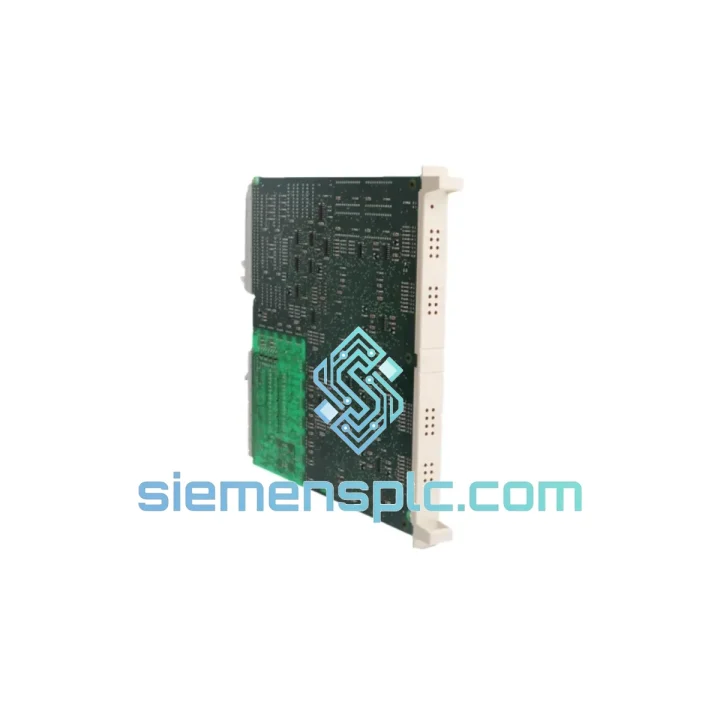

ABB DSDI115 57160001-NV DCS Digital Output Board – Advant OCS MOD 300

ABB DSDI115 57160001-NV — Discrete Output Interface Board for Advant OCS and MOD 300 Distributed Control Systems

The DSDI115, carrying ABB part number 57160001-NV, is a factory-original digital output board engineered for deployment within ABB’s Advant OCS and MOD 300 distributed control system architectures. These platforms remain the backbone of process automation in oil & gas, power generation, pulp & paper, and chemical manufacturing facilities worldwide. The DSDI115 occupies a dedicated I/O slot on the S100 backplane bus, translating controller-issued discrete commands into field-level switching signals that drive solenoid valves, motor starters, relay coils, and indicator devices. Its role in the control loop is deterministic: it is the final electrical boundary between the controller’s logic domain and the physical process layer.

Unlike generic replacement boards, the DSDI115 57160001-NV carries ABB’s full manufacturing traceability — part number silkscreened on the PCB, original firmware burned to on-board EPROM, and hardware revision stamped on the label. Each unit sourced through siemensplc.com is inspected for physical integrity, connector pin condition, and functional output switching before dispatch. Stock is held in Xiamen, China, with same-day processing for in-stock orders.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The DSDI115’s output stage is built around a bank of optocoupler-isolated driver transistors, one per channel. Each channel’s control signal originates from the S100 backplane data bus as a latched TTL-level bit. The on-board latch register holds the output state independently of bus activity, ensuring that a momentary bus arbitration event or controller scan-cycle gap does not cause spurious output toggling — a critical requirement in process safety applications where unintended actuator movement can trigger emergency shutdowns.

The optocoupler barrier provides galvanic isolation rated at 500 VAC between the controller-side logic and the field-side load circuit. This isolation architecture serves two functions: it protects the S100 backplane from field-side ground loops and transient overvoltages (common in motor-control environments where inductive kickback can reach several hundred volts), and it prevents common-mode noise from coupling back into the controller’s analog measurement channels through shared ground paths.

On the field side, each output driver is protected by a transient voltage suppressor (TVS) diode rated for repetitive clamping of inductive load transients. The TVS clamp voltage is selected to be below the breakdown threshold of the driver transistor, ensuring that solenoid valve coil de-energization transients — which can reach 5–10× the supply voltage in unsnubbed circuits — are absorbed at the board level rather than propagating to the isolation barrier.

The board’s EMC design follows ABB’s internal shielding and trace-routing standards for industrial I/O hardware. Power and signal traces are routed on separate PCB layers with a continuous ground plane interposed, reducing radiated emissions and improving immunity to conducted interference per IEC 61000-4-4 (electrical fast transient) and IEC 61000-4-5 (surge) test levels. The edge connector fingers are gold-plated to maintain low-resistance contact in environments where vibration and thermal cycling can cause fretting corrosion on tin-plated contacts over multi-year service intervals.

System Integration Benefits

• Zero-reconfiguration replacement: The DSDI115 57160001-NV is hardware-identical to all prior production revisions of the DSDI115. Slot insertion restores full I/O functionality without requiring changes to the controller’s I/O configuration database or re-download of application logic.
• Deterministic output latency: The latched output register architecture decouples field-side switching from backplane bus scan timing, delivering consistent output response within one controller scan cycle regardless of bus loading conditions.
• Diagnostic transparency: Each channel’s output state is readable back through the backplane bus, enabling the controller to perform output-readback verification — a standard diagnostic technique in safety-instrumented system (SIS) partial-stroke testing and proof-test procedures.
• Hot-swap compatibility: On Advant OCS racks equipped with live-insertion capability, the DSDI115 can be removed and reinserted under power without requiring a rack shutdown, reducing mean time to repair (MTTR) in continuous-process environments where planned outages are scheduled months in advance.
• Multi-load type support: The output driver’s current rating and TVS protection accommodate resistive loads (indicator lamps, heating elements), inductive loads (solenoid valves, relay coils), and capacitive loads (solid-state relay inputs) without external snubber circuits in most standard applications.
• Reduced spare-parts inventory complexity: A single DSDI115 board covers all 16 output channels in its slot. Compared to channel-level fuse or relay replacement strategies, board-level sparing simplifies inventory management and reduces the number of distinct part numbers a maintenance team must stock.
• Long-term platform continuity: ABB’s Advant OCS and MOD 300 platforms have documented installed bases with operational lifespans exceeding 25 years. Genuine OEM spare boards sourced through authorized channels extend plant asset life without requiring a full DCS migration project.
• Interoperability with redundant controller configurations: In dual-controller redundant Advant OCS configurations, the DSDI115 participates in the I/O bus arbitration protocol, allowing the standby controller to assume output ownership within the system’s bumpless transfer window upon primary controller failure.

Quality Assurance & Global Logistics

Every DSDI115 57160001-NV unit dispatched from siemensplc.com is a genuine ABB-manufactured board — not a third-party clone, not a remanufactured substitute, and not a board harvested from scrapped equipment without functional verification. The sourcing chain is documented: original ABB part number 57160001-NV is confirmed against the board’s silkscreen marking and label before acceptance into stock.

Pre-shipment inspection covers visual examination of the PCB for cracked solder joints, damaged components, and connector pin deformation; functional output switching verification using a bench test fixture that replicates the S100 backplane electrical interface; and ESD sensitivity handling per ANSI/ESD S20.20 throughout the inspection and packaging process.

Packaging for international transit uses a dual-layer approach: the board is sealed in a conductive anti-static bag (surface resistance < 10⁴ Ω/sq), then placed in a foam-lined rigid carton sized to prevent movement during air freight handling. For multi-board orders, individual boards are separated by foam dividers to prevent contact damage.

Shipment originates from Xiamen, China — a major international logistics hub with direct DHL Express, FedEx International Priority, and UPS Worldwide Express connections to destinations across Europe, North America, Southeast Asia, the Middle East, and Australia. Standard transit times are 3–5 business days to most destinations. Export documentation — commercial invoice, packing list, and certificate of origin — is prepared for each shipment to support customs clearance. HS code classification assistance is available upon request.

A 12-month functional warranty covers each unit against defects in materials and workmanship from the date of shipment. Warranty claims are processed with a replacement-first policy: a replacement unit is dispatched upon receipt and inspection of the returned board, minimizing plant downtime.
