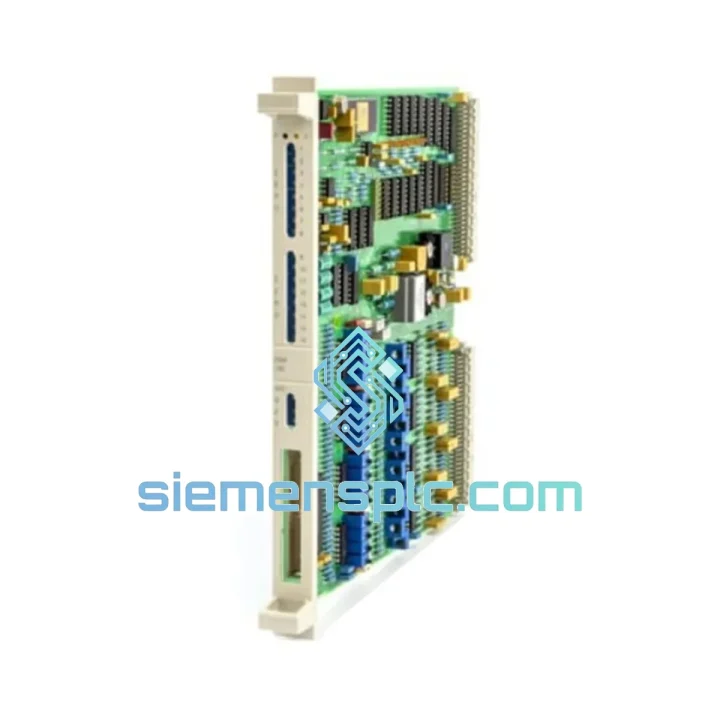

ABB DSDI130 Digital Input Board

ABB DSDI130 — Stop the Clock on Your Downtime: Same-Day Dispatch, Verified Original

Every minute your line sits idle costs real money. When a digital input board fails inside your ABB Advant or Master DCS, you don’t have time for a three-week lead time from the OEM. The ABB DSDI130 is in stock at our Xiamen warehouse right now — tested, verified original, and ready to ship via DHL or FedEx Express within hours of order confirmation. We’ve seen plants lose $40,000+ per hour during unplanned shutdowns. Our job is to cut that window as short as possible.

This is not a generic listing. This page is written by engineers who have physically handled DSDI130 failures on live DCS racks — from power generation turbine control panels to offshore platform process controllers. We know exactly what breaks, what to check before you swap, and how to get your system back online without creating a second fault.

⚡ URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Before you pull the DSDI130 out of the rack, run through this checklist. Swapping a board that isn’t actually faulty wastes time and risks introducing new faults during reinstallation.

Step 1 — Confirm the fault is board-level, not field-wiring. Check the terminal block for loose or corroded connections. A single open-circuit field wire will cause the same symptom as a dead input channel. Use a multimeter to verify 24 VDC is present at the input terminal before condemning the board.

Step 2 — Read the diagnostic LEDs. The DSDI130 has per-channel status LEDs on the front face. If all LEDs are dark with field power confirmed, the board’s internal power supply or optocoupler array has likely failed. If only specific channels are dark, suspect field-side wiring or the connected sensor/switch.

Step 3 — Check for fault codes in the DCS operator station. Common fault codes associated with DSDI130 failures include I/O bus communication errors — typically logged as “Module Not Responding” or “I/O Timeout” in the Advant event log. These can also be caused by a degraded backplane connector — clean the gold-finger edge connector with isopropyl alcohol before inserting the replacement board.

Step 4 — Address configuration before hot-swap. The DSDI130 does not use DIP switches for channel addressing — addressing is handled via the Advant Engineer’s Workbench software. Confirm the slot address in your I/O configuration database matches the physical rack slot before powering up. A mismatch will cause the controller to reject the module and log a configuration fault.

Step 5 — Firmware revision matching. If your system is running a specific firmware revision on the AC110 or AC160 controller, verify the DSDI130 hardware revision is compatible. Revision mismatches are rare but have been observed in systems that have undergone partial upgrades. Request the hardware revision label from us before ordering if you have any doubt.

Step 6 — Power-cycle sequence after replacement. After seating the new board, do not immediately force a full controller restart. Allow the Advant system to auto-detect the module — typically within 30–60 seconds. Monitor the event log for successful module registration before returning the loop to automatic control.

Reliability in Harsh Conditions

The DSDI130 was engineered for the realities of industrial environments — not a climate-controlled server room. ABB designed this board to operate continuously in conditions that would destroy consumer-grade electronics within weeks.

The optocoupler isolation on every input channel provides galvanic separation between field wiring and the backplane bus. This means a ground fault or voltage spike on a field cable cannot propagate into the controller — a critical protection feature in environments where welding equipment, large motors, and variable-frequency drives share the same electrical infrastructure.

The board’s conformal coating protects the PCB against humidity and condensation, which is particularly relevant in coastal industrial facilities, offshore platforms, and tropical climates where relative humidity can exceed 90% during seasonal changes. We have supplied DSDI130 units to petrochemical plants in Southeast Asia and LNG terminals in the Middle East where ambient conditions are consistently punishing.

Vibration resistance is achieved through the board’s rigid backplane mounting and through-hole component construction — a deliberate design choice by ABB for DCS hardware that must remain stable in environments with continuous mechanical vibration from pumps, compressors, and rotating machinery. Unlike surface-mount-only designs, the DSDI130’s critical components are mechanically anchored to the PCB, reducing the risk of solder joint fatigue over years of continuous operation.

All units we ship are stored in anti-static, humidity-controlled conditions and are individually tested under load before dispatch. We do not ship boards that have been sitting in uncontrolled warehouse environments.

Global Express Logistics

Our dispatch hub is located in Xiamen, Fujian Province — one of China’s primary export ports with direct DHL and FedEx Express service to major industrial hubs worldwide. Here is exactly how your order moves from our shelf to your site:

Order confirmed before 14:00 CST: Same-day packaging and export documentation preparation. DHL/FedEx pickup scheduled for that afternoon.

Export compliance: All shipments are screened against export control regulations. HS code 8537.10 is applied for customs classification. Commercial invoice, packing list, and certificate of conformance are included with every shipment. For destinations requiring additional documentation, notify us at order time.

• Southeast Asia (Singapore, Thailand, Malaysia): 2–3 business days
• Middle East (UAE, Saudi Arabia, Qatar): 3–4 business days
• Europe (Germany, Netherlands, UK): 3–5 business days
• North America (USA, Canada): 4–5 business days
• Australia / New Zealand: 3–4 business days

For plant shutdowns or turnaround situations where every hour counts, we can arrange FedEx International Priority with next-flight-out options. Contact us directly on WhatsApp for real-time logistics coordination — we respond around the clock for urgent requirements.
