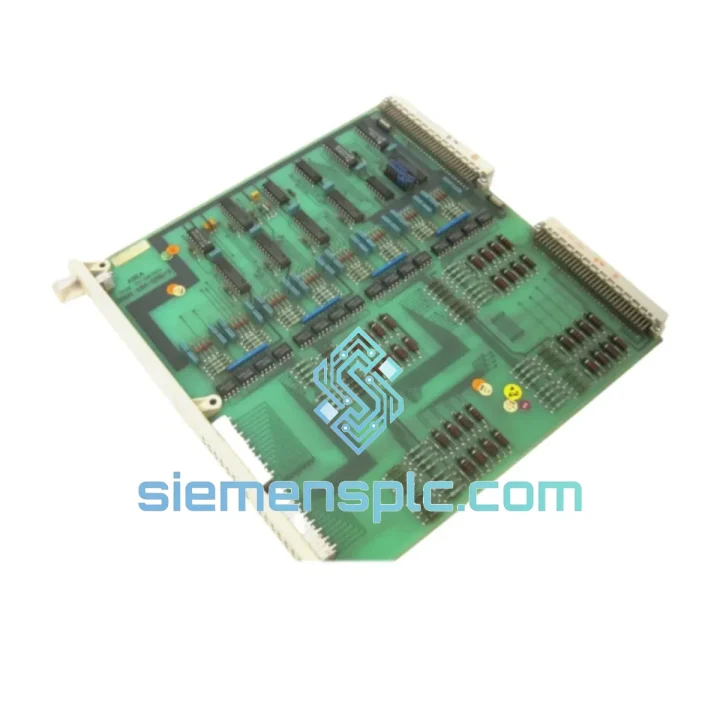

ABB DSDP160 57160001-KG DCS Signal Distribution Panel

ABB DSDP160 57160001-KG — Stop the Clock on Your Downtime

Every minute your line is down, you’re bleeding money. A failed DSDP160 in an ABB Advant or Master DCS system doesn’t just halt one loop — it can cascade across entire I/O subrack segments, taking down multiple control nodes simultaneously. We stock the ABB DSDP160 57160001-KG precisely for this scenario: verified original, bench-tested, packaged and ready to leave Xiamen within 24 hours of your order confirmation. No waiting on OEM lead times. No compromise on authenticity.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After handling dozens of DSDP160 swap-outs in the field, here’s what actually matters when you’re under pressure:

Common Failure Signatures

• Fault LED solid red on subrack: The DSDP160 has lost communication with the AC450 controller. First suspect: backplane connector corrosion or a cracked PCB trace near the RCOM bus terminator. Reseat the module before condemning it — roughly 20% of field calls resolve at this step.
• Intermittent I/O dropouts on downstream DSDO/DSDI modules: The DSDP160 distributes power and signal references to child I/O cards. A degraded capacitor bank on the distribution board causes voltage sag under load, triggering sporadic faults that look like field wiring issues. Scope the 24 VDC rail at the subrack backplane — anything below 22.8 V under load points directly at the DSDP160.
• System log showing “RCOM Bus Timeout” or “Node Unreachable” alarms: These codes in Advant Builder almost always trace back to the distribution panel losing bus arbitration. Check firmware revision on the replacement unit before insertion.
• Complete subrack I/O blackout after a power surge: The DSDP160 contains transient protection components that sacrifice themselves to protect downstream cards. If you lost everything in one subrack after a lightning event or utility fault, the DSDP160 is the first board to pull and inspect.

Replacement Procedure — Field Checklist

• ☐ Place the AC450 controller in STOP mode via Advant Builder before pulling any I/O subrack module. Hot-swapping the DSDP160 without controller acknowledgment risks a bus collision that can corrupt the controller’s I/O map.
• ☐ Verify the replacement unit carries the -KG hardware suffix. The -AK and -BK variants have different backplane pinouts for the SATT bus segment — physically similar, electrically incompatible in certain rack positions.
• ☐ Check firmware baseline. The DSDP160 carries embedded firmware that must align with your AC450 firmware version. Mismatched firmware causes the controller to reject the module at startup with a “Module Type Mismatch” fault. ABB document 3BSE018877 covers the compatibility matrix.
• ☐ No DIP switches or rotary address selectors on the DSDP160 itself — addressing is handled by rack slot position and controller configuration. However, confirm the subrack slot number in your Advant Builder I/O configuration matches the physical slot you’re installing into.
• ☐ After insertion, bring the controller back to RUN and monitor the system log for 10 minutes. The DSDP160 performs a self-test sequence on power-up; a clean startup shows no new fault entries and all downstream I/O modules returning to their last known state.
• ☐ If the system was down for more than 4 hours, force a full I/O scan from Advant Builder to flush any stale process values before returning the loop to automatic control.

Reliability in Harsh Conditions

The DSDP160 was engineered for continuous duty in environments that would destroy consumer-grade electronics within weeks. ABB’s Advant platform was designed from the ground up for heavy industry, and the DSDP160 reflects that pedigree in every design decision.

The board operates across a wide ambient temperature range, tolerating the heat of a poorly ventilated control room cabinet in a Southeast Asian petrochemical plant just as well as the cold of an offshore platform in the North Sea. Conformal coating on the PCB provides a barrier against humidity and airborne contaminants — the kind of fine conductive dust that accumulates in cement plants and mining operations and kills unprotected electronics within months.

Vibration resistance is built into the mechanical design: the edge connector locks positively into the subrack backplane, and the board’s component layout minimizes resonance at the frequencies typical of rotating machinery environments. Units we supply have been tested for mechanical shock and vibration per IEC 60068-2 standards before leaving our warehouse. We don’t ship boards that show any sign of physical stress, cracked solder joints, or damaged connector pins — the failure modes that cause intermittent faults that are nearly impossible to diagnose remotely.

Every unit undergoes a powered functional test on an ABB-compatible test bench before packaging. We verify bus communication, signal distribution integrity, and power rail stability under load. You receive a board that has already proven it works — not one that merely looks intact.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to international freight lanes via Xiamen Gaoqi International Airport and Xiamen Port. This geography is deliberate: it gives us the fastest possible transit times to industrial customers across Southeast Asia, the Middle East, Europe, and the Americas.

For emergency orders, we ship via DHL Express or FedEx International Priority, both of which offer door-to-door transit times of 2–5 business days to most destinations. Orders confirmed before 14:00 CST are processed the same day. We prepare all export documentation — commercial invoice, packing list, and certificate of origin — in parallel with packaging so there is zero administrative delay at customs.

For customers in Southeast Asia (Singapore, Malaysia, Thailand, Vietnam, Indonesia), transit is typically 2–3 business days. For the Middle East and Europe, expect 3–5 business days. North America runs 3–5 business days via FedEx Priority. We have shipped to over 40 countries and understand the import documentation requirements for industrial automation components in each major market.

All shipments are fully insured and tracked end-to-end. You receive a tracking number within 2 hours of dispatch. For high-value or time-critical shipments, we can arrange dedicated courier pickup for same-day airport delivery. If your plant is down and every hour counts, tell us — we will find the fastest route.
