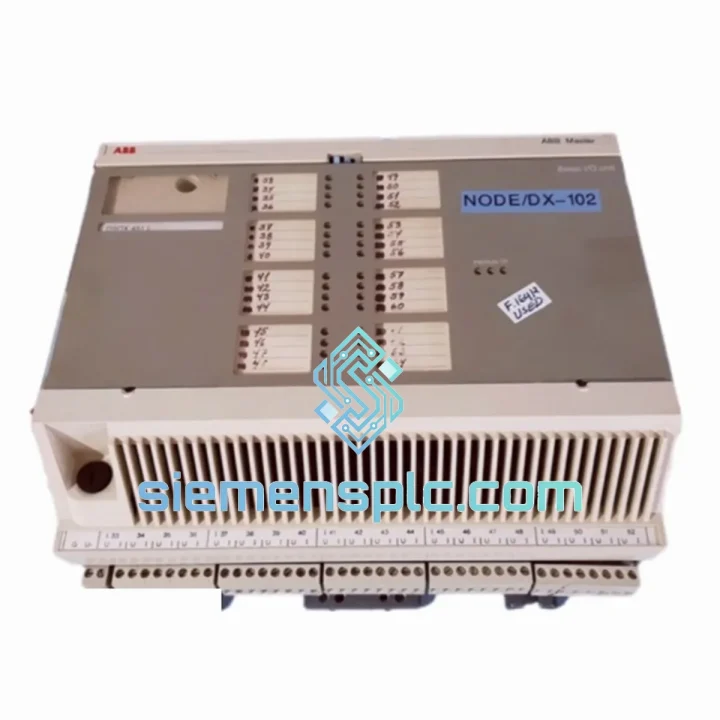

ABB DSDX451L DCS Analog Expansion Module

ABB DSDX451L: Stop the Clock on Your Downtime — Replacement Ships Today

Your DCS is down. Every minute the DSCS09x subrack sits idle, you’re bleeding production revenue. The DSDX451L low-level analog expansion unit is the exact card that’s holding your process hostage right now — and we have it on the shelf in Xiamen, tested, documented, and ready to clear customs before your maintenance window closes. We’ve shipped this module to power plants in Germany, refineries in the Middle East, and paper mills in Southeast Asia. We know what’s at stake when this card fails, and we move accordingly.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After handling dozens of DSDX451L swap-outs in the field, here are the failure patterns and replacement pitfalls that actually matter:

Common Failure Signatures:

• All channels reading max/min rail simultaneously — almost always the input multiplexer IC or the instrumentation amplifier stage. Not a field-repairable fault; replace the card.
• Single channel frozen or drifting — check terminal block screw torque first (0.5–0.6 Nm). Loose TC wiring causes exactly this symptom. If wiring is solid, the per-channel input filter capacitor has likely failed — replace the module.
• CJC offset error on all TC channels (systematic +/- shift) — the onboard CJC thermistor has drifted. Cross-check with a calibrated reference. If offset exceeds ±2 °C, the module is out of spec.
• Backplane communication fault / module not recognized by DSCS09x CPU — inspect the backplane connector pins for oxidation or mechanical damage before condemning the card. Clean with IPA and reseat. If fault persists, the backplane bus transceiver on the DSDX451L has failed.
• Intermittent faults correlating with ambient temperature rise — classic electrolytic capacitor ESR degradation. Modules in service for 10+ years in warm environments are prime candidates.

Replacement Procedure — Key Steps:

1. Document channel configuration before removal. Print or photograph the DSCS09x engineering station channel assignment screen. The DSDX451L does not store configuration internally — all parameterization lives in the DSCS09x CPU database.
2. Verify input type DIP switch settings. The DSDX451L uses onboard DIP switches (SW1–SW4 depending on revision) to select input type per channel group (TC type, RTD 2/3/4-wire, mV range). Match the switch positions exactly from the removed card before inserting the replacement. Mismatch causes immediate measurement error.
3. Check firmware revision compatibility. The DSCS09x CPU firmware must support the DSDX451L hardware revision. Confirm the module’s PCB revision label against your system’s compatibility matrix. Revision mismatches are rare but have caused initialization failures in mixed-vintage installations.
4. Hot-swap caution. The DSCS09x architecture supports live insertion on some subrack revisions, but the DSDX451L analog front-end requires a full power cycle to complete self-calibration after insertion. Plan for a brief process interruption even if the subrack supports hot-swap mechanically.
5. Post-replacement verification. Force a manual scan cycle from the DSCS09x engineering station and verify all channel values against known process conditions or a calibrated signal source before returning the loop to automatic control.

Reliability in Harsh Conditions

The DSDX451L was designed for continuous-process industries — environments that don’t tolerate fragile electronics. The module’s mechanical construction uses a conformal-coated PCB assembly that resists condensation and airborne contaminants common in pulp and paper mills, coastal petrochemical facilities, and tropical power plants. The backplane connector uses gold-plated contacts rated for hundreds of insertion cycles without measurable contact resistance increase.

Vibration tolerance meets IEC 68-2-6 test profiles applicable to rotating machinery environments — meaning this card stays operational on the same subrack as large motor drives and compressor control panels without signal degradation. Thermal cycling performance has been validated across the full 0–55 °C operating range, with the onboard CJC maintaining accuracy through ambient swings that would destabilize external reference junction hardware.

Every unit we ship has been subjected to a functional power-on test under load, backplane communication verification, and a channel-level signal injection check. We document the test results and include them with the shipment. If a unit doesn’t pass our bench test, it doesn’t leave Xiamen.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian — one of China’s primary export hubs with direct DHL Express and FedEx International Priority access. Here’s how a typical urgent shipment moves:

• Day 0 (Order Confirmed): Unit pulled from stock, bench-tested, and documentation pack assembled. Export classification confirmed (HS code pre-cleared for industrial automation modules).
• Day 1 (Dispatch): Packed in anti-static foam with rigid outer carton. DHL or FedEx airway bill generated. Tracking number sent to buyer within 2 hours of pickup.
• Day 2–4 (Transit): DHL Express typically delivers to Europe in 2–3 business days from Xiamen; North America 3–4 days; Middle East and Southeast Asia 2–3 days. FedEx International Priority timelines are comparable.
• Customs: Commercial invoice, packing list, and certificate of origin provided in the shipment documentation. We pre-declare accurately to avoid customs holds. Buyers in the EU, US, and GCC have cleared our shipments without delays in the vast majority of cases.
• Delivery Confirmation: Proof of delivery sent automatically via carrier notification. We follow up proactively if tracking shows any exception.

For genuinely critical shutdowns, contact us via WhatsApp before placing the order — we can confirm stock, arrange same-day dispatch, and coordinate with your freight forwarder if you have a preferred carrier account.
