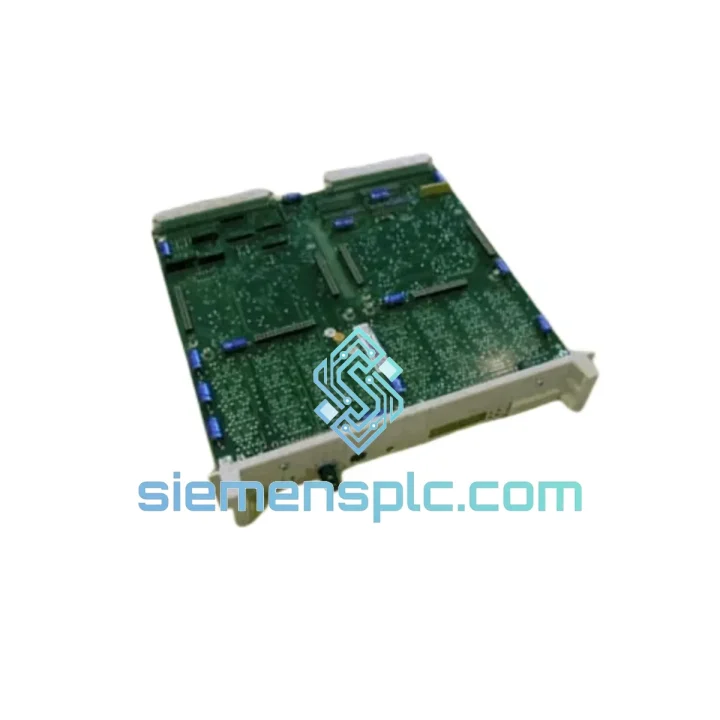

ABB DSPC174 3BSE005461R1 DCS Processor Module – AC800M Series

ABB DSPC174 3BSE005461R1 — Processor Board for AC800M Distributed Control Architecture

The ABB DSPC174, catalogued under reference number 3BSE005461R1, is a processor board designed for deployment within ABB’s AC800M controller family and the broader Advant Controller series. This module occupies the central processing role in a distributed control system (DCS) node, executing the real-time scan cycle, managing inter-module communication over the internal backplane bus, and maintaining deterministic I/O response across all connected field devices. Its architecture reflects ABB’s design philosophy for process-critical environments: predictable cycle execution, hardware-level fault isolation, and transparent diagnostic reporting without dependency on host software.

In a typical AC800M rack configuration, the DSPC174 interfaces directly with the S800 I/O family through the ModuleBus protocol, a time-division multiplexed serial bus that guarantees fixed-latency data exchange between the CPU and distributed I/O stations. The board’s onboard firmware manages bus arbitration, ensuring that no single I/O module can monopolize bus bandwidth during high-load scan cycles. This deterministic arbitration mechanism is fundamental to maintaining loop integrity in fast-response applications such as turbine governor control, compressor surge protection, and reactor temperature regulation.

The processor’s memory architecture separates program execution space from data table storage at the hardware level, reducing the risk of stack overflow events corrupting live process data. Watchdog timer circuits operate independently of the main CPU clock domain; if the primary execution thread fails to reset the watchdog within the configured timeout window, the board asserts a hardware fault signal to the rack controller, triggering a controlled shutdown sequence rather than an undefined failure state. This fail-safe behavior is a non-negotiable requirement in SIL-rated process loops.

From a thermal management perspective, the DSPC174 is rated for continuous operation across an ambient temperature range of 0 °C to +55 °C, with storage tolerance extending to −40 °C / +70 °C. The PCB substrate uses a multi-layer construction with internal ground planes that serve dual functions: heat spreading from high-dissipation components and electromagnetic shielding against conducted interference on the backplane power rails. Conformal coating on the board surface provides additional protection against condensation and airborne particulates in industrial enclosures that do not maintain positive-pressure clean-air environments.

Communication capability on the DSPC174 supports integration with ABB’s CI854 PROFIBUS DP master interface and CI857 Industrial Ethernet modules, enabling the processor to participate in multi-vendor fieldbus topologies without requiring gateway hardware. The board’s firmware supports online parameter modification — process variable setpoints and control algorithm coefficients can be updated during live operation without interrupting the scan cycle, a capability that eliminates planned downtime for routine tuning adjustments in continuous-process plants.

siemensplc.com supplies this module as genuine ABB OEM hardware, sourced through verified industrial distribution channels. Each unit is inspected prior to dispatch, and a 12-month warranty is provided as standard. Our technical team in Xiamen, China, provides pre-sales compatibility verification and post-sales commissioning support for qualified industrial buyers globally.

📧 Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The DSPC174’s EMC design addresses two distinct interference pathways: conducted noise on the 24 VDC backplane supply rail and radiated emissions from adjacent high-frequency switching modules in the same rack. The internal ground plane layers in the PCB stack-up create a Faraday-cage effect around signal traces, attenuating capacitively coupled interference before it reaches the processor’s analog reference circuits. Ferrite bead filters on the power input pins suppress high-frequency conducted noise in the 1 MHz–100 MHz band, which is the primary emission range of modern SMPS-based I/O modules.

The board’s memory subsystem uses error-correcting code (ECC) logic on the data bus, detecting and correcting single-bit errors in real time without halting the scan cycle. Multi-bit errors trigger a controlled fault assertion rather than silent data corruption — a design choice that prioritizes process safety over availability in edge-case fault scenarios. The separation of program memory from data table memory at the hardware address decoder level means that a runaway pointer in the application program cannot overwrite live process variable tables, a protection mechanism absent in many lower-cost PLC architectures.

Redundancy arbitration on the DSPC174 is managed through a dedicated hardware handshake circuit that operates independently of the application firmware. In a redundant CPU configuration, the primary and standby boards exchange heartbeat signals at a fixed interval; if the primary board fails to assert its heartbeat within two consecutive intervals, the standby board assumes control within one scan cycle without requiring intervention from the supervisory SCADA layer. This bumpless transfer mechanism preserves the integrity of PID integrator states and output ramp positions across the switchover event.

System Integration Benefits

• Deterministic scan cycle execution: ModuleBus arbitration guarantees fixed-latency I/O updates, eliminating jitter-induced control loop instability in fast-response applications.
• Hardware-level fault isolation: Watchdog timer and ECC memory operate independently of application firmware, ensuring fault detection even during software exceptions.
• Bumpless redundancy switchover: Dedicated arbitration hardware preserves PID integrator and output states across primary-to-standby transitions within one scan cycle.
• Online parameter modification: Control coefficients and setpoints can be updated during live operation without scan cycle interruption, eliminating tuning-related planned downtime.
• Multi-vendor fieldbus compatibility: Native support for PROFIBUS DP and Industrial Ethernet via CI854/CI857 interface modules removes the need for protocol gateway hardware.
• Transparent diagnostic reporting: Hardware fault codes are written to the rack controller’s diagnostic buffer in real time, enabling condition-based maintenance without polling overhead.
• EMC-hardened PCB architecture: Internal ground planes and ferrite bead filtering suppress both radiated and conducted interference, maintaining signal integrity in high-noise industrial enclosures.
• Conformal coating protection: IPC-CC-830 class coating extends operational reliability in environments with elevated humidity, condensation risk, or airborne particulate contamination.
• Memory architecture safety: Hardware-enforced separation of program and data memory prevents application-layer pointer errors from corrupting live process variable tables.
• Broad I/O family compatibility: Direct ModuleBus integration with the full S800 I/O range (AI810, AO810, DI810, DO810 and derivatives) without additional interface hardware.

Quality Assurance & Global Logistics

Every DSPC174 3BSE005461R1 unit dispatched by siemensplc.com is genuine ABB OEM hardware. Units are sourced through verified industrial distribution channels and inspected upon receipt for physical integrity, original manufacturer markings, and firmware label authenticity. No hardware modifications, re-labelling, or firmware alterations are performed. A 12-month warranty covering manufacturing defects and functional failure under normal operating conditions is provided as standard with every shipment.

Our logistics operations are based in Xiamen, China — a major export hub with direct access to international express freight networks. Standard dispatch is via DHL Express or FedEx International Priority, with typical transit times of 3–7 business days to Europe, North America, Southeast Asia, and the Middle East. For bulk project orders, sea freight consolidation with DDP (Delivered Duty Paid) terms is available on request. All shipments include a commercial invoice, packing list, certificate of origin, and inspection report. ESD-safe anti-static packaging with moisture barrier bags and desiccant is used as standard for all electronic module shipments.

Export documentation for customs clearance is prepared in accordance with HS Code 8537.10 (boards, panels, consoles for electric control) classification. Our team can provide additional documentation for EU CE declaration of conformity and RoHS compliance on request.
