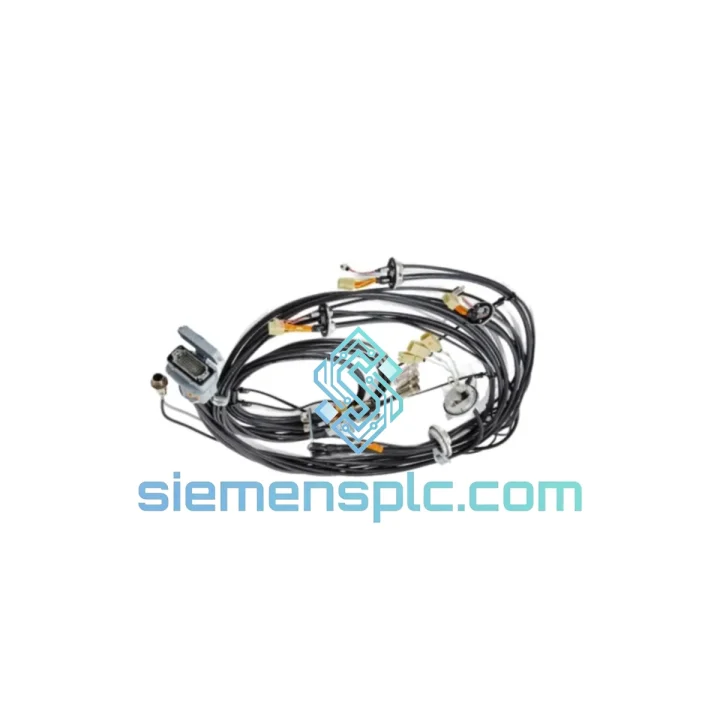

ABB DSQC1024 Robot Floor Power Harness

ABB DSQC1024 IRC5 Floor Power Harness 22m — Stop the Clock on Your Production Loss

Every minute a robot arm sits dead on the floor, your line is bleeding money. In high-cycle automotive welding cells and heavy-duty palletizing systems, an unplanned stop caused by a failed floor power harness can cost upward of $5,000 per hour in lost throughput, overtime labor, and contractual penalties. The ABB DSQC1024 (OEM cross-references: 3HAC058366-001 / 2N2402 / 3HEA800736-003) is the factory-designated 22-meter floor-routed power harness for ABB IRC5 controller systems — and we stock it ready to ship from Xiamen today.

This is not a compatibility question. This is a recovery operation. If your IRC5 cabinet is throwing power fault alarms, your robot arm is losing torque mid-cycle, or your maintenance team has already traced the fault to the floor harness, you need the exact OEM assembly — not a workaround. The DSQC1024 is the only part that restores full power integrity to your ABB robot without triggering secondary faults from impedance mismatches or connector incompatibilities.

We maintain physical stock of this harness specifically because ABB’s own distribution channels routinely quote 4–8 week lead times on cable assemblies. When your line is down, that timeline is not acceptable. Our Xiamen warehouse operates on a same-day pick-and-pack model for in-stock items, with DHL Express and FedEx International Priority departures six days a week. Most destinations in Southeast Asia receive delivery within 48–72 hours. Europe and North America within 3–5 business days.

⚡ URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After a decade of field calls, the DSQC1024 harness fails in predictable ways. Knowing the failure signature before you pull the cabinet saves you 30–60 minutes of diagnostic time on the floor.

Common Fault Signatures Pointing to This Harness:

• Error 38301 / 38302 (Motor Power Off): The IRC5 controller drops motor power unexpectedly mid-cycle. If the safety chain checks out clean and the drive unit shows no internal fault, the floor harness is the next suspect — particularly the power conductors at the robot-base connector, which experience the highest mechanical stress from repeated cable flex.
• Intermittent Axis Torque Loss: One or more axes lose torque under load but recover at rest. This is a classic symptom of a partially broken conductor inside the harness jacket — the cable passes continuity tests at zero load but drops voltage under current draw. Standard multimeter checks will miss this. Use a clamp meter under simulated load or swap the harness directly.
• Error 50024 (Drive Unit Fault) with No Drive Hardware Fault: If the drive unit itself tests clean, the fault is upstream. Check the harness connector at the IRC5 cabinet first — corrosion or a loose crimp on the power pins will generate this error code without any drive-side hardware failure.
• Visible Jacket Damage Near Robot Base: The 22m floor harness runs along the cell floor and is vulnerable to forklift traffic, coolant exposure, and weld spatter. Any visible jacket breach is a replacement trigger — do not tape and continue. Insulation breakdown under load is a fire and safety risk.

Replacement Procedure — Key Configuration Points:

• Power Down Sequence: Follow ABB’s lockout/tagout procedure. Discharge the drive unit capacitors fully before disconnecting the harness — minimum 5 minutes after main power off. The IRC5 drive section holds residual voltage that can cause arc damage to the new harness connector on reconnection.
• Connector Orientation: The robot-base connector on the DSQC1024 is keyed and cannot be inserted incorrectly, but verify the locking collar is fully seated and the retention clip is engaged. A partially seated connector is the most common cause of repeat faults after harness replacement.
• No Firmware or Parameter Changes Required: The DSQC1024 is a passive cable assembly. No axis calibration, no parameter backup/restore, and no firmware update is needed after replacement. The robot resumes normal operation immediately after power-on.
• Cable Routing: Re-route the new harness through the original conduit or cable tray. Avoid sharp bends below the minimum bend radius (typically 10× cable OD for this assembly). Secure with the original cable clamps at the robot base — do not use zip ties as the primary retention method on a 22m floor run.
• Post-Replacement Verification: Run the robot through a full-speed dry cycle for 10 minutes before resuming production. Monitor the IRC5 event log for any recurrence of 38301/38302 or 50024 codes. If faults recur, the issue is in the drive unit or controller — not the harness.

Reliability in Harsh Conditions

The DSQC1024 is not a general-purpose cable assembly. ABB engineered it specifically for the thermal cycling, mechanical stress, and chemical exposure profile of a 24/7 industrial robot cell. The outer jacket compound resists cutting oils, hydraulic fluid, and mild weld spatter contact without cracking or swelling. The conductor insulation maintains dielectric integrity across the operating temperature range of -20°C to +70°C — covering everything from cold-start conditions in unheated warehouses to the ambient heat of a high-density welding cell.

Vibration resistance is built into the connector design. The robot-base connector uses a multi-point locking mechanism that maintains contact integrity even in high-vibration environments such as press-tending and forging applications, where floor-transmitted vibration is continuous and high-amplitude. ABB’s internal qualification testing for this harness includes 500-hour vibration endurance at 5–50 Hz, 2G acceleration — the same profile used for automotive supplier qualification.

Moisture ingress is addressed through the IP-rated connector housings at both termination points. The harness is rated for use in environments with condensing humidity and intermittent water splash — standard in food processing and washdown-capable manufacturing cells. For fully submerged or high-pressure washdown environments, additional conduit protection is recommended and available on request.

Global Express Logistics

Our Xiamen warehouse is positioned 12 kilometers from Xiamen Gaoqi International Airport, one of China’s primary cargo hubs with direct freight connections to Frankfurt, Amsterdam, Chicago O’Hare, Dubai, and Singapore. This geography is not accidental — it is the operational backbone of our 24-hour dispatch commitment.

For urgent orders confirmed before 14:00 CST, same-day handover to DHL Express or FedEx International Priority is standard. Both carriers operate daily freighter departures from Xiamen, with no transhipment through Shanghai or Shenzhen required. This eliminates the 24–48 hour inland transit delay that affects suppliers based in inland Chinese cities.

Typical transit times from our Xiamen warehouse: Southeast Asia (Vietnam, Thailand, Malaysia, Indonesia) 1–2 business days; South Korea and Japan 1–2 business days; Middle East (UAE, Saudi Arabia) 2–3 business days; Europe (Germany, Netherlands, UK, Poland) 3–4 business days; North America (USA, Canada, Mexico) 4–5 business days; Australia and New Zealand 3–4 business days.

Every shipment includes a commercial invoice, packing list, and certificate of origin prepared to the destination country’s customs requirements. For EU imports, we provide the necessary documentation for EORI-based customs clearance. For US imports, we prepare the CBP entry documentation package. Xiamen Customs has a well-established track record with industrial automation component exports — HS code classification and valuation are handled accurately to avoid customs holds that would defeat the purpose of express shipping.

Tracking numbers are issued within 2 hours of carrier pickup and shared directly via email and WhatsApp. For critical shipments, our logistics team monitors the consignment through to delivery confirmation and proactively contacts the carrier if any delay is flagged in the tracking system.
