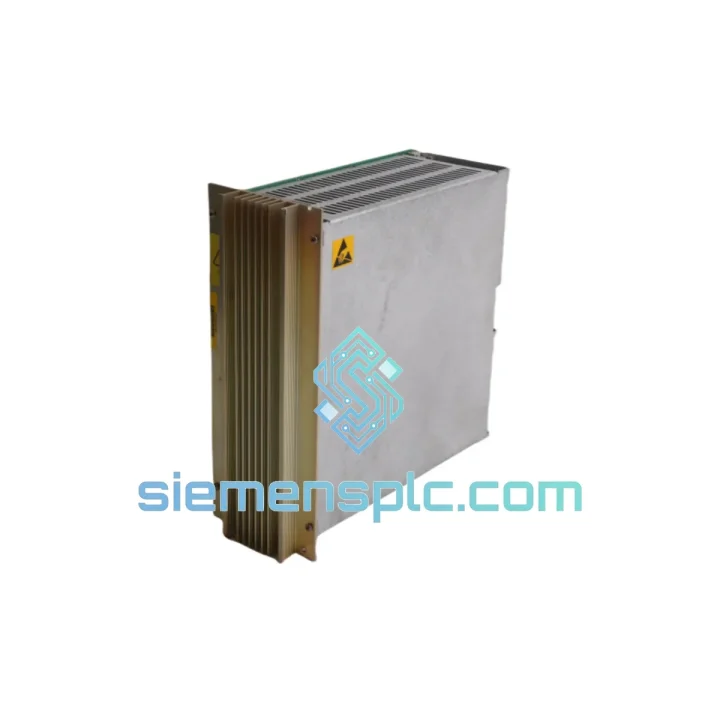

ABB DSQC258 Power Supply Module

ABB DSQC258 Power Supply Module: Stop the Clock on Your Downtime

Every minute your robot controller sits dead on the floor, you’re bleeding money. A failed power supply in an ABB S3 or S4 controller doesn’t just halt one machine — it can cascade into a full line stoppage. The ABB DSQC258 is the exact module that keeps your servo drives, I/O cards, and communication backplane alive. We stock it. We ship it today. From Xiamen to your dock in 48–72 hours via DHL Express or FedEx Priority.

This isn’t a catalog listing. This is a field-ready replacement sourced, inspected, and staged for emergency dispatch. If your production line is down right now, skip to the contact block below.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The DSQC258 fails in predictable ways. Here’s what ten years of field calls have taught us:

Symptom 1 – Controller powers on but all axes fault immediately (Error 38xxx series): The ±15 VDC rails are sagging under load. Measure at the backplane connector with a calibrated DMM before condemning the drive cards. If rails are more than 5% out of spec, the DSQC258 is your culprit.

Symptom 2 – Intermittent E-stop lockouts with no upstream cause: Electrolytic capacitors on the +5 VDC rail age out after 8–12 years of 24/7 duty. The voltage ripple trips the controller’s internal watchdog. A scope on TP3 (5V test point) will show it clearly. Replace the module — recapping in the field is not worth the risk on a production asset.

Symptom 3 – Controller dead, no LED activity, fuses intact: Check the inrush protection thermistor (NTC) on the AC input stage. Cold-start failures after a power cut are a classic DSQC258 failure mode. Swap the module before chasing wiring.

Replacement procedure (condensed field steps):

1. Isolate and lock out the controller cabinet. Confirm zero energy with a voltage tester on the AC input terminals.
2. Wait 90 seconds for the DC bus capacitors to discharge before touching any internal connectors.
3. Document the existing DIP switch positions on the DSQC258 with your phone camera before removal. The address switches must be replicated exactly on the replacement unit — the S4 controller does not auto-detect power supply configuration.
4. Disconnect the AC input harness, the DC output ribbon, and the backplane edge connector in that order.
5. Slide the module out of the card cage. Note the guide rail orientation — the replacement must seat fully or the backplane connector will not make contact.
6. Set DIP switches on the new DSQC258 to match your photo. Verify input voltage selector (115 V vs. 230 V) matches your site supply before energizing.
7. Reconnect in reverse order. Power on and monitor the LED status indicators: steady green on PWR and +5V rails within 3 seconds is normal. Any red or flashing amber requires immediate shutdown and re-inspection.
8. Run a controlled axis jog at low speed before returning to production. Log the swap in your maintenance record with the new module’s serial number.

Firmware note: The DSQC258 carries no firmware of its own — it is a pure analog/linear supply. No firmware flashing or parameter download is required after replacement. The controller’s software configuration is unaffected.

Reliability in Harsh Conditions

ABB designed the DSQC258 for the worst environments automotive and heavy industry can produce. The module’s thermal design handles sustained ambient temperatures up to 55°C without derating — critical in poorly ventilated cabinet enclosures during summer production peaks. The input stage is built around a toroidal transformer with copper windings, not a switching topology, which makes it inherently immune to the high-frequency conducted noise generated by adjacent servo drives and VFDs.

Vibration resistance meets IEC 60068-2-6 test profiles, covering the 5–150 Hz sweep range typical of press-shop and stamping-line installations where floor vibration is constant. The card-edge backplane connector uses gold-plated contacts rated for 500+ insertion cycles — relevant when the module is pulled for periodic inspection or moved between controllers during maintenance windows.

Humidity performance is rated to 95% RH non-condensing. In foundry and die-casting environments where steam and coolant mist are unavoidable, the conformal coating on the PCB provides a meaningful barrier against surface leakage currents that would otherwise cause erratic output behavior. Units supplied from our Xiamen warehouse are stored in climate-controlled conditions and individually bagged with desiccant to preserve this coating integrity during transit.

Global Express Logistics

Our dispatch process is built around one assumption: your line is down and every hour costs real money. Here’s exactly how we move parts from our Xiamen warehouse to your facility:

Day 0 (Order confirmed before 14:00 CST): Module pulled from shelf, inspected, photographed, and packed in anti-static foam with a printed packing list. DHL Express or FedEx Priority waybill generated. Tracking number sent to your email within 2 hours of dispatch.

Day 1–2 (Transit): Direct flight routing from Xiamen Gaoqi International Airport (XMN) to major hubs — Frankfurt (FRA), Chicago O’Hare (ORD), Dubai (DXB), Singapore (SIN), or Sydney (SYD) depending on destination. No consolidation, no LCL delays.

Day 2–3 (Delivery): Last-mile delivery to your facility. For EU destinations, we handle customs clearance documentation including commercial invoice, packing list, and HS code declaration (HS 8537.10) to prevent customs holds. For US imports, we provide ACE-compliant documentation. Emergency customs brokerage support available on request.

We ship to over 80 countries. If your destination has specific import restrictions on industrial electronics, contact us before ordering — we’ve navigated most of them before.
