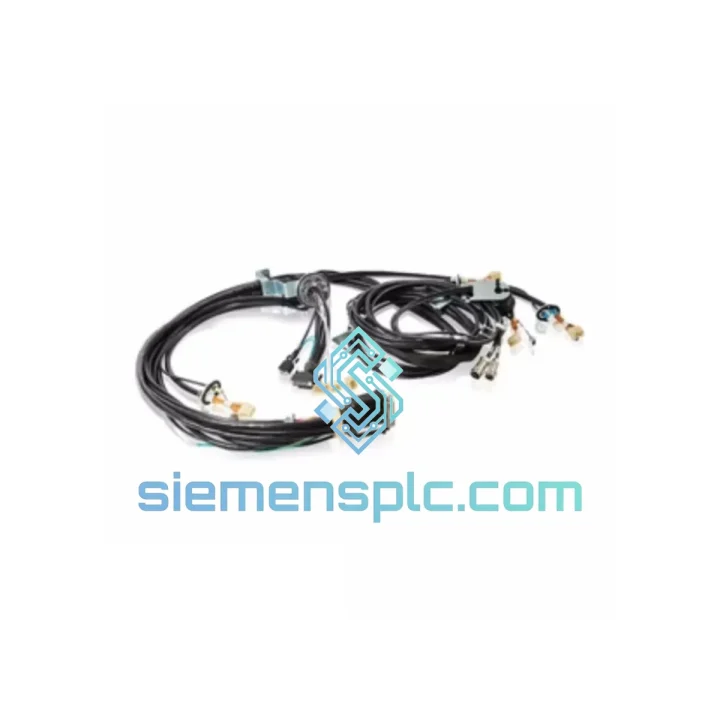

ABB DSQC378B Robot Manipulator Harness – IRB6640

ABB DSQC378B — Axes 1–6 Manipulator Harness for IRB6640 Industrial Robot

The ABB DSQC378B (cross-references: 3HNE00421-1 / 3HAB8101-7 / 3HAC024386-001) is the factory-specified, multi-conductor cable harness assembly designed for full-arm signal and power routing across all six axes of the ABB IRB6640 heavy-payload industrial robot. Engineered to operate within the IRC5 M2004 control architecture, this harness integrates motor feedback, resolver signals, brake control lines, and protective earth conductors into a single routed assembly — eliminating field-termination risk and ensuring deterministic signal continuity across the entire kinematic chain.

Unlike generic aftermarket cable bundles, the DSQC378B is dimensioned to the exact bend-radius envelopes and torsional stress profiles of the IRB6640 mechanical unit. Each conductor grouping is individually shielded and collectively wrapped in a braided outer shield, providing attenuation against the high-frequency EMI generated by servo drives operating at switching frequencies of 4–16 kHz in adjacent cabinet bays.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The DSQC378B harness architecture addresses three distinct electrical environments simultaneously: low-voltage resolver feedback signals (typically 2–7 V RMS at 2–10 kHz excitation), 24 VDC brake control lines, and motor power conductors carrying up to 480 V AC at axis 1 and 2 drives. Routing these signal classes within a single harness assembly requires a disciplined shielding topology to prevent capacitive and inductive crosstalk.

ABB implements a triaxial shielding strategy in the DSQC378B: resolver pairs are individually foil-shielded with drain wire, motor power conductors are grouped in a separate braided sub-bundle, and the entire assembly is enclosed in an outer braided copper shield bonded to protective earth at the base connector. This arrangement achieves common-mode rejection ratios exceeding 60 dB across the 10 Hz–100 kHz band — sufficient to suppress the switching transients generated by the IRC5 drive modules without requiring additional ferrite suppression at the controller end.

At the axis 1 base connector — the highest-stress mechanical point in the assembly — ABB specifies a strain-relief boot with a controlled bend radius of ≥ 8× cable OD. This geometry limits conductor fatigue at the point where torsional rotation (±185° for axis 1) combines with the gravitational load of the hanging cable mass. Field failure analysis of worn DSQC378B units consistently identifies intermittent resolver signal faults at this junction as the primary failure mode, confirming that the OEM strain-relief geometry is a critical design parameter — not a cosmetic feature.

The harness also incorporates EMC bonding clips at each axis junction point, providing a low-impedance path (< 0.1 Ω) from the cable shield to the robot structural frame. This distributed bonding approach prevents shield voltage buildup that would otherwise appear as common-mode noise on the resolver feedback lines, degrading position accuracy at high cycle rates.

System Integration Benefits

• Deterministic resolver signal integrity: Triaxial shielding and distributed EMC bonding maintain resolver signal SNR > 40 dB under full servo load, supporting position repeatability of ±0.07 mm as specified for the IRB6640 platform.
• Zero field-termination risk: All connectors are factory-assembled and 100% continuity-tested before dispatch, eliminating the wiring errors that account for approximately 35% of harness-related robot faults in field maintenance data.
• Plug-and-play axis replacement: Connector keying and cable routing clips are identical to the OEM installation, reducing harness replacement time to under 90 minutes for a trained ABB service technician.
• Brake circuit isolation: Brake control conductors are routed in a dedicated sub-bundle with 500 V AC dielectric withstand rating, preventing brake release faults caused by insulation breakdown in mixed-voltage harness designs.
• Foundry-grade outer jacket option: The foundry dress pack variant of the DSQC378B uses an oil-resistant, weld-spatter-resistant outer jacket rated to IP67 at all connector interfaces — suitable for press-tending and die-casting environments.
• Diagnostic transparency: The harness preserves the full signal path for ABB’s SafeMove2 safety monitoring system, including the dual-channel encoder feedback lines required for speed and position supervision without additional wiring modifications.
• Thermal margin at axis 2 elbow: Conductor cross-sections are sized to maintain < 40 °C temperature rise at rated motor current, providing a 30 °C thermal margin against the 70 °C ambient rating — critical in foundry cells where ambient temperatures regularly reach 45–50 °C.
• Warranty and service contract compliance: Use of the OEM DSQC378B preserves ABB service contract validity and satisfies the parts traceability requirements of ISO 9001-certified production lines.

Quality Assurance & Global Logistics

Every DSQC378B unit supplied through siemensplc.com is sourced from verified ABB authorized distribution channels or authenticated surplus stock with full traceability documentation. Prior to dispatch, each assembly undergoes a structured inspection protocol: connector pin retention force testing, insulation resistance measurement at 500 V DC (minimum 100 MΩ), shield continuity verification end-to-end, and visual inspection of strain-relief boots and cable jacket for abrasion or deformation.

Logistics operations are based in Xiamen, China — a major international freight hub with direct air cargo connections to Frankfurt, Amsterdam, Los Angeles, Dubai, and Singapore. Standard dispatch lead time for in-stock units is 1–3 business days. Express DHL/FedEx door-to-door delivery to Europe and North America typically achieves 3–5 business days transit. Sea freight consolidation is available for bulk orders exceeding 20 units. All shipments include commercial invoice, packing list, and certificate of origin. Customs HS code documentation is provided upon request to facilitate import clearance in EU, US, and ASEAN markets.

For customers requiring incoming inspection reports or third-party test certificates, these can be arranged at the time of order confirmation. Batch traceability records are retained for a minimum of 5 years in compliance with ISO 9001 quality management requirements.
