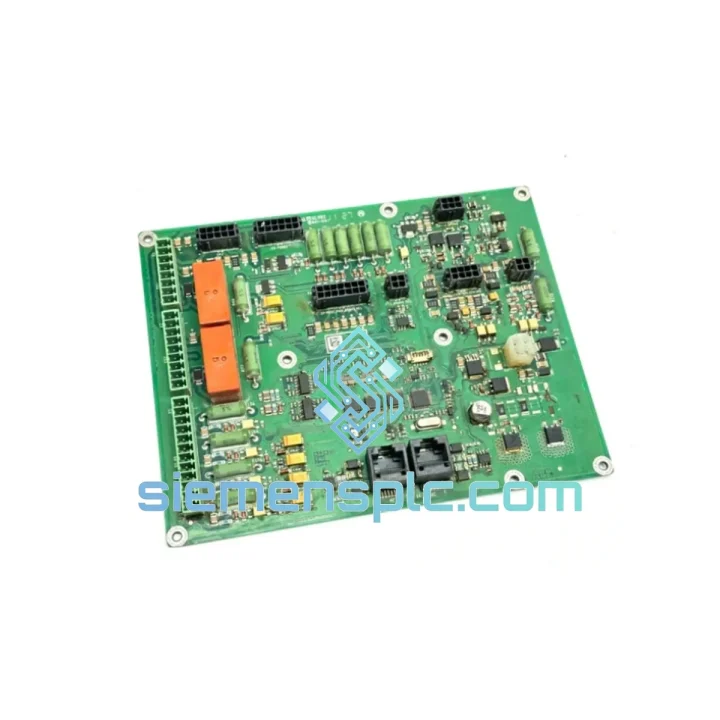

ABB DSQC400 3HAC021455-001 Robot Control Board

ABB DSQC400 3HAC021455-001 — Stop the Clock on Your IRB1600/IRB2600 Downtime

Every minute an IRB1600 or IRB2600 sits idle costs real money — whether that’s a stalled automotive weld line, a frozen palletizer, or a pick-and-place cell that’s holding up an entire shift. The ABB DSQC400 (primary P/N: 3HAC021455-001, cross-ref: 3HAC030006-001 / 3HAC030162-001) is the I/O distribution board at the heart of the IRC5 controller cabinet. When it fails, nothing moves. We stock it in Xiamen and ship the same business day — because waiting two weeks for a factory order is not an option on a live production floor.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After handling dozens of DSQC400 failures across automotive and electronics plants, here are the failure patterns and swap procedures that actually matter on the floor:

Common Failure Signatures

• Error 20223 / 20224 (I/O board communication lost): The IRC5 FlexPendant throws this when the DSQC400 stops responding on the internal bus. First, reseat the board connectors — vibration loosens them over time. If the error persists after a cold restart, the board is the culprit.
• Error 38203 (Power fail on I/O unit): Indicates the 24 VDC rail feeding the DSQC400 has dropped. Check the DSQC609 power supply output first. If the supply is healthy and the error remains, the DSQC400’s onboard regulator has failed.
• Intermittent digital outputs: Random output toggling or outputs that won’t latch are classic signs of a degraded DSQC400, especially in high-humidity environments where PCB corrosion attacks the solder joints on the output driver ICs.
• Controller boots but robot won’t accept motion commands: If the IRC5 initializes but the robot stays in motor-off state with no obvious error, check the DSQC400’s status LED. A solid red or no LED at all points to a board-level fault before you chase anything else.

Step-by-Step Replacement Procedure

1. Safety first: Set the IRC5 main switch to OFF and lock out/tag out. Confirm zero energy with a multimeter on the 24 VDC bus before touching any board.
2. Document the wiring: Photograph all connector positions on the DSQC400 before disconnecting. The X1–X6 connectors are keyed but the cable routing matters for reassembly.
3. No DIP switches on DSQC400: Unlike some older DSQC boards, the DSQC400 does not use DIP switches for node addressing. The IRC5 system assigns I/O addresses automatically via RobotWare configuration — no manual address setting required.
4. Firmware matching: The DSQC400 carries embedded firmware that is tied to the RobotWare version running on the main computer (DSQC639/DSQC1000). If you are running RobotWare 5.x, confirm the replacement board’s firmware revision matches. Mismatched firmware can cause Error 20010 (configuration mismatch) on first boot. Use RobotStudio or the FlexPendant’s system info screen to verify.
5. Reconnect and power up: Reconnect all cables, restore power, and observe the DSQC400 status LED. Green steady = healthy. If the IRC5 throws a configuration error, run a warm start (restart with current settings) — the system will re-enumerate the I/O board automatically.
6. I/O mapping verification: After the controller is back online, navigate to the I/O configuration in RobotStudio or the FlexPendant and confirm all digital and analog signals are mapped correctly. Run a manual jog cycle before releasing the cell to production.

Pro tip from the field: Keep one DSQC400 as a cold spare on-site if you run more than two IRC5 cabinets. The board is the single most common hardware failure point in aging IRB1600/IRB2600 installations, and sourcing lead times from official channels can stretch to 4–6 weeks. A shelf spare pays for itself the first time it cuts a 3-day outage down to 3 hours.

Reliability in Harsh Conditions

The DSQC400 was engineered for the realities of industrial automation — not a climate-controlled server room. The PCB substrate meets IPC Class 2 standards with conformal coating options on production variants, providing baseline resistance to condensation and airborne contaminants common in foundry and food-processing environments. The board’s operating temperature ceiling of +55 °C gives adequate headroom inside IRC5 cabinets where internal temperatures can spike during peak duty cycles in summer.

That said, real-world longevity depends heavily on installation quality. Cabinets with compromised door seals allow particulate ingress that accelerates connector oxidation — the number-one cause of intermittent I/O faults on otherwise healthy DSQC400 boards. Before condemning a board, clean the X-series connectors with contact cleaner and reseat firmly. In high-vibration environments (press lines, stamping cells), apply thread-lock to the board mounting screws and inspect connector retention clips every 12 months. Units that have been properly maintained in clean, sealed cabinets routinely exceed 10 years of continuous service.

Every unit we ship from Xiamen is stored in climate-controlled conditions, packed in anti-static ESD bags with foam cushioning, and inspected for connector integrity and PCB surface condition before dispatch. We do not ship boards with oxidized connectors or damaged traces — if a unit doesn’t pass visual and continuity checks, it doesn’t leave the warehouse.

Global Express Logistics

Our dispatch hub is in Xiamen, Fujian, China — one of the country’s primary export ports with direct DHL and FedEx gateway access. Here’s how a typical urgent order moves:

• Order confirmed before 14:00 CST: Same-day dispatch. The board is packed, labeled, and handed to the carrier the same afternoon.
• DHL Express Worldwide: Europe and North America in 3–5 business days. Southeast Asia in 2–3 business days. Middle East and Africa in 4–7 business days.
• FedEx International Priority: Available as an alternative for destinations where FedEx has stronger coverage or preferred customs clearance agreements.
• Documentation package included: Commercial invoice, packing list, and HS code 8537.10 declaration ship with every order. For customers in the EU, we provide the necessary data for EORI-based customs clearance. For customers in the US, we include the Schedule B number for smooth CBP processing.
• Tracking: A live tracking number is emailed within 2 hours of dispatch. For urgent shipments, our logistics team monitors the shipment and proactively contacts you if any customs hold occurs.
• Bulk orders: For orders of 3+ units, contact us before placing the order. We can consolidate shipments, negotiate freight rates, and prepare a single customs declaration to reduce your landed cost.

We have shipped DSQC400 boards to automotive plants in Germany, semiconductor fabs in Taiwan, food processing facilities in Australia, and oil & gas installations in the Middle East. The logistics process is proven and repeatable — your replacement board arrives when we say it will.
