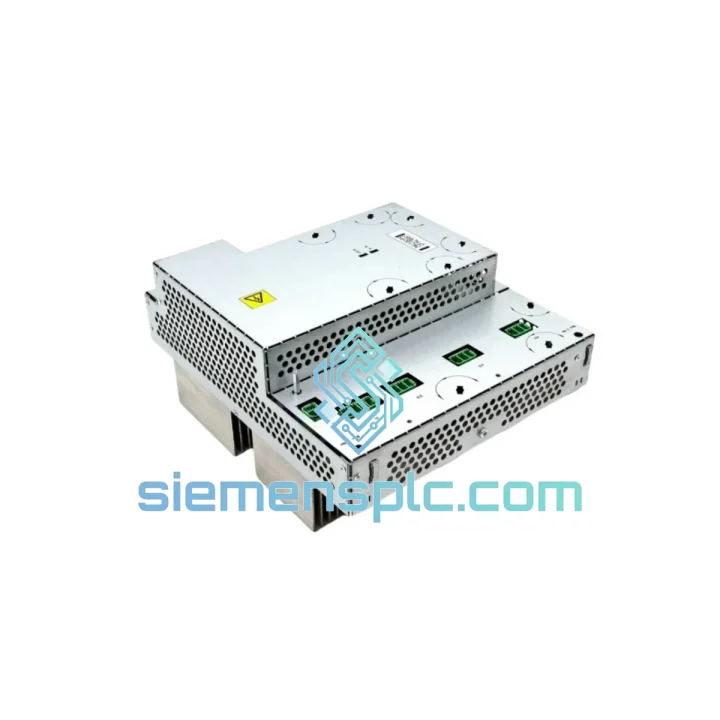

ABB DSQC406 3HAC035301-001/03 Servo Drive Unit

ABB DSQC406 3HAC035301-001/03 — Stop the Bleed: Get Your IRC5 Robot Back Online Before the Next Shift

Your IRC5 cabinet just threw an axis fault. The teach pendant is locked out. Six-axis motion is dead. Every hour that robot sits idle is costing you — in scrapped production schedules, in overtime, in customer penalties. The DSQC406 servo drive interface card is the single point of failure between your main computer and every drive unit in the cabinet. When it goes, everything stops. We stock it. We ship it today.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Common fault signatures pointing to a failed DSQC406:

• Error 20223 — “Drive unit: Internal voltage error” appearing on FlexPendant at power-on
• Error 20001 / 20002 — Axis computer communication timeout; the main computer (DSQC639) cannot handshake with the drive chain
• Error 50071 — “Motor current error” on multiple axes simultaneously (single-axis current faults usually point to the drive unit, not the DSQC406; multi-axis simultaneous faults implicate the interface card)
• Cabinet powers on, fans spin, but FlexPendant stays blank or shows “Waiting for main computer” indefinitely
• Intermittent axis position drift followed by hard E-stop — often caused by corrupted encoder feedback routing through a degraded DSQC406

Step-by-step replacement procedure (IRC5 Single Cabinet):

1. Execute a full system backup via RobotStudio or FlexPendant before any hardware work. Save to USB. This is non-negotiable — a DSQC406 swap can occasionally trigger a parameter reset on older RobotWare builds.
2. Power down the IRC5 cabinet via the main disconnect. Wait a full 5 minutes for capacitors in the drive section to discharge. Verify with a multimeter at the DC bus terminals before touching anything inside.
3. The DSQC406 is located in the upper section of the IRC5 computer unit, typically in slot position X1 or X2 depending on cabinet variant. Consult your cabinet layout drawing (document 3HAC021313-001) for exact slot assignment.
4. Disconnect the two ribbon cable connectors (X1 and X2 on the card edge) and the 24 VDC power connector. Note cable routing — photograph before removal.
5. The card is retained by two M3 screws on the front bracket. Remove, slide the card straight out along the guide rails. No lateral force — the backplane connector is fragile.
6. Inspect the backplane connector pins on the cabinet side for bent or corroded contacts before inserting the replacement. A damaged backplane will kill a new card within hours.
7. Seat the new DSQC406 firmly until the backplane connector is fully engaged. Reconnect all cables in reverse order. Torque the bracket screws to 0.5 Nm.
8. Power on. The IRC5 will perform a self-test sequence. On first boot with a new DSQC406, RobotWare 6.x may prompt for a firmware update to the card — allow it to complete before attempting motion.
9. Restore your system backup. Verify axis calibration values match pre-failure records. Run a slow-speed test cycle on all axes before returning to production speed.

Configuration notes specific to DSQC406 Rev /03:

• No DIP switches or rotary address selectors on this card — the IRC5 assigns axis computer addressing automatically via the backplane. No manual configuration required.
• Rev /03 is firmware-compatible with RobotWare 5.14 and all 6.x releases. If running RobotWare 5.12 or earlier, contact us before ordering — a firmware downgrade procedure may be required.
• If replacing a Rev /01 or /02 card with a Rev /03, the swap is electrically and mechanically identical. No parameter changes needed in most installations. Exception: welding process applications using DSQC406 in conjunction with the Weld Guide option may require a process parameter re-validation after swap.

Reliability in Harsh Conditions

The DSQC406 was not designed for a climate-controlled server room. ABB built it for the factory floor — and the IRC5 platform has proven that in some of the most punishing industrial environments on the planet.

Automotive body shops run these controllers in welding cells where ambient temperatures regularly hit 45°C, weld spatter creates constant electromagnetic interference, and the cabinet takes mechanical vibration from nearby stamping presses. The DSQC406 Rev /03 addresses this directly: the revised PCB layout includes improved ground plane isolation and additional EMC filtering on the backplane interface lines, reducing susceptibility to conducted interference from the drive section during high-current motor braking events.

In foundry applications — where IRB 7600 Foundry robots operate in 50°C+ ambient with airborne particulate — the DSQC406’s conformal-coated PCB provides a barrier against conductive dust accumulation on critical signal traces. Units that fail in these environments almost always show one of two failure modes: thermal cycling fatigue on BGA solder joints (visible as hairline cracks under magnification) or connector contact oxidation from humidity cycling. Both are addressed in Rev /03 through improved solder alloy specification and gold-plated connector contacts on the backplane interface.

Our stock units are stored in a temperature and humidity-controlled warehouse environment (20–25°C, 40–60% RH) with ESD-controlled handling throughout. Every unit ships in anti-static packaging with foam cushioning rated for the vibration profile of air freight. We have shipped DSQC406 cards to automotive plants in Mexico, steel mills in Turkey, and offshore platform facilities in Southeast Asia — the packaging holds.

Global Express Logistics

Downtime doesn’t wait for sea freight. Our Xiamen warehouse is positioned specifically for fast international air freight access — Xiamen Gaoqi International Airport (XMN) has direct cargo connections to DHL and FedEx hub networks, with daily outbound flights to Leipzig (DHL Europe hub) and Memphis (FedEx global hub).

Standard express timeline from order confirmation:

• Order confirmed before 14:00 CST → same-day dispatch
• DHL Express Worldwide: 2–4 business days to Europe, Middle East, Southeast Asia
• FedEx International Priority: 2–3 business days to North America
• DHL Express to Australia/New Zealand: 3–5 business days

All shipments include a commercial invoice, packing list, and certificate of origin. For customers in the EU, we provide HS code 8537.10 documentation for customs clearance. For customers in countries requiring import licenses for industrial automation components, our logistics team can advise on documentation requirements before shipment — contact us before placing the order if you have specific customs constraints.

Tracking numbers are issued within 2 hours of dispatch and sent directly to your contact email. We do not use consolidators or third-party freight forwarders for express shipments — your package moves directly on DHL or FedEx networks from our door to yours.

For customers in China (domestic): same-day SF Express dispatch available for orders confirmed before 15:00 CST. Delivery to major industrial cities (Shanghai, Guangzhou, Chengdu, Wuhan) typically next business day.
