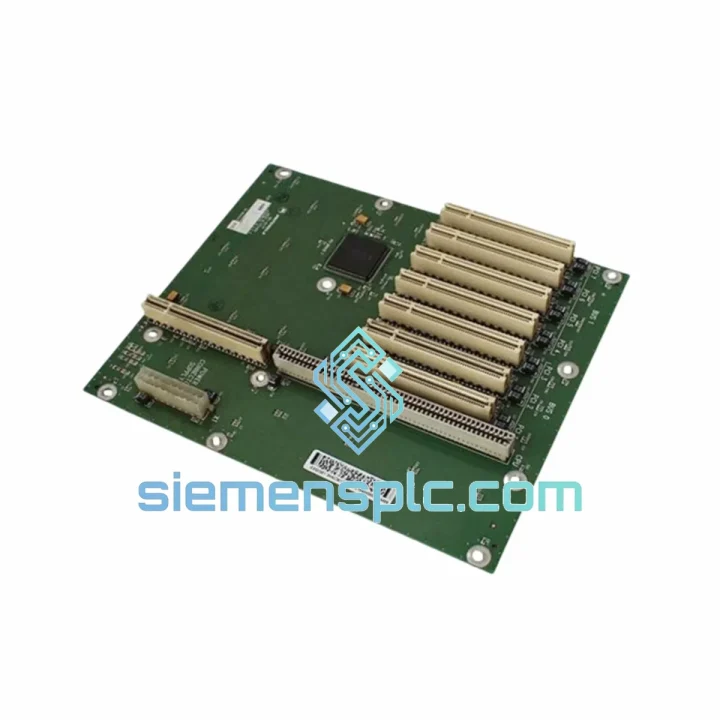

ABB DSQC501-3HAC3617-1 Backplane Board

ABB DSQC501 3HAC3617-1 — Stop the Clock on Your IRC5 Downtime

Every minute your IRC5 robot controller sits dead on the floor, your line is bleeding money. A failed backplane board — DSQC501 / 3HAC3617-1 — is one of the most disruptive single-point failures in the ABB S4C+ and IRC5 controller family. It kills communication between the MCU, drive modules, and I/O cards simultaneously, and it does it without warning. We stock this board. We ship it today. That’s the only thing that matters right now.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The DSQC501 backplane is a passive board — no firmware, no DIP switches, no address configuration required. But that simplicity is deceptive. Here’s what actually trips up engineers in the field:

Fault Symptom Pattern: IRC5 powers on but the FlexPendant shows a blank screen or “System Failure” immediately at boot. Drive modules are unresponsive. Error logs show cascading 38xxx-series system errors. This is a classic backplane failure signature — the MCU cannot enumerate any downstream modules because the bus is dead.

Before You Pull the Board: Confirm the 24 VDC rail from the controller PSU is within spec (±5%). A sagging PSU will mimic a dead backplane. Measure at the PSU output terminals, not at the board connector. If voltage is good, the backplane is the next suspect.

Replacement Procedure (condensed field steps):

1. Power down the controller via the main breaker. Wait 5 minutes for capacitors to discharge — the drive section holds charge longer than you expect.
2. Photograph all module positions and cable routing before disconnecting anything. The IRC5 cabinet is dense and reassembly errors are common under pressure.
3. Label and disconnect all module edge connectors from the backplane. They are keyed but not always obviously so — do not force.
4. Remove the four M4 mounting screws securing the backplane to the cabinet rail. The board slides out horizontally.
5. Seat the new DSQC501 and torque screws to 1.5 Nm. Reconnect all modules in original positions.
6. Power on. The IRC5 will perform a full self-test. No re-flashing, no parameter restore — the backplane carries no configuration data.
7. If the system still faults after replacement, check the MCU board (DSQC500) next. A shorted MCU can damage the backplane bus lines and take out a replacement board within minutes.

Common Misdiagnosis: Engineers frequently replace the MCU (DSQC500) first because it’s the more visible “brain” of the controller. If your DSQC500 replacement didn’t fix the fault, the backplane was the root cause all along. The DSQC501 is statistically the higher-failure component in humid or high-vibration environments due to connector oxidation on the passive bus traces.

Connector Inspection: Before installing the new board, clean all module edge connectors with isopropyl alcohol (99%) and a stiff brush. Oxidized contacts on the module side will cause intermittent faults even with a new backplane.

Reliability in Harsh Conditions

ABB designed the DSQC501 for the realities of industrial production — not a climate-controlled server room. The board’s passive architecture is its primary reliability advantage: no active components means no thermal runaway, no firmware corruption, and no clock drift. The multi-layer PCB uses heavy copper pours on the power distribution planes to handle the current demands of a fully populated controller cabinet without voltage drop across the bus.

In automotive body shops — one of the harshest environments for electronics — IRC5 controllers operate alongside resistance welding equipment that generates significant electromagnetic interference. The DSQC501’s ground plane design provides inherent shielding against conducted and radiated EMI on the internal bus. Vibration from stamping presses and conveyor systems is absorbed by the board’s rigid mounting rail system, which distributes mechanical stress away from solder joints.

High-humidity environments such as food processing and foundry applications accelerate connector oxidation. Units supplied by siemensplc.com are stored in climate-controlled conditions and shipped in sealed anti-static ESD bags with desiccant packs. Each board is visually inspected under magnification for trace corrosion, lifted pads, and connector damage before dispatch. We do not ship boards that show any sign of prior moisture ingress — a common problem with grey-market surplus stock.

Operating temperature ceiling of +55 °C is adequate for most controller cabinet environments, but if your cabinet lacks adequate ventilation, internal temperatures can exceed this threshold during summer production peaks. If you are experiencing recurring backplane failures at the same site, audit your cabinet cooling before ordering a replacement — a thermal issue will destroy the new board within weeks.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to DHL, FedEx, and UPS international gateways. For urgent replacement orders, we operate a same-day dispatch cutoff of 16:00 CST for in-stock items.

Typical transit times from Xiamen:

• Southeast Asia (Singapore, Thailand, Malaysia): 2–3 business days via DHL Express
• Europe (Germany, Poland, Italy, Spain): 3–5 business days via FedEx International Priority
• North America (USA, Canada, Mexico): 3–5 business days via DHL Express Worldwide
• Middle East (UAE, Saudi Arabia, Turkey): 3–4 business days via FedEx
• Australia / New Zealand: 3–4 business days via DHL

All shipments include a commercial invoice, packing list, and country-of-origin declaration. For customers requiring formal export documentation (EUR.1, Form A, or CO certificate), advise us at the time of order and we will coordinate with the local chamber of commerce — typical processing adds one business day. EXW Xiamen and CIF destination Incoterms are both available for B2B orders.

Packaging is engineered for the transit, not just the shelf: foam-lined double-wall carton, anti-static inner bag, and corner protectors. The DSQC501 backplane is a large, rigid PCB — it is vulnerable to flexing damage if improperly packed. We have seen competitor shipments arrive with cracked PCBs from inadequate packaging. Ours don’t.

For customers managing multi-site ABB robot fleets, we offer blanket order arrangements with scheduled releases — you lock in the price today, we hold stock, and you call off units as needed. Contact us to discuss terms.
