ABB DSQC503 3HAC3619-1 Robot Controller CPU Board – DSQC Series

ABB DSQC503 3HAC3619-1 Main Computer Board — Central Processing Architecture for IRC5 and S4C+ Robot Controllers

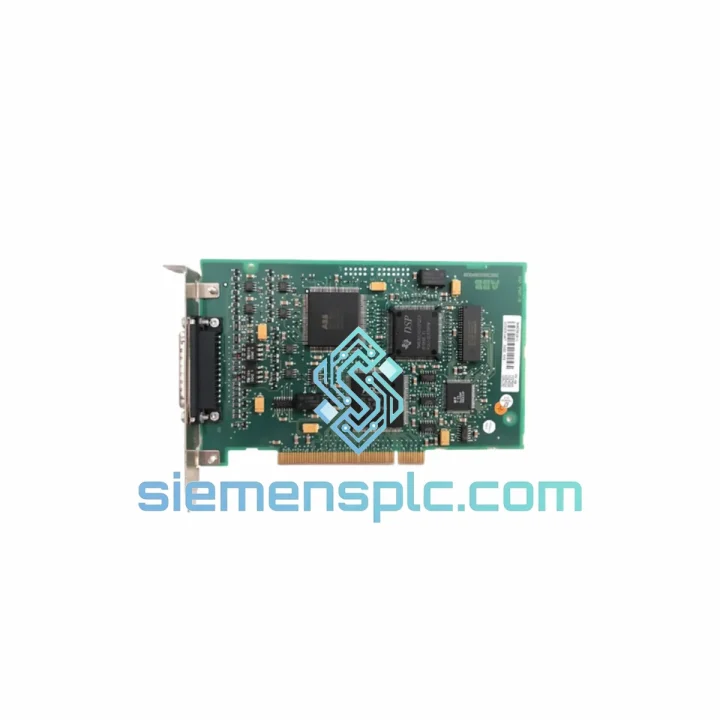

The ABB DSQC503 (OEM Part No. 3HAC3619-1) is the primary CPU board installed in ABB IRC5 and S4C+ robot controller cabinets. It functions as the computational core of the motion control system, executing real-time trajectory interpolation, axis synchronization, and inter-process communication across the controller backplane. Unlike peripheral I/O or drive boards, the DSQC503 sits at the top of the controller’s processing hierarchy — all motion commands, safety arbitration signals, and fieldbus transactions are ultimately resolved through this board’s processor and memory subsystem.

In a standard IRC5 single-cabinet configuration, the DSQC503 interfaces directly with the axis computer board (DSQC508) via a high-speed internal bus, coordinating 6-axis servo loop closure at cycle times typically below 4 ms. The board also manages the RobotWare operating system image stored in non-volatile flash, handles the FlexPendant (teach pendant) communication over an Ethernet-based protocol, and arbitrates access to the RAPID program execution engine. Failure or degradation of this board manifests as controller boot failures, axis communication faults (error codes 20xxx series), or loss of teach pendant connectivity — all of which result in complete production stoppage.

siemensplc.com maintains verified stock of the DSQC503 3HAC3619-1 sourced through authenticated industrial channels. Each unit is inspected against ABB factory reference standards before dispatch from our Xiamen, China facility.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The DSQC503 board’s design reflects the deterministic real-time requirements of industrial robot motion control. Several hardware-level design decisions are worth examining for engineers evaluating this module for maintenance or system integration purposes.

Backplane Bus Architecture: The IRC5 controller uses a VME-derived proprietary backplane that allows the DSQC503 to communicate with the axis computer (DSQC508) and I/O boards at fixed, deterministic latencies. Unlike PCI or PCIe buses where arbitration latency can vary, the ABB backplane uses a time-division multiplexed access scheme that guarantees each board a fixed communication window per servo cycle. This is a prerequisite for closing 6-axis servo loops at sub-4 ms cycle times without jitter accumulation.

EMC Design: The board employs multi-layer PCB construction with dedicated ground planes separating the digital logic domain from the backplane interface signals. Ferrite bead filtering is applied at the power entry points to suppress conducted emissions from the 24 VDC supply rail. The board’s edge connectors use gold-plated contacts to maintain low-resistance connections in environments with vibration or thermal cycling — a common failure mode in boards using tin-plated contacts over extended service life.

Flash Memory and Boot Integrity: RobotWare is stored in on-board NOR flash rather than a removable media device. This eliminates the mechanical failure risk associated with SD cards or CompactFlash used in some competing platforms. The boot sequence includes a checksum verification of the RobotWare image before execution is permitted, preventing partial-write corruption from causing silent misbehavior in the motion engine.

Watchdog and Fault Arbitration: The DSQC503 implements a hardware watchdog timer that monitors the main processor’s execution loop. If the processor fails to service the watchdog within the defined interval — due to software hang, memory fault, or hardware exception — the watchdog asserts a system halt signal that propagates to the drive system, commanding a controlled deceleration rather than an abrupt power cut. This behavior is critical in applications where an uncontrolled stop could damage tooling or workpieces.

Thermal Management: The board is rated for continuous operation at ambient temperatures up to 55 °C inside the controller cabinet. Passive heat dissipation is achieved through the board’s copper pour areas and the forced-air ventilation of the IRC5 cabinet. No active cooling components (fans, heat pipes) are mounted on the board itself, which eliminates a class of mechanical failure modes common in high-density compute modules.

System Integration Benefits

• Drop-in Replacement Compatibility: The DSQC503 3HAC3619-1 is a direct hardware replacement for failed units in IRC5 and S4C+ cabinets. No firmware re-flashing or hardware modification is required — the existing RobotWare license and system parameters are restored from the controller’s backup after board swap.
• Deterministic Motion Execution: By centralizing trajectory interpolation and axis synchronization on a single board with a fixed-latency backplane interface, the DSQC503 ensures that multi-axis coordinated motion paths are executed with consistent timing, which is essential for arc welding, dispensing, and precision assembly applications.
• Diagnostic Transparency: The board exposes fault codes through the FlexPendant interface and the ABB RobotStudio diagnostic log. Hardware faults, memory errors, and communication timeouts are reported with specific error codes (20xxx, 38xxx series) that allow maintenance engineers to isolate the fault to board level without oscilloscope-level debugging.
• RobotWare Version Compatibility: The DSQC503 supports RobotWare versions spanning the IRC5 M2004 through M2016 generations. This broad compatibility range means a single spare board can cover multiple robot generations within a mixed-vintage production line.
• Reduced Mean Time to Repair (MTTR): Because the DSQC503 is a self-contained module with no field-adjustable components, board-level replacement is the standard repair strategy. A trained technician can complete a board swap and system restore in under two hours, compared to days for component-level PCB repair.
• Safety System Integration: The board participates in the IRC5 safety chain by monitoring the emergency stop and safeguard input states. Safety-relevant signals are processed with hardware priority over normal motion commands, ensuring that safety stop commands are executed within the controller’s defined reaction time regardless of the current RAPID program state.
• Fieldbus Gateway Support: When combined with the appropriate option boards, the DSQC503 supports PROFIBUS, DeviceNet, and Ethernet/IP fieldbus protocols. The CPU board manages the fieldbus data exchange as part of its I/O scan cycle, maintaining synchronization between robot program variables and PLC register values.
• Long-term Spare Parts Availability: ABB IRC5 controllers have been deployed globally since 2004. The DSQC503 remains a high-demand spare part for the installed base of tens of thousands of IRC5 cabinets in automotive, electronics, and general manufacturing. siemensplc.com maintains stock specifically to support this long-tail maintenance demand.

Quality Assurance & Global Logistics

Every DSQC503 3HAC3619-1 unit supplied by siemensplc.com is sourced through verified industrial channels and undergoes a structured inspection process at our Xiamen, China facility before dispatch. Inspection covers PCB surface condition, connector pin integrity, label authenticity cross-referenced against ABB factory part number databases, and a functional power-on test where applicable.

Units are shipped in anti-static packaging with foam cushioning appropriate for sensitive PCB assemblies. Commercial documentation — including commercial invoice, packing list, and certificate of origin — is prepared for all international shipments. DDP (Delivered Duty Paid) terms are available for major destination countries on request.

Xiamen’s port infrastructure and established freight forwarding partnerships allow us to dispatch orders to destinations across Asia-Pacific, Europe, the Americas, and the Middle East within 1–3 business days of order confirmation. Express courier options (DHL, FedEx, UPS) are available for urgent maintenance situations where production downtime cost justifies expedited freight.

All units are covered by a 12-month warranty from the date of shipment. Warranty claims are handled directly by our technical team, with replacement dispatch prioritized to minimize customer downtime.
