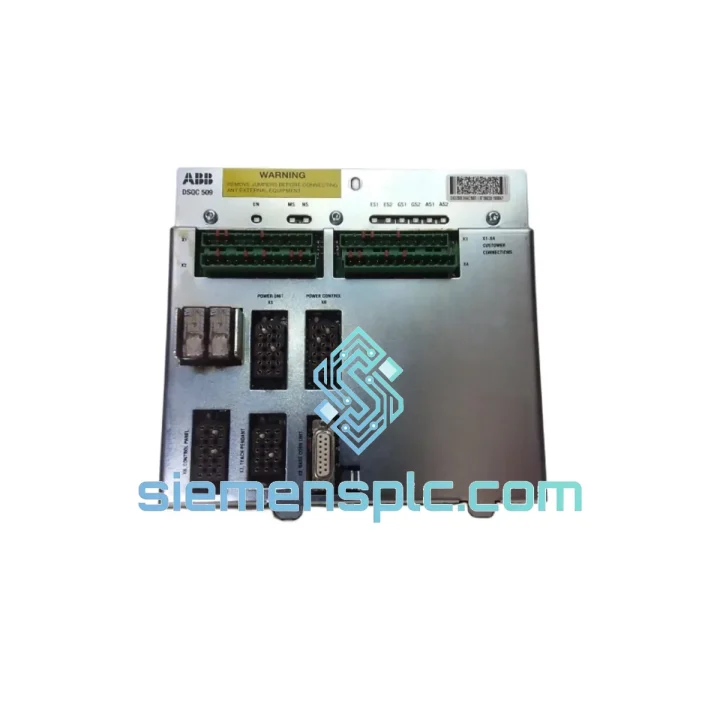

ABB DSQC509 3HAC5687-1/07 Connection Board Unit – DSQC Series

ABB DSQC509 3HAC5687-1/07 — IRC5 Controller Internal Bus Interface Architecture

The DSQC509 (ABB reference 3HAC5687-1/07) is a board-level connection unit integrated into the ABB IRC5 robot controller cabinet. Its primary function is to establish and maintain the physical and logical interface between the IRC5 main computer unit and the distributed I/O subsystem mounted on the controller backplane. Without a fully operational connection board, the IRC5 controller cannot arbitrate I/O state data across its internal communication bus, rendering the robot inoperable regardless of the condition of other subsystems.

Within the IRC5 architecture, the controller backplane operates as a passive bus structure over which multiple board-level modules exchange time-critical data. The DSQC509 sits at a defined slot position and handles signal conditioning, connector termination, and bus-level handshaking. Its role is not merely passive routing — it actively participates in the controller’s internal communication protocol, ensuring that I/O state transitions are reflected in the main computer’s process image within the controller’s deterministic scan cycle. Any degradation in the DSQC509’s connector integrity or signal path directly manifests as intermittent I/O faults, axis communication errors, or complete controller boot failure.

The /07 revision suffix in the ABB part numbering system denotes a specific engineering change level. Substituting a mismatched revision can introduce incompatibilities with the main computer firmware or the backplane connector pinout, making revision-accurate sourcing a non-negotiable requirement for maintenance engineers working on production IRC5 installations.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The DSQC509 operates within the IRC5 controller’s internal communication hierarchy, which is structured around a proprietary backplane bus connecting the main computer (DSQC510 or equivalent), axis computer boards, I/O boards, and ancillary interface modules. The connection board’s physical layer consists of multi-pin edge connectors and board-to-board interconnects that must maintain sub-milliohm contact resistance across the full thermal operating range of the controller cabinet — typically 0°C to 55°C ambient.

From an EMC standpoint, the IRC5 cabinet is designed to IEC 61000-4 series immunity levels, and the DSQC509 contributes to this compliance through its PCB ground plane topology. The board’s ground plane is segmented to isolate digital switching noise from the analog signal paths used in certain I/O configurations, reducing conducted emissions that could otherwise corrupt sensor data on adjacent I/O modules. Connector housings on the DSQC509 are mechanically keyed to prevent mis-insertion, and the board incorporates polarity protection on its power input rails to guard against incorrect installation during field replacement.

The /07 revision specifically addresses connector retention force specifications compared to earlier revisions, improving resistance to vibration-induced contact fretting — a known failure mode in robot controller cabinets installed in high-vibration environments such as press shops and stamping lines. Engineers replacing earlier DSQC509 revisions with the /07 variant in such environments will observe improved long-term contact reliability without any firmware or software changes required.

System Integration Benefits

• Deterministic I/O Scan Cycle Preservation: The DSQC509 maintains the IRC5 controller’s ability to complete its I/O scan within the configured cycle time, which is critical for motion-synchronized I/O operations such as conveyor tracking and press-line interlocking.
• Zero-Reconfiguration Replacement: As a board-level OEM component, the DSQC509 requires no parameter re-entry or software reconfiguration after installation. The IRC5 controller recognizes the board automatically on power-up, eliminating commissioning overhead.
• Fault Isolation Transparency: The IRC5 diagnostic system can isolate faults to the board level. A failed DSQC509 generates specific error codes in the controller event log, enabling maintenance teams to identify the failed component without full system teardown.
• Backplane Bus Signal Integrity: The board’s PCB trace impedance is matched to the IRC5 backplane bus specification, preventing signal reflections that could cause intermittent communication errors at high bus utilization rates.
• Revision Compatibility Assurance: The /07 designation ensures compatibility with the specific firmware revision set deployed on IRC5 controllers manufactured within the corresponding production window, avoiding cross-revision boot failures.
• Reduced MTTR in Production Environments: Board-level replacement of the DSQC509 takes significantly less time than full controller swap-out, directly reducing mean time to repair and minimizing production downtime cost per incident.
• ESD-Hardened Handling Chain: All units are handled, tested, and packaged within ESD-controlled environments, preserving the integrity of CMOS-level components on the board that are susceptible to electrostatic discharge damage during transit.
• 12-Month Warranty Coverage: Each unit dispatched from our Xiamen facility carries a 12-month functional warranty, providing procurement teams with a documented quality commitment for MRO purchasing records.

Quality Assurance & Global Logistics

Every DSQC509 unit processed through our Xiamen facility undergoes a structured inspection protocol before dispatch. Visual inspection covers PCB surface condition, connector pin integrity, solder joint quality, and component-level anomalies including burnt traces, cracked capacitors, and corroded contacts. Units that pass visual inspection proceed to functional verification using IRC5-compatible test configurations where applicable.

Packaging follows IEC 61340-5-1 ESD protection requirements: boards are placed in conductive anti-static bags, cushioned within foam-lined cartons, and sealed with moisture barrier protection for international air freight. Export documentation including commercial invoices, packing lists, and certificates of origin is prepared in compliance with Chinese customs regulations and destination country import requirements.

Dispatch from Xiamen, China is available via DHL Express, FedEx International Priority, UPS Worldwide Express, and TNT, with typical transit times of 3–7 business days to major industrial hubs in Europe, North America, Southeast Asia, and the Middle East. For urgent production-down situations, same-day dispatch is available for orders confirmed before 14:00 CST. All shipments include full tracking and are covered by cargo insurance upon request.

Our sourcing network for ABB DSQC-series components draws from decommissioned OEM production lines, authorized distributor excess stock, and certified refurbishment channels with traceable documentation. Condition grading (new, refurbished, tested-used) is clearly stated in every quotation, and test reports are available for quality-critical procurement processes requiring documented evidence of functional verification.
