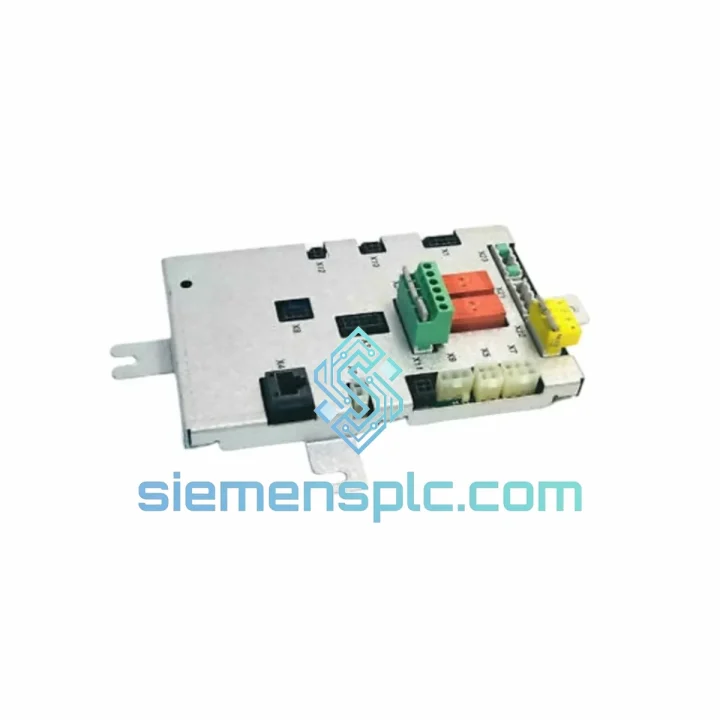

ABB DSQC611 3HAC13389-2 Contactor Unit – IRC5

ABB DSQC611 3HAC13389-2 — Main Contactor Unit for IRC5 Robot Controller Power Distribution Architecture

The ABB DSQC611, carrying the OEM part number 3HAC13389-2, is the main contactor switching module integrated into the ABB IRC5 robot controller cabinet. Its primary function is to govern the controlled energization and de-energization of the AC power bus feeding the drive system — a task that is deceptively simple in description but mechanically and electrically demanding in execution. In high-duty-cycle production environments, this module executes tens of thousands of switching cycles annually, each one subject to inrush current transients, back-EMF from motor loads, and the thermal stress of enclosed cabinet operation. Understanding its hardware architecture is prerequisite to specifying the correct replacement and maintaining system uptime.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The DSQC611 operates at the intersection of the IRC5 safety chain and the drive power bus. When the controller receives a power-on command — either from the FlexPendant or an external PLC signal via the system I/O — the main computer unit (DSQC639) asserts a 24 V DC coil signal to the DSQC611 contactor. This closes the main AC contacts, allowing three-phase power to flow to the drive modules (DSQC374 or equivalent axis computers). The sequence is not instantaneous: the IRC5 firmware enforces a pre-charge delay to limit inrush current through the DC bus capacitors in the drive units, preventing nuisance tripping of upstream circuit breakers and reducing mechanical stress on the contactor contacts themselves.

From an EMC standpoint, the DSQC611 is positioned within the IRC5 cabinet’s shielded enclosure, which provides a first layer of conducted and radiated emission suppression. The contactor coil circuit incorporates a freewheeling diode or RC snubber (depending on cabinet revision) to suppress the inductive kick generated when the coil is de-energized during E-stop or normal shutdown. This suppression is critical in automotive body-in-white environments where multiple robot controllers share a common 24 V DC supply rail — without it, coil de-energization transients would propagate onto the DC bus and potentially trigger false fault conditions in adjacent controllers.

The mechanical contact architecture uses silver-alloy contact tips rated for the full AC-3 duty category per IEC 60947-4-1, meaning the contacts are specified for switching inductive motor loads at rated current — not merely resistive loads. This distinction matters in practice: a contactor rated only for AC-1 (resistive) duty will exhibit accelerated contact erosion when switching the reactive drive loads of a six-axis robot, leading to premature failure within 12–18 months of production operation. The DSQC611’s AC-3 rating ensures contact life consistent with ABB’s IRC5 service interval recommendations.

Thermal management within the module relies on the IRC5 cabinet’s forced-air cooling system. The contactor body dissipates heat through conduction to the DIN rail and convection to the cabinet airflow. In dual-cabinet configurations where the drive cabinet operates at higher ambient temperatures, the DSQC611’s 55°C upper limit must be verified against the actual cabinet internal temperature — a measurement point often overlooked during preventive maintenance audits.

System Integration Benefits

• Zero-parameter replacement: The DSQC611 stores no robot parameters, calibration data, or axis configuration. Replacement requires only mechanical swap and wiring reconnection per ABB service documentation — no RobotStudio re-commissioning is needed, eliminating the risk of parameter corruption during maintenance.
• Deterministic power sequencing: The IRC5 firmware’s pre-charge logic, triggered by DSQC611 closure, ensures the DC bus capacitors in the drive modules reach operating voltage within a defined time window before axis enable signals are asserted. This determinism prevents torque spikes at axis startup that could disturb precision path accuracy on the first motion after power-on.
• Safety chain integration: The DSQC611 is wired into the IRC5 safety chain such that any E-stop event — from the FlexPendant, external safety PLC, or light curtain — immediately de-energizes the contactor coil, removing AC power from the drives within the contactor’s specified break time. This architecture satisfies PLd / Category 3 safety requirements per ISO 13849-1 when combined with the IRC5’s dual-channel safety monitoring.
• Diagnostic transparency: A failed or welded contactor is detected by the IRC5 main computer through auxiliary contact feedback. If the auxiliary contact state does not match the commanded coil state within the firmware’s timeout window, error codes in the 20001–20010 range are generated on the FlexPendant, providing maintenance personnel with an unambiguous fault indication rather than a generic power fault.
• Wide voltage range compatibility: The 200–600 V AC rating accommodates both 200/220 V (Japan, some Asian markets) and 380/400/480/600 V (Europe, North America, China) supply voltages without hardware modification, simplifying global spare parts inventory management for multinational automotive OEMs.
• Inrush current management: The coordinated pre-charge sequence between the DSQC611 and the drive module capacitor banks limits peak inrush current to within the upstream circuit breaker’s instantaneous trip threshold, preventing nuisance tripping during production restarts — a common failure mode when non-OEM contactors with different closing velocity characteristics are substituted.
• Thermal derating headroom: The 55°C cabinet ambient rating provides adequate derating margin for most production environments. In foundry or press-tending applications where cabinet ambient temperatures approach this limit, the DSQC611’s thermal performance remains within specification when the IRC5 cabinet cooling filters are maintained on schedule — a direct link between preventive maintenance compliance and contactor service life.
• Full audit traceability: Each DSQC611 unit carries ABB’s original part marking (3HAC13389-2) on the module body, providing unambiguous identification for ISO 9001:2015 and IATF 16949 spare parts audits. This traceability is not available with aftermarket substitutes and is increasingly required by Tier 1 automotive suppliers under their supplier quality management programs.

Quality Assurance & Global Logistics

Every DSQC611 3HAC13389-2 unit dispatched from our Xiamen, China facility is an original ABB-manufactured component sourced through verified supply channels with documented chain-of-custody records. Upon receipt, each unit undergoes a structured incoming inspection protocol: visual examination of the module body and contact surfaces, label verification against the 3HAC13389-2 part number, and auxiliary contact continuity check. Units are stored in ESD-safe, climate-controlled warehousing at 20–25°C and 40–60% RH to prevent contact oxidation and insulation degradation during storage.

Outbound logistics are handled via DHL Express, FedEx International Priority, and UCP air freight, with typical transit times of 3–5 business days to Europe and North America, and 2–4 business days to Southeast Asia. Full export documentation is prepared for each shipment: commercial invoice, packing list, and HS code 8536.49 classification for customs clearance. For urgent production-down situations, same-day dispatch is available for orders confirmed before 14:00 CST. A 12-month functional warranty covers all units from date of shipment.
