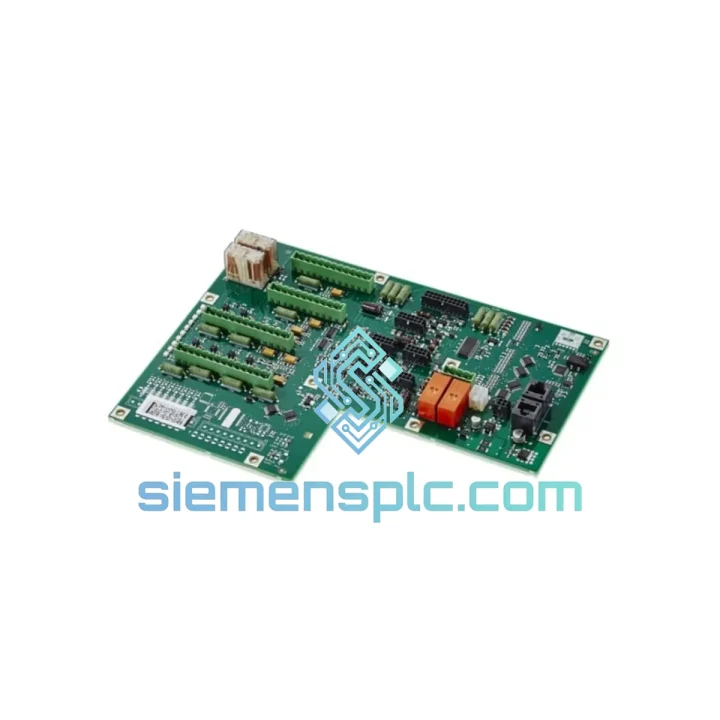

ABB DSQC643 3HAC024488-001 Operator Panel Board

ABB DSQC643 3HAC024488-001 — Stop the Clock on Your Downtime. Ship Today from Xiamen.

Every minute an IRC5 robot cell sits dark, your line is bleeding money. A failed operator panel board — DSQC643 — is one of the most common single-point failures that brings an entire ABB robot controller to a hard stop. No panel, no mode selection, no E-Stop acknowledgment, no production. We stock DSQC643 units in Xiamen and ship DHL/FedEx Express the same business day your order is confirmed. That is the only answer that matters when your maintenance team is standing in front of a dead cabinet.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field calls, these are the failure patterns that keep showing up with DSQC643:

Symptom 1 — E-Stop chain refuses to reset after button release. The DSQC643 routes both the local E-Stop mushroom head and the external safeguarding chain through its PCB relay contacts. When those contacts weld or the PCB trace burns, the safety PLC sees a permanent open circuit. FlexPendant throws 20230 — Emergency stop or 20231 — Emergency stop (panel) and the system will not enter Motors On regardless of how many times you cycle the E-Stop. Before condemning the board, verify the 24 VDC supply on X1 connector pin 1 and pin 2. If voltage is present and the error persists after a cold restart, the board is the culprit.

Symptom 2 — Mode selector switch unresponsive or stuck in Manual. The three-position key switch on the panel feeds directly into DSQC643. Oxidized contacts on the switch itself are common in humid foundry environments, but the board’s input optocouplers also fail after years of vibration. Check for 24 V signal on the mode selector input pins before swapping the full board — sometimes only the switch needs replacement. If the optocoupler is dead, the board must go.

Symptom 3 — Status LEDs dark or showing incorrect state. The LED driver circuit on DSQC643 is a low-priority failure — the robot may still run — but it masks real faults. Operators stop trusting the panel and start ignoring warnings. Replace before it causes a safety incident.

Replacement procedure (qualified personnel only):

1. Perform a full system backup via RobotStudio or FlexPendant before touching any hardware. DSQC643 does not store programs, but this is non-negotiable practice.
2. Set the controller to Manual mode, press E-Stop, then switch the main breaker to OFF. Lock out / tag out per your site LOTO procedure.
3. Open the IRC5 cabinet front door. DSQC643 is mounted on the inside of the door panel — four M4 screws and two connector harnesses.
4. Photograph the connector routing before disconnecting. The ribbon cable orientation is easy to reverse and will cause immediate fault on power-up.
5. Disconnect X1 (24 VDC power), X2 (E-Stop chain), and X3 (mode selector / LED) harnesses. Remove the four mounting screws.
6. Fit the replacement board. Torque M4 screws to 1.5 Nm. Reconnect harnesses — verify ribbon cable locking tabs click fully.
7. Remove LOTO, power up. The IRC5 should boot without panel-related faults. Perform a full E-Stop function test per ISO 10218-1 before returning the cell to production.
8. No address switches, no DIP switches, no firmware upload required. DSQC643 is purely hardware — plug-and-play within the IRC5 architecture.

Note on firmware: Unlike DSQC639 (MCU) or DSQC662 (Axis Computer), the DSQC643 carries no embedded firmware. There is no version matching concern. Any DSQC643 / 3HAC024488-001 unit fits any IRC5 cabinet revision from M2004 onward.

Reliability in Harsh Conditions

IRC5 controllers get installed in places that destroy electronics — automotive body shops with weld spatter and EMI bursts, foundries running 45 °C ambient with metal dust in the air, food processing lines that get hosed down every shift. The DSQC643 was designed for that environment, and the units we supply are verified to meet it.

Every board in our stock goes through a bench power-on test under load before it is shelved. We check the E-Stop relay contact resistance (must be below 0.5 Ω closed), the mode selector input signal levels, and the LED driver outputs. Units that show any sign of PCB delamination, corroded connector pins, or cracked solder joints under 10× magnification are rejected. We do not sell boards that we would not install ourselves on a live production line.

For high-vibration applications — press tending, forging, stamping — we recommend applying a thin bead of conformal coating to the replacement board’s connector solder joints before installation. This is not factory-standard but adds measurable resistance to vibration-induced micro-cracking in high-cycle environments. We can supply pre-coated units on request.

Global Express Logistics

Our warehouse is in Xiamen, Fujian — one of China’s primary export hubs with direct DHL and FedEx gateway access. Here is what the shipping timeline actually looks like:

• Order confirmed before 15:00 CST: Same-day packing and handover to DHL/FedEx courier.
• DHL Express Worldwide: Europe 2–3 business days, North America 3–4 business days, Southeast Asia 1–2 business days, Middle East 3–4 business days.
• FedEx International Priority: Available as alternative carrier — same transit windows, useful when DHL has capacity constraints at destination.
• Export documentation: Commercial invoice, packing list, and certificate of origin (China) prepared and included with every shipment. HS Code 8537.10 declared for customs clearance.
• Tracking: AWB number sent by email within 2 hours of carrier pickup. Real-time tracking link provided.
• Packaging: Anti-static bag, foam-lined inner box, double-wall outer carton. Passes ISTA 2A drop and vibration simulation.

If your plant is facing a production stoppage and you need the board on a specific date, contact us directly on WhatsApp before placing the order. We will confirm the exact cut-off time and carrier option that hits your deadline.
