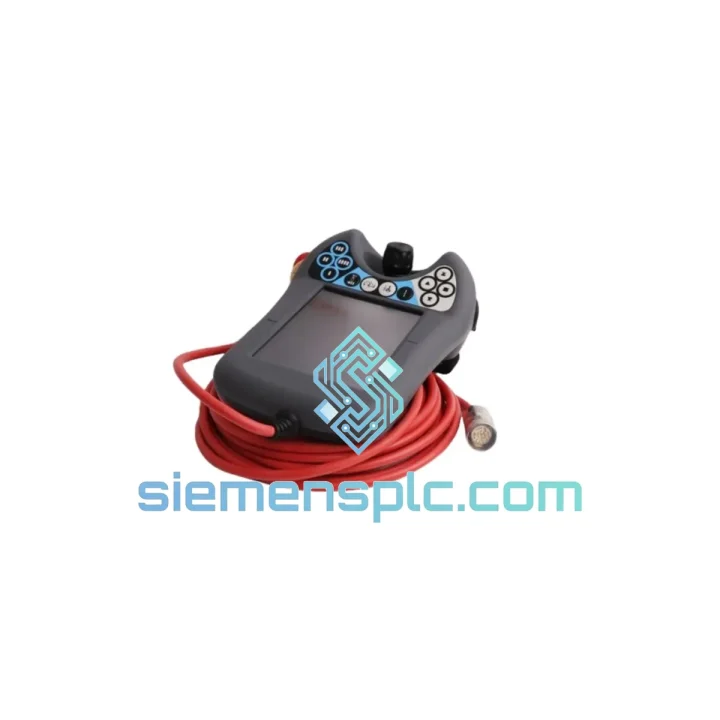

ABB DSQC679 3HAC028357-027 Robot Teach Pendant Display Module – IRC5 FlexPendant

ABB DSQC679 (3HAC028357-027) — IRC5 FlexPendant LCD & Resistive Touchscreen Assembly: Operator Interface Architecture for Industrial Robot Control

The ABB DSQC679, identified by part number 3HAC028357-027, is the complete display and human-machine interface (HMI) assembly integrated into the IRC5 FlexPendant — ABB’s primary handheld operator terminal for IRC5-generation robot controllers. Within the IRC5 control architecture, the FlexPendant functions as the sole real-time operator interface node: it receives controller state data over a dedicated USB 2.0 high-speed link (480 Mbit/s), renders the RobotWare graphical environment, and transmits operator inputs — including motion jogging commands, program execution controls, and safety acknowledgements — back to the IRC5 main computer (DSQC652 or DSQC662). The DSQC679 assembly encompasses the LCD panel, resistive digitizer layer, backlight driver board, and the integrated ribbon cable harness that connects to the FlexPendant motherboard. Failure of any sub-component within this assembly results in complete loss of local operator control, rendering the robot cell inoperable until the unit is replaced.

Unlike generic display assemblies, the 3HAC028357-027 is manufactured to ABB’s mechanical and electrical tolerances, ensuring that the digitizer’s touch coordinate mapping aligns precisely with the RobotWare UI grid without post-installation recalibration of the controller firmware. The resistive touch technology employed is intentional: it supports gloved-hand operation in environments where capacitive panels would be unreliable, including automotive paint shops, foundry floors, and food-grade processing areas where operators wear nitrile or leather gloves.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The DSQC679 display assembly operates within a layered hardware stack that separates rendering logic from safety-critical control logic — a deliberate architectural decision in the IRC5 design. The FlexPendant’s embedded processor handles all UI rendering and touch event processing locally, communicating with the IRC5 main computer exclusively over the USB link. This means the display assembly itself does not sit on the IRC5 safety bus (DeviceNet or ProfiSafe); it is a non-safety-rated peripheral whose failure mode is defined as a loss of operator interface, not a safety system fault. The IRC5 controller will continue executing its current program if the pendant is disconnected or fails, provided the operating mode is set to Automatic — a behavior that underscores the importance of understanding the pendant’s role as an operator interface node rather than a safety interlock node.

The resistive digitizer in the 3HAC028357-027 uses a 4-wire analog voltage-divider topology. When pressure is applied, the top conductive layer contacts the bottom layer, creating a voltage divider in both X and Y axes simultaneously. The analog voltages are sampled by an ADC on the FlexPendant motherboard and converted to pixel coordinates. This analog-to-digital conversion path is calibrated at the factory to the specific LCD panel dimensions; the 3HAC028357-027 assembly maintains this factory calibration because the LCD and digitizer are supplied as a matched pair. Substituting a non-OEM digitizer with a different active area or linearity profile would introduce systematic touch offset errors across the RobotWare UI, particularly at screen edges where the voltage gradient is most sensitive to dimensional tolerances.

The backlight driver circuit within the assembly is designed for stable luminance across the pendant’s operating temperature range. TFT LCD panels exhibit significant backlight efficiency variation with temperature — cold environments reduce LED forward voltage and can cause luminance undershoot; hot environments accelerate LED degradation. The driver circuit in the DSQC679 assembly incorporates thermal compensation to maintain consistent brightness, which is critical in environments where operators must read program status and alarm codes under variable ambient lighting and temperature conditions.

EMC performance of the assembly is governed by the FlexPendant enclosure’s shielding, but the internal ribbon cable routing within the DSQC679 assembly is designed to minimise radiated emissions from the high-frequency USB data path. The cable is routed away from the digitizer’s analog signal lines to prevent capacitive coupling that would introduce noise into the touch coordinate ADC path — a common failure mode in non-OEM replacement assemblies that use unshielded or incorrectly routed ribbon cables.

System Integration Benefits

• Zero-recalibration replacement: The matched LCD-digitizer pair maintains factory touch coordinate mapping, eliminating the need for controller-side calibration routines after installation and reducing maintenance downtime to the physical swap time only.
• Gloved-hand operability: Resistive touch technology functions with nitrile, latex, and leather gloves up to 2 mm thickness, maintaining full UI operability in PPE-mandatory environments including automotive paint shops, foundries, and food processing lines.
• Deterministic operator response: The USB 2.0 high-speed link between the pendant and IRC5 controller provides sufficient bandwidth for sub-10 ms UI update latency, ensuring that program state changes, alarm activations, and motion status are reflected on the display within one controller scan cycle.
• Broad controller compatibility: A single 3HAC028357-027 assembly is compatible across IRC5 Single Cabinet, Compact, and Panel Mounted variants running RobotWare 5.x and 6.x, simplifying spare parts inventory management for facilities operating mixed IRC5 fleets.
• Diagnostic transparency: The FlexPendant display is the primary surface for IRC5 event log access, I/O status monitoring, and axis position readout. Restoring display function directly restores the operator’s ability to perform structured fault diagnosis without connecting an external PC or service tool.
• IP54-rated operating environment: As part of the complete FlexPendant enclosure, the assembly is rated for dust-protected and splash-resistant operation, suitable for the majority of industrial robot cell environments without additional protective measures.
• Stable luminance across temperature range: The thermally compensated backlight driver maintains consistent display brightness from 0 °C to +45 °C, ensuring readability in both cold-start conditions and thermally loaded production environments.
• OEM mechanical fit: The assembly uses ABB-specified connector types and mounting geometry, ensuring correct seating of the ribbon cable connector and elimination of intermittent contact faults that are common with non-OEM assemblies using adapted connectors.
• Reduced mean time to repair (MTTR): The complete assembly design — LCD, digitizer, and backlight driver as a single replaceable unit — eliminates the need to diagnose which sub-component has failed, reducing MTTR from hours to under 30 minutes for a trained maintenance technician.
• Traceability for quality audits: OEM units carry ABB part number markings and batch traceability, supporting ISO 9001 and IATF 16949 maintenance record requirements in automotive and regulated manufacturing environments.

Quality Assurance & Global Logistics

Every DSQC679 (3HAC028357-027) unit dispatched from our Xiamen, China facility is sourced through verified ABB distribution channels and subjected to a structured incoming inspection protocol. Visual inspection covers the LCD panel surface for pixel defects, the digitizer layer for delamination or conductive coating damage, and the ribbon cable harness for connector pin integrity and insulation condition. Functional verification confirms uniform backlight illumination across the full panel area and touch response linearity across a 5×5 grid of test points. Units that do not meet ABB’s published acceptance criteria are quarantined and not dispatched.

Packaging for international transit uses anti-static foam inserts with a moisture-barrier outer bag, placed within a rigid corrugated carton rated for the assembly’s weight and fragility class. This packaging specification is designed to withstand the mechanical shock and vibration profiles of air freight handling, including the 1.2 m drop test per ISTA 2A. Express air freight via DHL Express, FedEx International Priority, and UPS Worldwide Express is available for urgent MRO requirements, with transit times of 3–7 business days to major industrial regions in Europe, North America, Southeast Asia, and the Middle East. A 12-month warranty covers manufacturing defects and premature failure under normal operating conditions, with advance replacement available for customers with confirmed compatibility documentation.
